3000W House Battery 5kw Lithium Ion Battery DOD 90% 6000 Cycles

Certification
China Huagong Langic Digital Energy Technology (Guangdong) Co., Ltd certification
Customer Reviews
good quality

—— Mike

I'm Online Chat Now

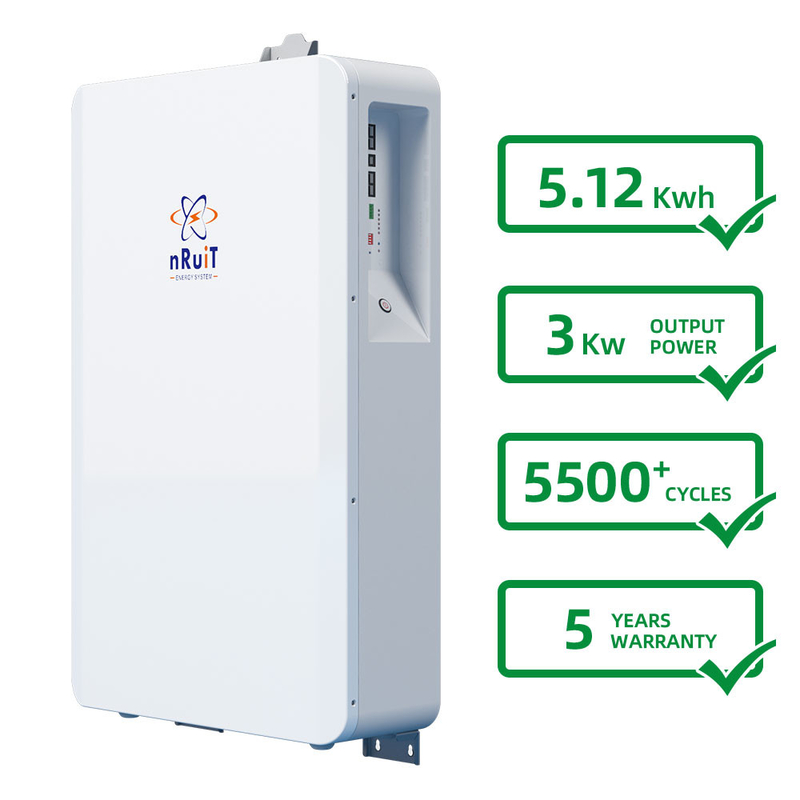

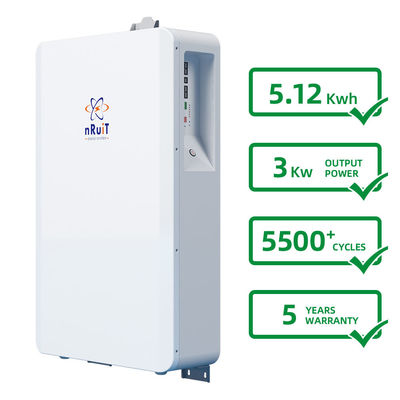

3000W House Battery 5kw Lithium Ion Battery DOD 90% 6000 Cycles

3000W House  Battery 5kw Lithium Ion Battery DOD 90% 6000 Cycles
3000W House  Battery 5kw Lithium Ion Battery DOD 90% 6000 Cycles

Large Image :  3000W House Battery 5kw Lithium Ion Battery DOD 90% 6000 Cycles

Product Details:
Place of Origin: Guangdong,China
Brand Name: nRuit
Certification: UN38.8/MSDS
Model Number: Power porter5kwh
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1.350.00/Unit
Packaging Details: wooden case
Delivery Time: 5-15 days
Payment Terms: T/T
Supply Ability: 1000 units per month

3000W House Battery 5kw Lithium Ion Battery DOD 90% 6000 Cycles

Description
Battery Type: Lithium Ion Battery Nominal Voltage: 51.2V
Warranty: 5 Years Protection: Smart BMS
Output Power: 3000W Application: Solar Energy Storage, Home Appliances
Capacity: 100AH Discharge Current: 90A
Weight: 49.5kg
High Light:

3000W house backup battery pack

,

6000 Cycles house backup battery pack

,

5kw lithium ion battery

House Use Backup Battery 5kwh Lithium Ion Solar Battery DOD 90% 6000+ Cycles





1. The main advantages of power porter 10kwh

①Higher effciency

②Higher energy density

③Easy installation method

④Using catl item lithium iron phosphate cell



Integrated R&D platform of basic materials, cells, BMS and overall system





2. Smart BMS management

  • Overcharge Protection Overdischarge Protection
  • Over voltage Protection Over current Protection
  • Short circuit Protection Reverse connection pertection
  • Temperature Control Double function protection



3. Basic parameters



Powerporter 5Kwh
Battery parameters
Nominal Energy 5.12Kwh
Nominal Voltage 51.2V
Capacity 100ah
Discharge Voltage 45~54V
Charge Voltage 51.5V~51V
Con.charging current 20A
Max.charging current 100A
Con.discharge current 65A
Max. discharge current 100A
Con.discharge DC power 3000w
Max.discharge DC power(use in parallel) 5000w
Operating temperature 0~45℃(Charge)/ -20~45°C(Discharge)
General temperature
IP Grade IP31
Weight 54Kg
Dimension(mm) 745x460x
Installation wall or floof mount
Scalability Up to 4 units
DOD 90%
Communication CAN2.0/RS485
Cycle Life 6000+
Warranty 5Years
UN38.3 IEC6269 CE
*When the temperature <0℃ or >45℃, the product performance is limited
