Product Details:
|
| Battery Type: | LifePO4 Battery | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Warranty: | 5 YEARS | Protection: | Smart BMS |
| Output Power: | 5000W | Application: | Solar Energy Storage, Home Appliances |
| Capacity: | 176AH | Discharge Current: | 90A |
| Weight: | 85kg | Life Span: | 5years |
| Highlight: | Powerporter Deep Cycle Solar Battery,9kwh Deep Cycle Solar Battery,deep cycle gel battery 200ah |
||

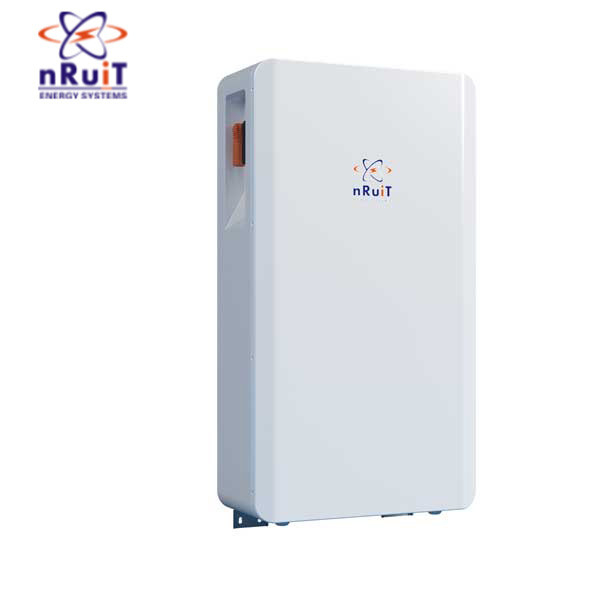

Premium Lithium Solar Batteries 9kwh 6000 Cycles Home Electric Powerporter
1. The main advantages of power porter 10kwh
It can adopt more renewable energy in power transmission and distribution in order to ensure the safe, stable, efficient and low-cost operation of the power grid.
2. Smart BMS management
Overcharge Protection Overdischarge Protection
Over voltage Protection Over current Protection
Short circuit Protection Reverse connection pertection
Temperature Control Double function protection
| Powerporter | 9Kwh |
| Battery parameters | |
| Nominal Voltage | 51.2V |
| Nominal Energy | 9Kwh |
| Capacity | 176ah |
| Discharge Voltage | 45~54V |
| Charge Voltage | 51.5V~51V |
| Con.charging current | 90A |
| Max.charging current | 150A |
| Con.discharge current | 90A |
| Max. discharge current | 150A |
| Con.discharge DC power | 5Kw |
| Max.discharge DC power(use in parallel) | 10Kw |
| Operating temperature | 0~45℃(Charge)/ -20~45°C(Discharge) |
| General temperature | |
| IP Grade | IP31 |
| Weight | 85Kg |
| Dimension(mm) | 830x460x200 |
| Installation | wall or floof mount |
| Scalability | Up to 4 units |
| DOD | 90% |
| Communication | CAN2.0/RS485 |
| Cycle Life | 6000+ |
| Warranty | 5Years |
| UN38.3 IEC6269 CE | |
| *When the temperature <0℃ or >45℃, the product function is restricted. | |
