Product Details:
|
| Product Name: | Off-grid Solar System 24kwh | Battery Capacity: | 480Ah |
|---|---|---|---|
| Load Power: | 15KW | System Type: | Off-grid Solar PV System |
| Application: | Solar Power System | Function: | Provide Electrical Power |
| Certificate: | MSDS/UN38.3 | Protection: | BMS |
| Waranty: | 5 Years | Life Span: | 10 Years |
| High Light: | BMS Household Solar System,24kwh Household Solar System,480Ah solar power system for home |
||

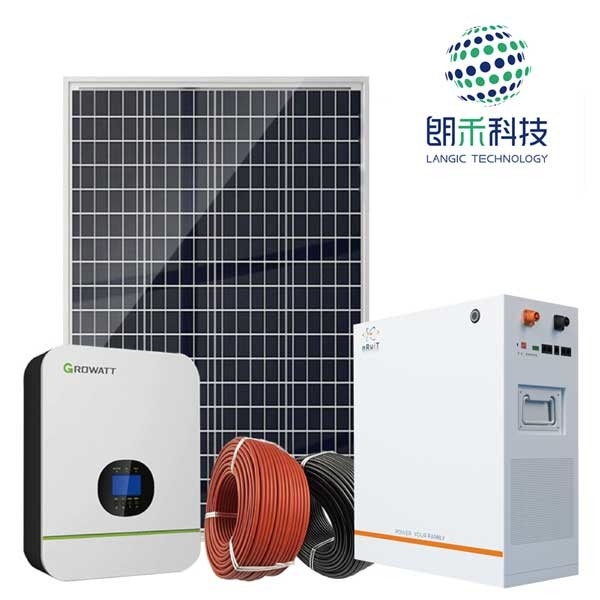

Solar Off Grid Systems Energy Storage System 24kwh A Set For Home Use

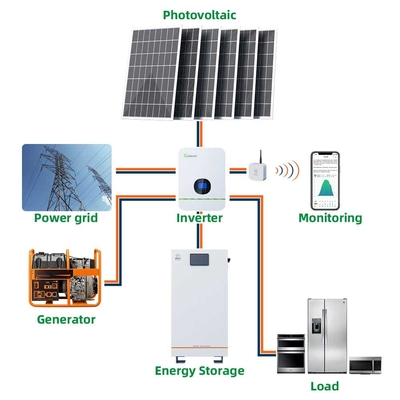

Home photovoltaic energy power system is mainly applicable to the cases of insufficient power supply,time-of-use electricity, no electricity area and so on.
|
Solar panel : JT400w-24M |
|
|
Pmax |
400w |
|
Vmp |
38.23V |
|
Imp |
8.65A |
|
Size |
1950x990x40mm |
|
Weight |
22.86Kg |
|
Cell Type |
Mono 156mm x 156mm |
|
Cell Arrangement |
72 cell in series |
|
Battery : Powerporter 24kwh |
|
|
Nominal Energy |
24.0Kwh |
|
Nominal Voltage |
51.2V |
|
Capacity |
480Ah |
|
Size |
1246x748x250 mm |
|
Weight |
230Kg |
|
Battery cell |
Lithium ion battery cell (CATL ) |
|
Cycle life |
6000+ (Promise) |
|
Installation |
Wall or floor mount |
|
Inverter : Growatt 5000TL HVM |
|
|
Battery voltage |
48 VDC |
|
Rated power |
5000W |
|
Output voltage range |
230VAC±5%@50/60Hz |
|
Mppt voltage range |
30VDC~80VDC 60VDC~115VDC |
|
Size |
130 x 350 x 455 mm |
|
Weight |
14.5kg |
|
Combiner box |
|
|
PV Fuse |
|
|
PV Cirrcuit Breaker |
|
|
PV SPD |
Surge Protective Device |
|
Genset output |
|
|
AC SPD |
|
|
ATS |
Automatic Transfer Switch |
|
RCBO |
Residual current circuit breaker with over current protection |
|
Inverter Output |
|
|
PV component |
|
|
Kabel DC & MC4 Konektor |
|
|
PV Cirrcuit Breaker |
|
|
Palang Bagian |
4mm2-6mm2-Opsional |
|
Nilai Tegangan |
600VDC(UL)/1000VDC(TUV) |
|
PV Shelf Material |
Al 6005-T5 |
| ESS-BT24-PV5-INV5 | ESS-BT24-PV10-INV10 | ESS-BT24-PV15-INV15 | |
|
Battery: powerporter 12kwh |
2 unit 12kwh / 48V / 480ah |
2 unit 12kwh / 48V / 480ah |
2 unit 12kwh / 48V / 480ah |
|
Solar panel: JT330w-24M |
12pcs (5kw) 400w/pcs |
24 pcs (10kw) 400w/pcs |
36 pcs (15kw) 400w/pcs |
|
Inverter: Growatt 5000TL |
1 unit Growatt 5000TL-HVM |
2 unit Growatt 5000TL-HVM |
3 unit Growatt 5000TL-HVM |
| System max. AC output power | 5kw | 10kw | 15kw |
| Combiner box | 1 set | 1 set | 1 set |
| Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters |
| PV component | 1 set | 1 set | 1 set |
| Contact customer service and support customization | |||
