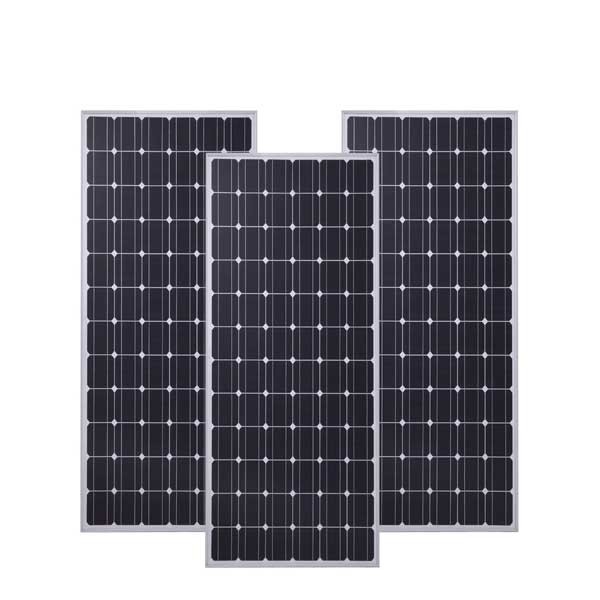

Lightweight 400W Solar Panel 20.2% Bi-Facial Mono DC1500W

Lightweight 400W Solar Panel 20.2% Bi-Facial Mono DC1500W
Lightweight 400W Solar Panel 20.2% Bi-Facial Mono DC1500W

Large Image :  Lightweight 400W Solar Panel 20.2% Bi-Facial Mono DC1500W

Product Details:
Place of Origin: Guangdong,China
Brand Name: FUSOLI
Certification: ISO/TUV/CE/UL/IEC/CQC
Model Number: JT400-72M
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.25/W
Packaging Details: Carton packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 10000 pieces per month

Lightweight 400W Solar Panel 20.2% Bi-Facial Mono DC1500W

Description
Product Name: 400W Bi-Facial Mono Solar Panel Module Efficiency: 20.2%
Application: Solar Power Supply Warranty: 12Years
Type: PERC Max. System: DC1500W
Max. Voltage: 41.60V Max.power: 300W
Weightight: 21kg
High Light:

Bi Facial 400W Solar Panel

,

20.2% 400W Solar Panel

,

DC1500W lightweight solar panels

Bi-Facial Mono 400W Solar Panel



1. On Company qualifications
With more than 10000 square meters and large production equipment, we have successfully obtained many honors such as CQC certificate of National Electrical Applicance and ISO 9001 international quality system certificate. Ans we are excellent and honest enterprise in solar PV engineering and 3A credit in China.


2. Production Advantages
① Multi busbar technology

With better light utilization and current collection capabilities, it can effectively improve power output and reliability

② Adaptability to harsh environments
Have passed salt spray and high ammonia corrosion tests by the
 third-party organization

③ Better resistance to hot spots
By optimizing the current design and working condition
 current, a better temperature coefficient and resistance to hot spots can be obtained

④ Load capacity
The whole component has been passed the certification of wind
 load of 2400pa and snow load of 5400pa

⑤ Anti-PID guarantee
Minimize the attenuation probability caused by PID phenomenon through battery perduction technologyoptimozation and material contorol
⑥ Industry-leading linear warranty
12 years of process material warranty; 25 years of line property



3. Main advantages of Products

  • Excellent product performance
  • High power, high power generation, high reliability
  • Wide application scenarios

4. Chief advantages of bi-facial solar panels
 The back side can also receive scattered and reflected light from the environment for power generation to achieve a higher power generation efficiency



5. Multi-energy complementary integrated solutions
Taking PV panels as the main power source, we can add a integrated complementary power supply system composed of wind, water, fire and other power sources, providing integrated solutions that complement various energy sources such as wind, water, and pumped storage, and committed to more reliable green power  and stable supply



6. Electrical Performance Parameters



Electrical performance parameters丨STC

Model Type JT400-72M

Power output

400W

Max power operating voltage

41.6V

Max power operating current

9.74A

Open circuit voltage

49.86V

Short circuit current

10.39A

Component efficiency

20.2%

Power tolerance

0~+5w
Standard test conditions: (air quality AM1.5, irradiance 1000W/m , battery temperature 25℃)
measured value

Electrical performance parameters|NMOT

Maximum power

302W

Max. power operating voltage

38.56V

Max. power operating current

7.81A

Open circuit voltage

46.41V

Short circuit current

8.25A

Structural performance

*NMOT test conditions: irradiance 800W/m, battery temperature 20℃, wind speed 1m/s

Solar cell

720mono

Cell arrangement

72 pcs(6x12)

Component size

1975×996×40mm
