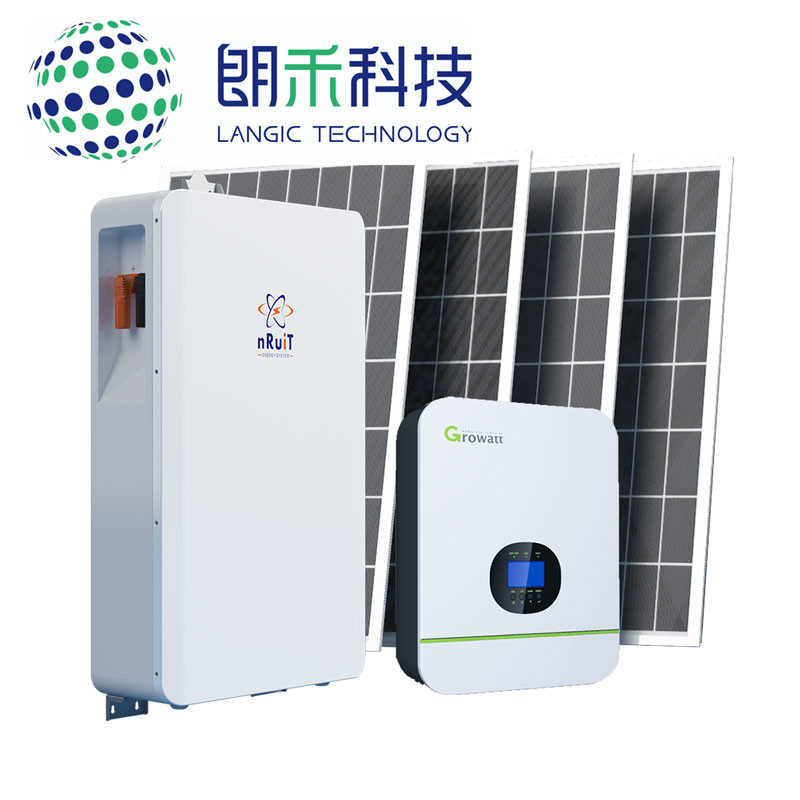

15kw Solar Rooftop Off Grid Solar System Kit Powerporter 10kwh 200Ah

15kw Solar Rooftop Off Grid Solar System Kit Powerporter 10kwh 200Ah
15kw Solar Rooftop Off Grid Solar System Kit Powerporter 10kwh 200Ah

Large Image :  15kw Solar Rooftop Off Grid Solar System Kit Powerporter 10kwh 200Ah

Product Details:
Place of Origin: Guangdong,China
Brand Name: Growatt/nRuiT/Fusoli
Certification: MSDS/UN38.3/CE
Model Number: ESS--12kwh
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2,260.00 - $8,766.40/Set
Packaging Details: wooden case
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 2000 units per month

15kw Solar Rooftop Off Grid Solar System Kit Powerporter 10kwh 200Ah

Description
Product Name: Off-Grid Solar System 12-kw Type: Off-grid Solar System AC Output
Function: Electric Power-Supply Load-Power: 10-kw
Inverter Length: 130mm Inverter Width: 350mm
Inverter Height: 455mm Work Time: 24hrs
Battery Cycle: 5500+ Mounting Type: Ground Mounting, Roof Mounting, Carport Mounting
High Light:

10kwh off grid solar system kit

,

200Ah off grid solar system kit

,

15kw solar rooftop off grid system

Solar Off Grid System Solar System Electricity Generation 12-kw A Set For Home





Solar off grid system is a photovoltaic system connected to the battery through the inverter, and all the electricity generated is used or stored by itself.



Solar off grid system suitable for areas without grid connection or unstable grid connection power. The generated DC power can be stored in the battery pack to provide power at night or on cloudy or rainy days.



Solar system electricity generation can not solve all power consumption problems. In case of multiple continuous rainy days, the only way to do is save using your power.





Working Principles of The Whole System

1. During the day

  • The sun provides energy to solar system
  • Solar system provides electricity for the load by inverters (inver DC to AC)
  • Excess electricity is stored in ESS(energy storage system)
  • When the load power is high, ESS operates with PV system to provide electricity
  • ESS can also be charged by grid if possible

2. In the evening

  •   ESS provides electricity

3. Energy storge plays an integral role in the solar off grid system.



  ESS-BT10-PV5-INV5 ESS-BT10-PV10-INV10 ESS-BT10-PV10-INV10 ESS-BT10-PV15-INV15

Battery:

powerporter 9kwh
1 unit
10kwh / 48V/ / 200ah
2 unit
20kwh / 48V/ / 400ah
3 unit
30kwh / 48V/ / 600ah
3 unit
30kwh / 48V/ / 600ah

Solar panel:

JT330w-24M
12pcs (5kw)
400w/pcs
12 pcs (10kw)
400w/pcs
25 pcs (10kw)
400w/pcs
25 pcs (15kw)
400w/pcs

Inverter:

Growatt 3000~5000TL
1 unit
Growatt 5000TL-HVM
2 unit
Growatt 5000TL-HVM
2 unit
Growatt 5000TL-HVM
3 unit
Growatt 5000TL-HVM
System max. AC output power 5kw 10kw 10kw 15kw
Combiner box 1 set 1 set 1 set 1 set
Kabel DC 4mm2 200 meters 200 meters 200 meters 300 meters
PV component 1 set 1 set 1 set 1 set
Contact customer service and support customization



Solar panel : JT400w-24M
Pmax 400w
Vmp 38.23V
Imp 8.65A
Size 1950x990x40mm
Weight 22.86Kg
Cell Type Mono 156mm x 156mm
Cell Arrangement 72 cell in series





Battery : Powerporter 10kwh
Nominal Energy 10.2Kwh
Nominal Voltage 51.2V
Capacity 200Ah
Size 830x460x200 mm
Weight 94.17Kg
Battery cell Lithium ion battery cell (CATL )
Cycle life 6000+ (Promise)
Installation Wall or floor mount



Inverter : Growatt 3000~5000TL HVM
Battery voltage 48 VDC
Rated power 3000~5000W
Output voltage range 230VAC±5%@50/60Hz
Mppt voltage range 30VDC~80VDC
60VDC~115VDC
Size 130 x 350 x 455 mm
Weight 8Kg/14.5kg





Combiner box
PV Fuse
PV Cirrcuit Breaker
PV SPD Surge Protective Device
Genset output
AC SPD
ATS Automatic Transfer Switch
RCBO Residual current circuit breaker with over current protection
Inverter Output



PV component
Kabel DC & MC4 Konektor
PV Cirrcuit Breaker
Palang Bagian 4mm2-6mm2-Opsional
Nilai Tegangan 600VDC(UL)/1000VDC(TUV)
PV Shelf Material Al 6005-T5

15kw Solar Rooftop Off Grid Solar System Kit Powerporter 10kwh 200Ah 015kw Solar Rooftop Off Grid Solar System Kit Powerporter 10kwh 200Ah 115kw Solar Rooftop Off Grid Solar System Kit Powerporter 10kwh 200Ah 2
