Product Details:
|
| Product Name: | Off Grid Solar Power System 5kw | Inverter: | Growatt 5000TL |
|---|---|---|---|
| Application: | Solar System, Home Use | Function: | Provide Electrical Power |
| Load Power: | 5 KWatt | Pre-sales Project Design: | Yes |
| Energy Storage: | NRuiT Powerporter 5-kw | Battery Capacity: | 100 Ah |
| Battery Type: | LiFePO4 | Battery Cell Brand: | CATL |
| Highlight: | LiFePO4 Solar Electric System,400w Solar Electric System,5Kw household battery storage system |
||

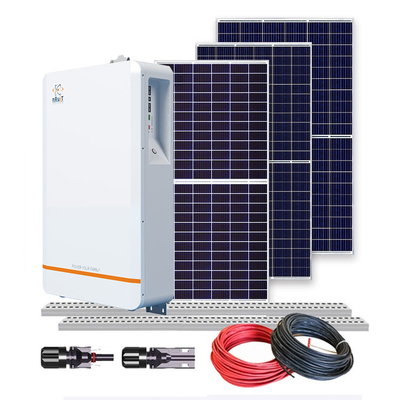

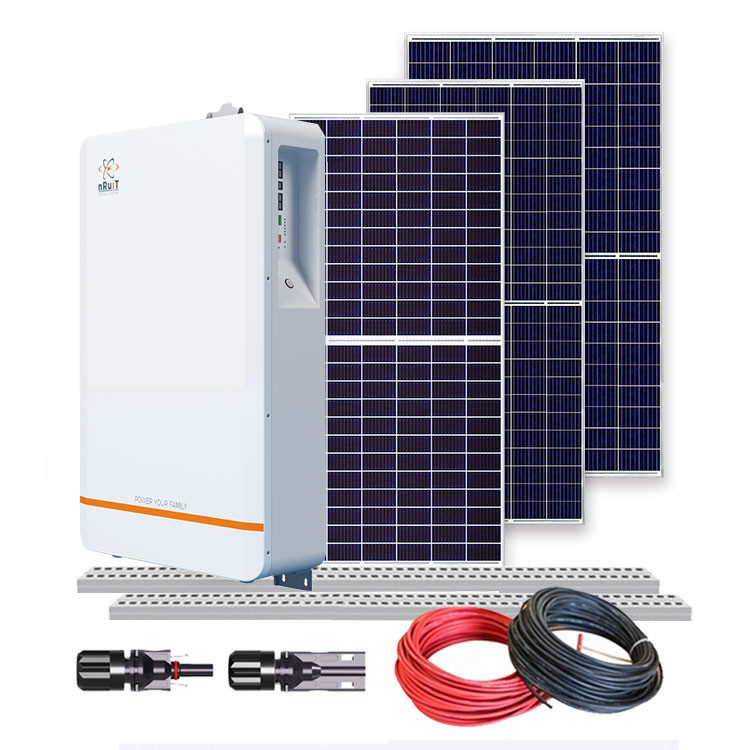

Solar Energy Systems Solar Off-Grid System 5Kw A Set For HouseHold
Solar off-grid system is easy to install and use. One family, one village and one area can be used by individuals and collectives. Moreover, the power supply area is small, clear and easy to maintain.
Energy Storage System is made up of Growatt inverter+nRuiT battery+PV panels+software management which is suitable for household energy storage, farms, and other applications.
| ESS-BT10-PV5-INV5 | ESS-BT10-PV10-INV10 | ESS-BT10-PV10-INV10 | ESS-BT10-PV15-INV15 | |
|
Battery: powerporter 9kwh
|
1 unit
10kwh / 48V/ / 200ah
|
2 unit
20kwh / 48V/ / 400ah
|
3 unit 30kwh / 48V/ / 600ah |
3 unit 30kwh / 48V/ / 600ah |
|
Solar panel: JT330w-24M
|
12pcs (5kw)
400w/pcs
|
12 pcs (10kw)
400w/pcs
|
25 pcs (10kw) 400w/pcs |
25 pcs (15kw) 400w/pcs |
|
Inverter: Growatt 3000~5000TL
|
1 unit
Growatt 5000TL-HVM
|
2 unit
Growatt 5000TL-HVM
|
2 unit Growatt 5000TL-HVM |
3 unit Growatt 5000TL-HVM |
| System max. AC output power | 5kw | 10kw | 10kw | 15kw |
| Combiner box | 1 set | 1 set | 1 set | 1 set |
| Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters | 300 meters |
| PV component | 1 set | 1 set | 1 set | 1 set |
|
Contact customer service and support customization |
||||
| Solar panel : JT400w-24M | |
| Pmax | 400w |
| Vmp | 38.23V |
| Imp | 8.65A |
| Size | 1950x990x40mm |
| Weight | 22.86Kg |
| Cell Type | Mono 156mm x 156mm |
| Cell Arrangement | 72 cell in series |
| Battery : Powerporter 10kwh | |
| Nominal Energy | 10.2Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 200Ah |
| Size | 830x460x200 mm |
| Weight | 94.17Kg |
| Battery cell | Lithium ion battery cell (CATL ) |
| Cycle life | 6000+ (Promise) |
| Installation | Wall or floor mount |
| Inverter : Growatt 3000~5000TL HVM | |
| Battery voltage | 48 VDC |
| Rated power | 3000~5000W |
| Output voltage range | 230VAC±5%@50/60Hz |
| Mppt voltage range | 30VDC~80VDC
60VDC~115VDC
|
| Size | 130 x 350 x 455 mm |
| Weight | 8Kg/14.5kg |
| Combiner box | |
| PV Fuse | |
| PV Cirrcuit Breaker | |
| PV SPD | Surge Protective Device |
| Genset output | |
| AC SPD | |
| ATS | Automatic Transfer Switch |
| RCBO | Residual current circuit breaker with over current protection |
| Inverter Output | |
| PV component | |
| Kabel DC & MC4 Konektor | |
| PV Cirrcuit Breaker | |
| Palang Bagian | 4mm2-6mm2-Opsional |
| Nilai Tegangan | 600VDC(UL)/1000VDC(TUV) |
| PV Shelf Material | Al 6005-T5 |
