Product Details:
Place of Origin: Guangdong,China
Brand Name: Growatt/Fusoli/nRuiT
Certification: IEC/SIO/SAAR/MSDS/UN38.3
Model Number: ESS-BT9
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3,285.00 - $7,900.00/Set
Packaging Details: wooden case
Delivery Time: 5-8day
Payment Terms: T/T
Supply Ability: 1000/

Home 5kw Solar Off Grid System 86Kg NRuiT Powerporter

Description
Product Name: 9Kw Off Grid Electrical System Application: Industrial, Home, Commercial
Energy Storage: NRuiT Powerporter 9-kw Rated Power: 5000 W
Mounting Type: Carport Mounting, Ground Mounting, Roof Mounting Battery Length: 830 Mm
Battery Width: 460 Mm Battery Height: 200 Mm
Solar Panel: Mono Silicon 400 W Inverter Weight: 13.4 Kg
High Light:

51.2V Solar Off Grid System

,

86Kg Solar Off Grid System

,

5kw off grid solar system

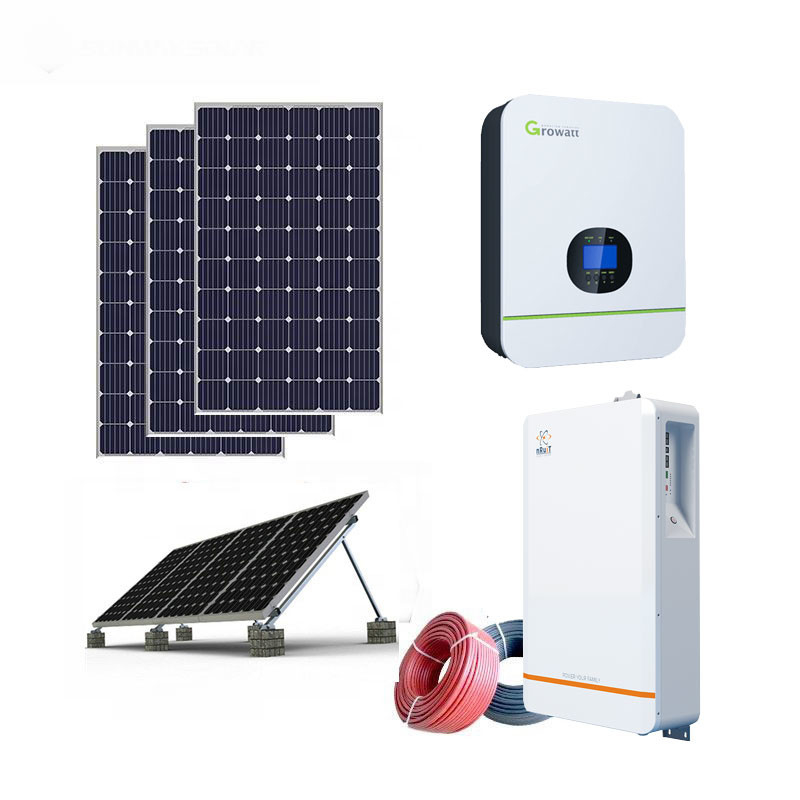

Solar Electric System Solar Off Grid Systems A set Of 9kw For Home





Solar off grid system is a power generation system that operates independently without relying on the power grid. It makes full use of the widespread characteristics of solar energy, supplies power to the load through the inverter, charges the battery pack at the same time, avoids the site constraints of centralized construction, and has the characteristics of flexible construction.




Battery : Powerporter 9kwh
Nominal Energy 9Kwh
Nominal Voltage 51.2V
Capacity 176Ah
Size 830x460x200 mm
Weight 86Kg
Battery cell Lithium ion battery cell (CATL )
Cycle life 6000+ (Promise)
Installation Wall or floor mount



Inverter : Growatt 5000TL HVM
Battery voltage 48 VDC
Rated power 5000W
Output voltage range 230VAC±5%@50/60Hz
Mppt voltage range
60VDC~115VDC
Size 350 x 455 x 130 mm
Weight 11.5kg



Solar panel : JT400w-24M
Pmax 400w
Vmp 38.23V
Imp 8.65A
Size 1950x990x40mm
Weight 22.86Kg
Cell Type Mono 156mm x 156mm
Cell Arrangement 72 cell in series



PV component
Kabel DC & MC4 Konektor
PV Cirrcuit Breaker
Palang Bagian 4mm2-6mm2-Opsional
Nilai Tegangan 600VDC(UL)/1000VDC(TUV)
PV Shelf Material Al 6005-T5



Combiner box
PV Fuse
PV Cirrcuit Breaker
PV SPD Surge Protective Device
Genset output
AC SPD
ATS Automatic Transfer Switch
RCBO Residual current circuit breaker with over current protection
Inverter Output



  ESS-BT9-PV5-INV5 ESS-BT9-PV10-INV10 ESS-BT9-PV10-INV10 ESS-BT9-PV15-INV15

Battery:

powerporter 9kwh
1 unit
9kwh / 48V /  176ah
2 unit
18kwh / 48V /  352ah
2 unit
18kwh / 48V / 352ah
2 unit
18kwh / 48V / 352ah

Solar panel:

JT330w-24M
12pcs (5kw)
400w/pcs
12 pcs (10kw)
400w/pcs
25 pcs (10kw)
400w/pcs
25 pcs (15kw)
400w/pcs

Inverter:

Growatt 5000TL
1 unit
Growatt 5000TL-HVM
2 unit
Growatt 5000TL-HVM
2 unit
Growatt 5000TL-HVM
3 unit
Growatt 5000TL-HVM
System max. AC output power 5kw 10kw 10kw 15kw
Combiner box 1 set 1 set 1 set 1 set
Kabel DC 4mm2 200 meters 200 meters 200 meters 300 meters
PV component 1 set 1 set 1 set 1 set
Contact customer service and support customization
