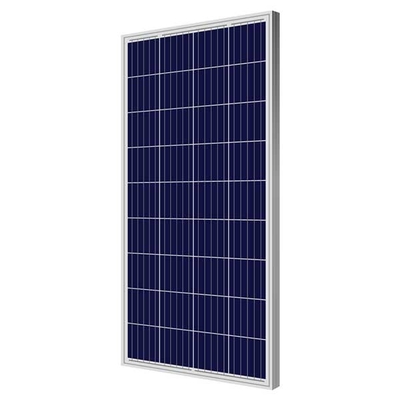

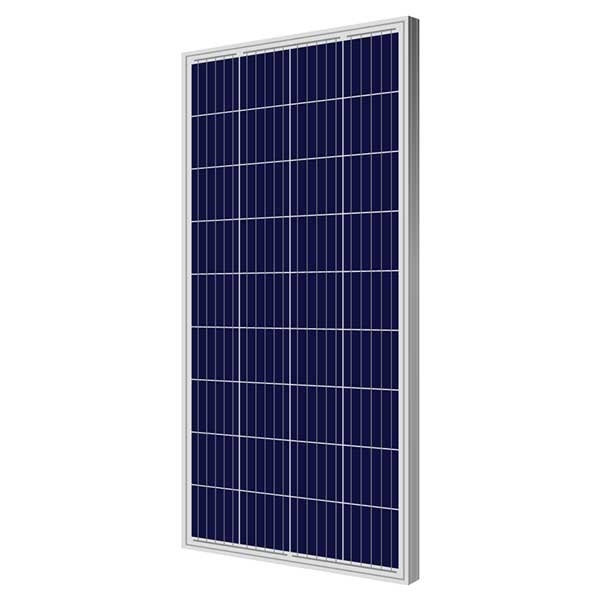

310w 320w 330w 340w Mono Cell Solar Panel Backup Power

310w 320w 330w 340w Mono Cell Solar Panel Backup Power
310w 320w 330w 340w Mono Cell Solar Panel Backup Power

Large Image :  310w 320w 330w 340w Mono Cell Solar Panel Backup Power

Product Details:
Place of Origin: Guangdong,China
Brand Name: FUSOLI
Certification: CE/IEC/ISO/SAAR/PIB/CEC
Model Number: JT305 24M-340 24M
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.25/W
Packaging Details: Carton packing
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 13000 pieces per month

310w 320w 330w 340w Mono Cell Solar Panel Backup Power

Description
Product Name: Monn Cell Solar Panel Brand Name: FUSOLI
Cell Efficiency: 20.5% Application: Solar Power Backup
Process Material Warranty: 12 Years Max. System Voltage: DC 1000W
Max. Voltage: 44.78 V Max.power: 305W-340W
Weight: 22.86Kg Module Effiency: 18.6%
High Light:

320w Mono Cell Solar Panel

,

330w Mono Cell Solar Panel

,

340w Solar Panel

solaredge monitoring Mono Cell Solar panel 305w 310w 320w 330w 340w high power



1. On production qualifications
With more than 10000 square meters and good sustainable equipments, we have achieved honors on CQC certifications of National Electrical Applicance, ISO 9001 international quality system certificate, which helps us to be an excellent enterprise in solar  engineering and 3A credit in China.




2. Dominant Advantages on equipment


① Multi busbar technology

With better light utilization and current collection capabilities, it can greatly maximum the power output and reliability



② Adaptability to harsh environments
Passed kinds of tests on salt spray and high ammonia corrosion by the
 third-party authorized organization in China



③ Better resistance to hot spots
By optimizing the design on current condition
, a better temperature coefficient and resistance to hot spots can be realized



④ Load capacity
The whole component has been passed the tests on wind
 load of 2400pa and snow load of 5400pa and has got the related certifications



⑤ Anti-PID guarantee
Have achieved the minimization of  the attenuation probability caused by PID phenomenon by battery perduction optimozation technology and material contorol



⑥ Industry-leading linear warranty
Can ensure 12 years process material warranty and 25 years Line property



3. Solutions on one-stop multi-scenario

we have the leading professional full-process management system to provide environmentally friendly multi-scenario solutions by project consulting, design, installation, procurement, debugging, operation and maintenance



4. High-efficiency power station delivery

By comprehensive comparison of simulation tools and solutions, the advantages of our products are continuously amplified, and the efficiency of the power station is continuously improved



5.project cases
Relying on industry-leading product quality, standardized technical team and standardized design system, our household solutions bring considerable economic benefits while giving environmental protection and technology support



6. Electrical Specifications

ELECTRICAL SPECIFICATIONS
Model Type JT305-24M JT310-24M JT320-24M JT330-24M JT340-24M
Nominal Maximum Power(Pmax) 305W 310W 320W 330W 340W
Optimum Operating Vo;tage(Vmp) 37.72V 37.80V 38.10V 38.23V 38.59V
Optimum Operating Current(Imp) 8.09A 8.20A 8.40A 8.64A 8.82A
Open Circuit Voltage(Voc) 44.78V 44.63V 45.37V 45.50V 46.22V
Short Circuit Current(Isc) 8.66A 8.70A 8.95A 9.19A 9.33A
Module Effciency 15.72% 15.98% 16.58% 17.10% 17.62%
Cell Effciency 17.93% 18.22% 18.60% 18.80% 19.40%
Power Tolerance 0 to +3%
Maximum Sytem Voltage DC 1000V
Operating Temperature -40℃~+85℃
Maximum Series Fuse Rating 20A
MECHANICAL DATA
Cell Type mono 156mmx156mm
Cell Arrangement 72 cells in series
Dimensions 1950x990x40mm
Weight 22.86kg(approx)
Frame Cover 3.2mm temper glass
Frame Material Anodized aluminium alloy
J-Box IP67,3 diodes
Cable 4mm(IEC) / 12AWG (UL),1000mm(650mm is optional)
Connectors MC4 or MC4 compatible
TEMPERATURE CHARACTERISTICS
Temperature Coefficient(Pmax) -0.420% / ℃
Temperature Coefficient(Voc) -0.346%/ ℃
Temperature Coefficient(Isc) 0.065%/ ℃
Norminal Operating Cell Temperature 45.3±2℃
