Product Details:
|
| Product Name: | 400W Bifacial Mono Half-Cut Solar Panel | Module Efficiency: | 19.58% |
|---|---|---|---|
| Application: | Solar Power System | Process Material Warranty Warranty: | 12Years |
| Maximum System Voltage: | DC1000W | Open Circuit Voltage: | 48.3V |
| Max.power: | 400W | Weight: | 21.50kg |
| High Light: | 10.02A Monocrystalline Solar Panels,DC1000W Monocrystalline Solar Panels,48.3V high voltage solar panel |
||

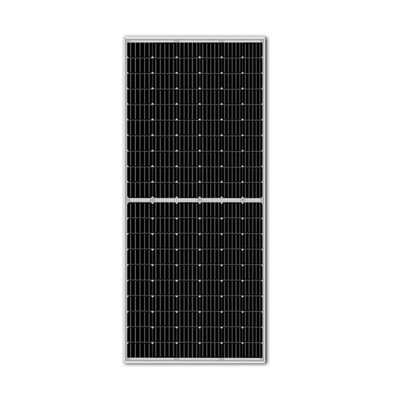

Bi-Facial Mono Half-Cut 400W Solar Panel
1. On Company qualifications
With more than 10000 square meters and large production equipment, we have successfully obtained many honors such as CQC certificates on National Electrical Applicance and ISO 9001 international quality system. And we are excellent company on solar PV engineering and 3A credit in China.
2. Dominant Advantages on Products
① Multi busbar technology
② Adaptability to harsh environments
Have passed salt spray and high ammonia corrosion tests by the third-party authorization organization
③ Better resistance to hot spots
By optimizing the current design and working condition current, a better temperature coefficient and resistance to hot spots can be obtained
④ Load capacity
The whole component has been passed the tests on wind load of 2400pa and snow load of 5400pa
⑤ Anti-PID guarantee
Can Minimize the attenuation probability caused by PID phenomenon through battery perduction technology optimozation and material contorol
⑥ Industry-leading linear warranty
Can ensure12 years process material warranty and 25 years Line property
3. The core principle of the company
4. The advantages of bi-facial solar panels
5. Core advantages of Products
|
Electrical performance parameters丨STC |
|
| Model Type | JT400-72M |
|
Power output |
400W |
|
Max power operating voltage |
48.3V |
|
Max power operating current |
10.02A |
|
Open circuit voltage |
39.40V |
|
Short circuit current |
9.65A |
|
Component efficiency |
19.58% |
|
Power tolerance |
±3% |
|
Maximum system Voltage
|
DC 1000W |
|
Maximum series fuse rating
|
20A |
|
Standard test conditions
|
test conditions
Irradiance 1000W/㎡, battery temperature 25℃, spectrum AM1.5G
|
|
Temperature characteristics |
|
|
Maximum power temperature coefficient |
-0.36 %/℃ |
|
Open circuit voltage temperature coefficient |
-0.28 %/℃ |
|
Short-circuit current temperature coefficient |
+0.05 %/℃ |
|
Operating temperature |
-40～+85 ℃ |
|
Normal working cell temperature |
45.0±2℃
|
|
Mechanical specifications |
|
|
Solar cell |
mono 79.38 x 158.75 mm(144 pieces)
|
|
output cable |
4.0mm² ,portrait:255mm(+)/355mm(-);landscape:1200mm |
|
Component size |
2005x 996 x 40 mm |
