Product Details:
|
| Product Name: | Growatt SPF5000TL HVP | Certificates: | CE ISO SAA TUV |
|---|---|---|---|
| Output Frequency: | 50/60hz | Application: | Off-grid Solar System |
| Maximum Efficiency: | 93% | Waveform: | Pure Sine Wave |
| Maximum PV Power: | 60VDC ~ 115VDC | Warranty: | 5 Years |
| Weight: | 14kg | AC Voltage Regulation: | 230VAC+-5% |
| High Light: | 115VDC Hybrid Solar Inverter,5kva hybrid solar inverter,SPF5000TL HVP |
||

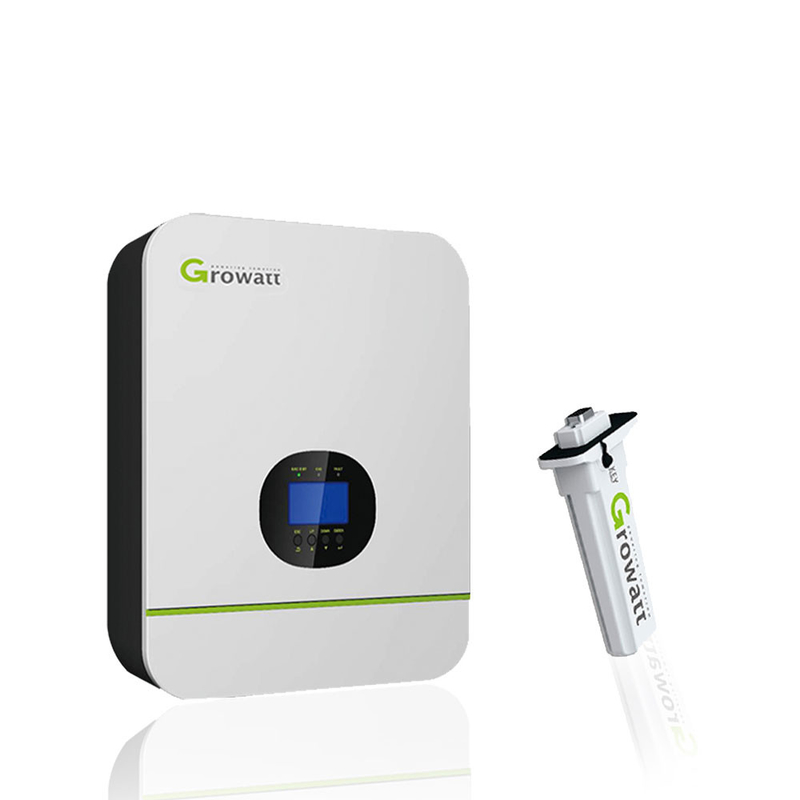

Growatt inverter Hybrid Solar Inverter SPF5000TL HVP
1. Chief Advantages
2. Basic Parameters
|
DATASHEET
|
SPF 5000TL HVM
|
|
|
Battery voltage
|
48VDC
|
|
|
INVERTER OUTPUT
|
||
|
RATED POWER
|
5000VA/ 5000W
|
|
|
Parallel Capability
|
Yes 6 units
|
|
|
AC Voltage Regulation
(Battery Mode) |
230VAC ± 5%
@ 50/60Hz |
|
|
Surge Power
|
10000VA
|
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10 ms (For Personal Computers); 20 ms (For Home Appliances)
|
|
|
SOLAR CHARGER
|
||
|
Maximum PV Array Power
|
4500W
|
|
|
MPPT Range @ Operating Voltage
|
60VDC ~115VDC
|
|
|
Maximum PV Array Open
Circuit Voltage |
145VDC
|
|
|
Maximum Solar Charge Current
|
80A
|
|
|
Maximum Efficiency
|
98%
|
|
|
Standby Power Consumption
|
2 W
|
|
|
AC CHARGER
|
||
|
Maximum AC Charge Current
|
60A
|
|
|
AC Input Voltage
|
230 VAC
|
|
|
Selectable Voltage Rang
|
||
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
|
PHYSICAL
|
||
|
Dimension (D/W/H) in mm
|
130/350/455
|
|
|
Net Weight (kgs)
|
11.5
|
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative
Humidity(Non-condensing) |
|
|
Operating Temperature
|
0°C - 55°C
|
|
|
Storage Temperature
|
-15°C - 60°C
|
|
