Product Details:
|
| Inverter Communication: | USB A-Type | Data Transter Interval: | 5 Minutes |
|---|---|---|---|
| Wireless Type: | WiFi | Operating Current: | 1A |
| Operating Temperature: | -20℃~+65℃ | Max.Communication Range: | 100m |
| High Light: | Growatt Shine WiFi-F,USB A Type Hybrid Solar Inverter |
||

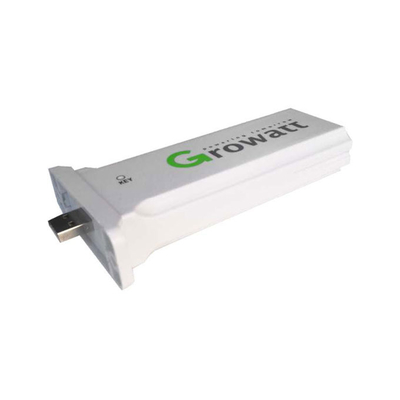

Growatt Shine WiFi-F
| Datasheet | Shine WiFi-F |
| General Data | |
| Dlmensions(Length/Width/Height) | 135/79/29 |
| Weight | 63g |
| Manual language | English,Chinese |
| Wireless Parameters | |
| Wireless type | WiFi |
| Wireless standard | 8D2.11 b/g/n |
| Transmit power | 802.11b:20dBm(Max)； |
| 802.11g:18dBm(Max)； | |
| 802.11n:15dBm(Max)； | |
| Receiver sensitivity | 802.11b;-89dBm(Max) |
| 802.11g;-81dBm(Max) | |
| 802.11n;-71dBm(Max) | |
| Hardware Parameters | |
| Data Interface | UART:9600bps；Ethernet:100Mbps |
| Operating Voltage | 5V(+/-15%) |
| Operating Current | 1A |
| Operating Temperature | -20℃~+65℃ |
| Storage Temperature | -40℃~+70℃ |
| Network Type | AP(Acess Point);station mode (with soft AP) |
| Security Mechanisms | WEP/WPA-PSK/WPA2-PSK |
| Encryption | WEP64/WEP128/TKIP/AES |
| App;ocation on Parameters | |
| Supported servers | ShineServer |
| Inverter communication | USB-A-type |
| Sever Communication | WiFi via router (Modbus TCP protocol) |
| Supproted Routers | Wireless router(Include 3G router |
| User Configuration Interface | Wireless web server (Internet Browser) |
| Max.Communication Range | 100m |
| Data Transfer Interval | 5 minutes |
