Product Details:
|
| Product Name: | Mono Cell Solar Panel | Cell Efficiency: | 20.52% |
|---|---|---|---|
| Application: | Solar Power System | Line Property: | 25 Years |
| Type: | PERC | Max. System: | 1000W |
| Max. Voltage: | 39.17V | Operating Temperature: | -40°C-80°C |
| High Light: | 1000W Solar Panel,monocrystalline perc solar panel,Solar Panel 360w |
||

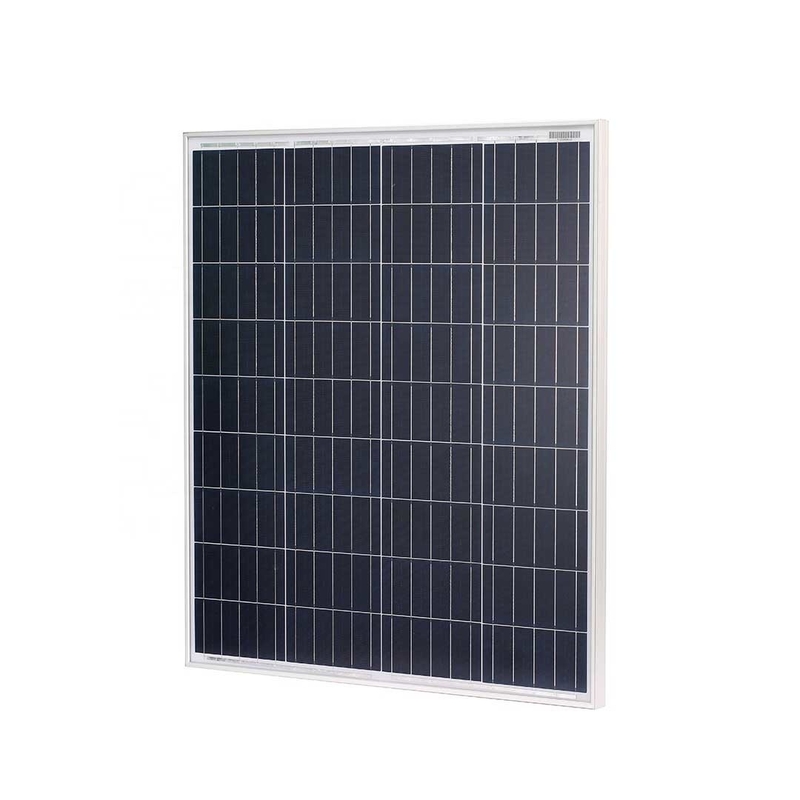

solar city Mono Cell Solar Panel 345w 350w 355w 360w solar system for solar roof
1. On company introduction
we have got some related certificattions in this field and have got honors on CQC certificate of National Electrical Applicance, ISO 9001 international quality system certification. With more than 10000 square meters and large production equipment, we can ensure stable production with high quality. We are an excellent and honest company on solar PV engineering in China.
2. Primary Advantages on Production
① Technology on Multi Busbar
② Adaptability to harsh environment
Having passed salt spray and high ammonia corrosion tests authorized by authorized organization
③ Better resistance to hot spots
By optimizing the current design and working current, a better temperature coefficient and resistance to hot spots come to a realization
④ Load capacity
The whole component has been passed tests on wind load of 2400pa and snow load of 5400pa
⑤ Anti-PID guarantee
By battery technology optimozation and material contorol to help to minimize the attenuation probability caused by PID phenomenon
⑥ Industry-leading linear warranty
With good perfomance of the whole system, it can ensure 12 years of process material warranty and 25 years of line property
3. Data sheet parameters
| ELECTRICAL SPECIFICATIONS | ||||
| Model Type | JT345-24M | JT350-24M | JT355-24M | JT360-24M |
| Nominal Maximum Power(Pmax) | 345W | 350W | 355W | 360W |
| Optimum Operating Voltage(Vmp) | 39.02V | 39.17V |
39.46V |
39.74V |
| Optimum Operating Current(Imp) | 8.85A | 8.94A | 9.01A | 9.06A |
| Open Circuit Voltage(Voc) | 46.44V | 46.51V | 46.80V | 47.16V |
| Short Circuit Current(Isc) | 9.41A | 9.58A | 9.63A | 9.67A |
| Module Effciency | 17.87% | 18.10% | 18.35% | 18.60% |
| Cell Effciency | 19.80% | 20.00% | 20.20% | 20.50% |
| Power Tolerance | 0 to +3% | |||
| Maximum Sytem Voltage | DC 1000V | |||
| Operating Temperature | -40℃~+85℃ | |||
| Maximum Series Fuse Rating | 20A | |||
| MECHANICAL DATA | ||||
| Cell Type | mono 156mmx156mm | |||
| Cell Arrangement | 72 cells in series | |||
| Dimensions | 1950x990x40mm | |||
| Weight | 22.86kg(approx) | |||
| Frame Cover | 3.2mm temper glass | |||
| Frame Material | Anodized aluminium alloy | |||
| J-Box | IP67,3 diodes | |||
| Cable | 4mm(IEC) / 12AWG (UL),1000mm(650mm is optional) | |||
| Connectors | MC4 or MC4 compatible | |||
| TEMPERATURE CHARACTERISTICS | ||||
| Temperature Coefficient(Pmax) | -0.420% / ℃ | |||
| Temperature Coefficient(Voc) | -0.346%/ ℃ | |||
| Temperature Coefficient(Isc) | 0.065%/ ℃ | |||
| Norminal Operating Cell Temperature | 45.3±2℃ | |||
