Product Details:
|
| System Type: | Off-grid Solar PV System | System Efficiency: | 22% |
|---|---|---|---|
| Application: | Solar Power System | Warranty: | 12 YEARS |
| Type: | Mono Technology | Load: | House Appliances |
| Solar Panel:: | Mono Silicon 120w | Optimum Operating Voltage: | 18.11V |
| High Light: | 18.11V Half Cell Solar Panel,Half Cell Solar Panel 120w,CEC pid solar panel |
||

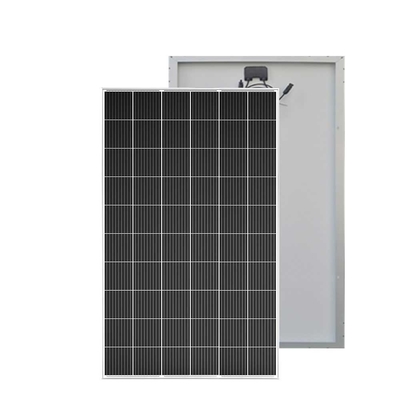

1. Tesla roof Mono Cell Solar Panel PERC Solar 120W House Appliances Solar System
1. Company Introduction
There are more than 10000 square meters and large production equipment in the factory and has already achieved honors such as CQC certificates such as National Electrical Applicance, ISO 9001 international quality system certificate. We are excellent and honest enterprise of China's solar PV engineering enterprise in China.
2. Chief Advantages Of Fusoli solar panels
① Multi busbar technology
② Adaptability to harsh environments
Have passed the tests on salt spray and high ammonia corrosion
③ Better resistance to hot spots
By optimizing the current design and working condition, the problems on temperature coefficient and resistance to hot spots have been solved
④ Load capacity
The whole component has been passed the certification of wind load on the case of 2400pa and snow load of 5400pa
⑤ Anti-PID guarantee
Minimize the attenuation probability caused by PID phenomenon by battery perduction technology optimozation and material contorol
⑥ Industry-leading linear warranty
12 years of material warranty and with 25 years of Line property
3.On production qualifications
| ELECTRICAL SPECIFICATIONS | |
| Model Type | JT120-12M |
| Nominal Maximum Power(Pmax) | 120W |
| Optimum Operating Vo;tage(Vmp) | 18.11V |
| Optimum Operating Current(Imp) | 6.62A |
| Open Circuit Voltage(Voc) | 22.5V |
| Short Circuit Current(Isc) | 6.87V |
| Module Effciency | 21.27% |
| Cell Effciency | 22% |
| Power Tolerance | 0 to +3% |
| Maximum Sytem Voltage | DC 1000V |
| Operating Temperature | -40℃~+85℃ |
| Maximum Series Fuse Rating | 20A |
| MECHANICAL DATA | |
| Cell Type | Mono 120x120mm |
| Cell Arrangement | 36 cells in series |
| Dimensions | 1200x540x30mm |
| Weight | 8.23kg(approx) |
| Front Cover | 3.2mm tempered glass |
| Frame Material | Anodized aluminium alloy |
| J-Box | IP67,3 diodes |
| Cable | 4mm(IEC)/12AWG(UL),1000mm (650mm is optional) |
| Connectors | MC4 or MC4 compatible |
| TEMPERATURE CHARACTERISTICS | |
| Temperature Coefficient(Pmax) | -0.420% / ℃ |
| Temperature Coefficient(Voc) | -0.346% / ℃ |
| Temperature Coefficient(Isc) | 0.065% / ℃ |
| Norminal Operating Cell Temperature | 45.3±2℃ |
