Product Details:
|
| Product Name: | 9Kwh Off Grid Electrical System | Type: | AC Output Off Grid System |
|---|---|---|---|
| Application: | Home Energy | Energy Storage: | NRuiT Powerporter 9kwh |
| Load Power: | 5kW, 10KW | Output Frequency: | 50/60Hz |
| Certificate: | MSDS/UN38.8 | Capacity: | 176Ah |
| Working Temperature: | -20~45°C | Battery Cycle-life: | 6000+ |
| High Light: | CATL Solar Off Grid System,UN38.8 Solar Off Grid System,10kw solar system |
||

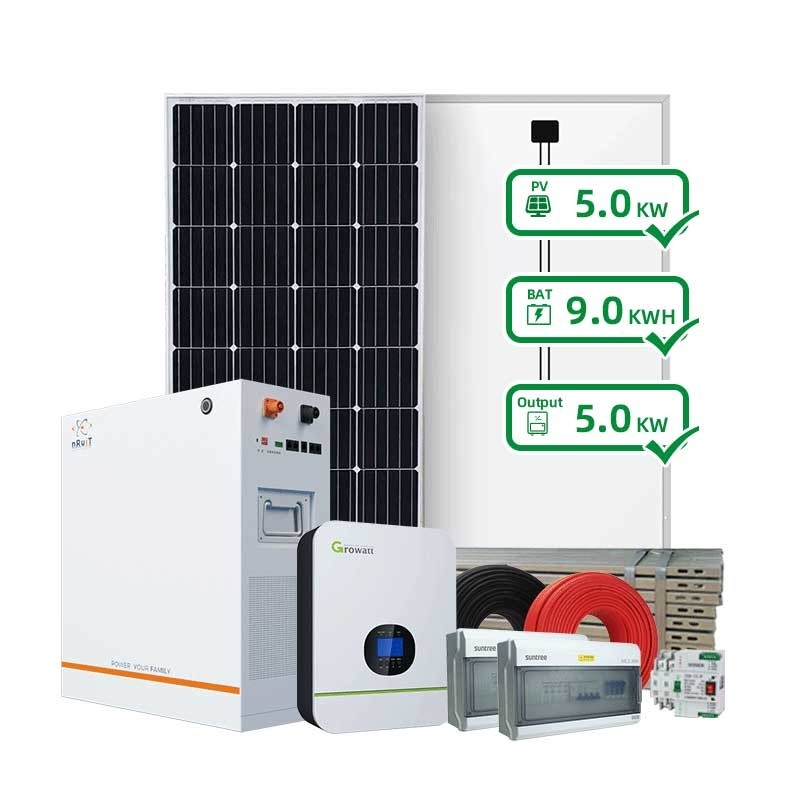

Solar Electric System Solar Off Grid Systems A set Of 9kwh For Home

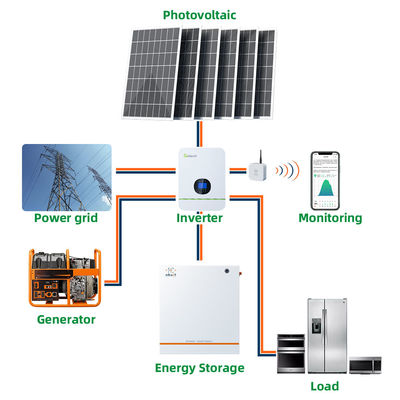

System characteristic
Advanced lithium iron battery
Using advanced LiFePO4 battery technology, with high rate charge and discharge, high energy density, long cycle life.
High performance hybrid inverter
High efficiency, high reliability, multiple satety protection, accurate tracking of solar energy.
Modular design
Flexible configuration capacity, light-weight design, simple installation and convenient maintenance.
| Battery : Powerporter 9kwh | |
| Nominal Energy | 9Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 176Ah |
| Size | 830x460x200 mm |
| Weight | 86Kg |
| Battery cell | Lithium ion battery cell (CATL ) |
| Cycle life | 6000+ (Promise) |
| Installation | Wall or floor mount |
| Inverter : Growatt 5000TL HVM | |
| Battery voltage | 48 VDC |
| Rated power | 5000W |
| Output voltage range | 230VAC±5%@50/60Hz |
| Mppt voltage range |
60VDC~115VDC
|
| Size | 350 x 455 x 130 mm |
| Weight | 11.5kg |
| Solar panel : JT400w-24M | |
| Pmax | 400w |
| Vmp | 38.23V |
| Imp | 8.65A |
| Size | 1950x990x40mm |
| Weight | 22.86Kg |
| Cell Type | Mono 156mm x 156mm |
| Cell Arrangement | 72 cell in series |
| PV component | |
| Kabel DC & MC4 Konektor | |
| PV Cirrcuit Breaker | |
| Palang Bagian | 4mm2-6mm2-Opsional |
| Nilai Tegangan | 600VDC(UL)/1000VDC(TUV) |
| PV Shelf Material | Al 6005-T5 |
| Combiner box | |
| PV Fuse | |
| PV Cirrcuit Breaker | |
| PV SPD | Surge Protective Device |
| Genset output | |
| AC SPD | |
| ATS | Automatic Transfer Switch |
| RCBO | Residual current circuit breaker with over current protection |
| Inverter Output | |
| ESS-BT9-PV5-INV5 | ESS-BT9-PV10-INV10 | ESS-BT9-PV10-INV10 | ESS-BT9-PV15-INV15 | |
|

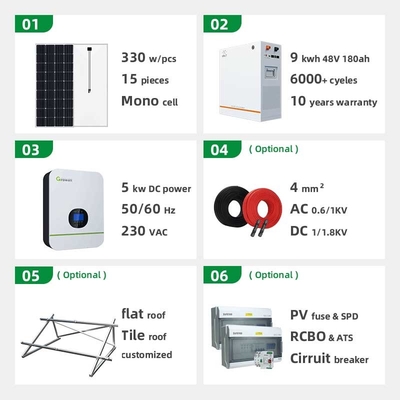

Battery: powerporter 9kwh
|
1 unit
9kwh / 48V / 176ah
|
2 unit
18kwh / 48V / 352ah
|
2 unit 18kwh / 48V / 352ah |
2 unit 18kwh / 48V / 352ah |
|
Solar panel: JT330w-24M
|
12pcs (5kw)
400w/pcs
|
12 pcs (10kw)
400w/pcs
|
25 pcs (10kw) 400w/pcs |
25 pcs (15kw) 400w/pcs |
|
Inverter: Growatt 5000TL
|
1 unit
Growatt 5000TL-HVM
|
2 unit
Growatt 5000TL-HVM
|
2 unit Growatt 5000TL-HVM |
3 unit Growatt 5000TL-HVM |
| System max. AC output power | 5kw | 10kw | 10kw | 15kw |
| Combiner box | 1 set | 1 set | 1 set | 1 set |
| Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters | 300 meters |
| PV component | 1 set | 1 set | 1 set | 1 set |
| Contact customer service and support customization | ||||
