Product Details:
|
| Product Name: | Household Solar System 10kwh | Type: | Off-grid System AC |
|---|---|---|---|
| Application: | Household | Function: | Provide Power |
| Load Power: | 5kW, 10KW, 15KW | Output Frequency: | 50/60hz |
| Output Voltage: | 230VAC±5% | Work Time: | 24Hours |
| Inverter: | Pure Sine Wave Inverter 5kw | Certificate: | MSDS/UN38.8 |
| High Light: | 230VAC Home Solar Panel Systems,UN38.8 Home Solar Panel Systems,10kw Solar PV Battery Systems |
||

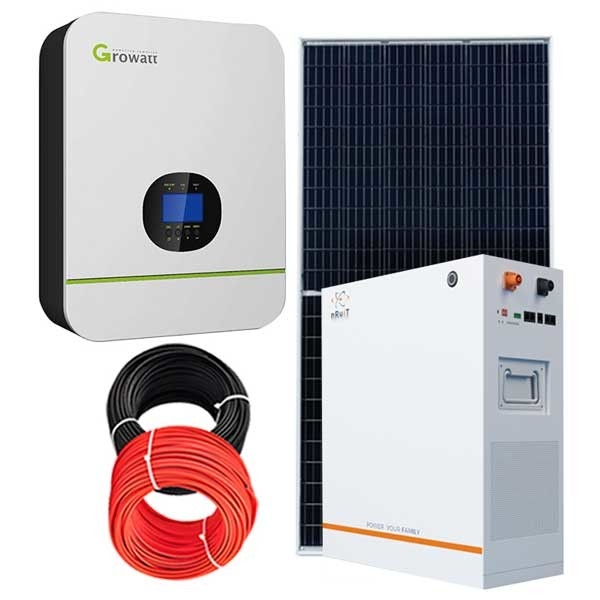

Solar Energy Systems Household Solar System 10kwh A Set For Home

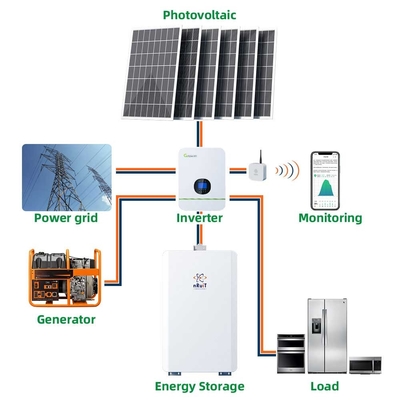

Energy storage is an effective means to solve the contradiction between power generation and electricity consumption
balance and coordination.
Energy storage system can smooth the power output of distributed power supply, maintain the stability of micro grid.
| ESS-BT10-PV5-INV5 | ESS-BT10-PV10-INV10 | ESS-BT10-PV10-INV10 | ESS-BT10-PV15-INV15 | |
|
Battery: powerporter 9kwh
|
1 unit
10kwh / 48V/ / 200ah
|
2 unit
20kwh / 48V/ / 400ah
|
3 unit 30kwh / 48V/ / 600ah |
3 unit 30kwh / 48V/ / 600ah |
|
Solar panel: JT330w-24M
|
12pcs (5kw)
400w/pcs
|
12 pcs (10kw)
400w/pcs
|
25 pcs (10kw) 400w/pcs |
25 pcs (15kw) 400w/pcs |
|
Inverter: Growatt 3000~5000TL
|
1 unit
Growatt 5000TL-HVM
|
2 unit
Growatt 5000TL-HVM
|
2 unit Growatt 5000TL-HVM |
3 unit Growatt 5000TL-HVM |
| System max. AC output power | 5kw | 10kw | 10kw | 15kw |
| Combiner box | 1 set | 1 set | 1 set | 1 set |
| Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters | 300 meters |
| PV component | 1 set | 1 set | 1 set | 1 set |
| Contact customer service and support customization | ||||
| Solar panel : JT400w-24M | |
| Pmax | 400w |
| Vmp | 38.23V |
| Imp | 8.65A |
| Size | 1950x990x40mm |
| Weight | 22.86Kg |
| Cell Type | Mono 156mm x 156mm |
| Cell Arrangement | 72 cell in series |

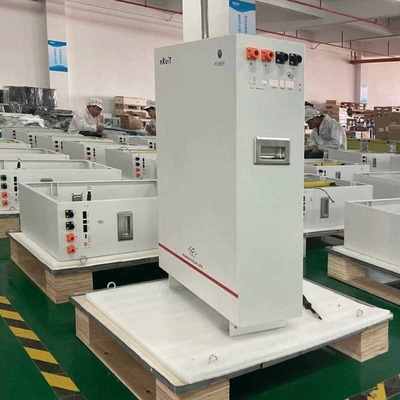

| Battery : Powerporter 10kwh | |
| Nominal Energy | 10.2Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 200Ah |
| Size | 830x460x200 mm |
| Weight | 94.17Kg |
| Battery cell | Lithium ion battery cell (CATL ) |
| Cycle life | 6000+ (Promise) |
| Installation | Wall or floor mount |
| Inverter : Growatt 3000~5000TL HVM | |
| Battery voltage | 48 VDC |
| Rated power | 3000~5000W |
| Output voltage range | 230VAC±5%@50/60Hz |
| Mppt voltage range | 30VDC~80VDC
60VDC~115VDC
|
| Size | 130 x 350 x 455 mm |
| Weight | 8Kg/14.5kg |
| Combiner box | |
| PV Fuse | |
| PV Cirrcuit Breaker | |
| PV SPD | Surge Protective Device |
| Genset output | |
| AC SPD | |
| ATS | Automatic Transfer Switch |
| RCBO | Residual current circuit breaker with over current protection |
| Inverter Output | |
| PV component | |
| Kabel DC & MC4 Konektor | |
| PV Cirrcuit Breaker | |
| Palang Bagian | 4mm2-6mm2-Opsional |
| Nilai Tegangan | 600VDC(UL)/1000VDC(TUV) |
| PV Shelf Material | Al 6005-T5 |
