Product Details:
|
| Material: | Lithium Battery | Certification: | UN38.3/CE/IEC62619 |
|---|---|---|---|
| Application: | House / Car / Ship / Electric Power / Solar Panel | Cycle Life: | 2500 Times |
| Discharge Current: | 100AH | Nominal Voltage: | 12.8V |
| Protection: | Smart BMS | The Charging Ratio: | 90% |
| Warranty: | 1 Years, 1year | Weight: | 11kg |
| High Light: | 100AH 12 volt solar battery pack,1280Wh 12 Volt Solar Battery Pack,expertpower direct 12v 100ah lifepo4 |
||

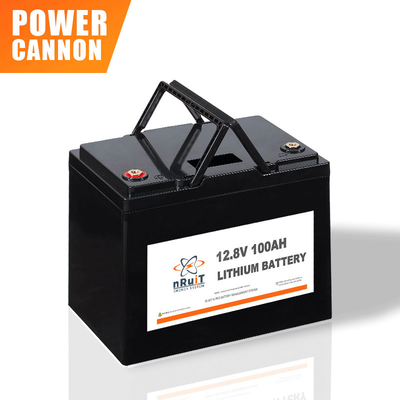

Solar Replacement 12V Lifepo4 Lithium Ion Solar Battery Pack 100ah
|
parameter
|
Power porter
|
|
Battery parameters
|
|
|
Nominal Voltage
|
12.8V
|
|
Nominal Energy
|
1280Wh
|
|
Discharge voltage
|
10V
|
|
Charge Voltage
|
14.4V
|
|
Con. charging current
|
100A
|
|
Max. charging current
|
100A
|
|
Con. discharge current
|
100A
|
|
Max. discharge current
|
100A
|
|
Con. discharge DC power
|
1280W
|
|
Max. discharge DC power
|
1280W
|
|
Operating temperature
|
Charge:0~45℃ Discharge:-20~55℃
|
|
General Data
|
|
|
Scalability
|
Communication, Bluetooth, heating, display
|
|
DOD
|
100%
|
|
Communication
|
NON
|
|

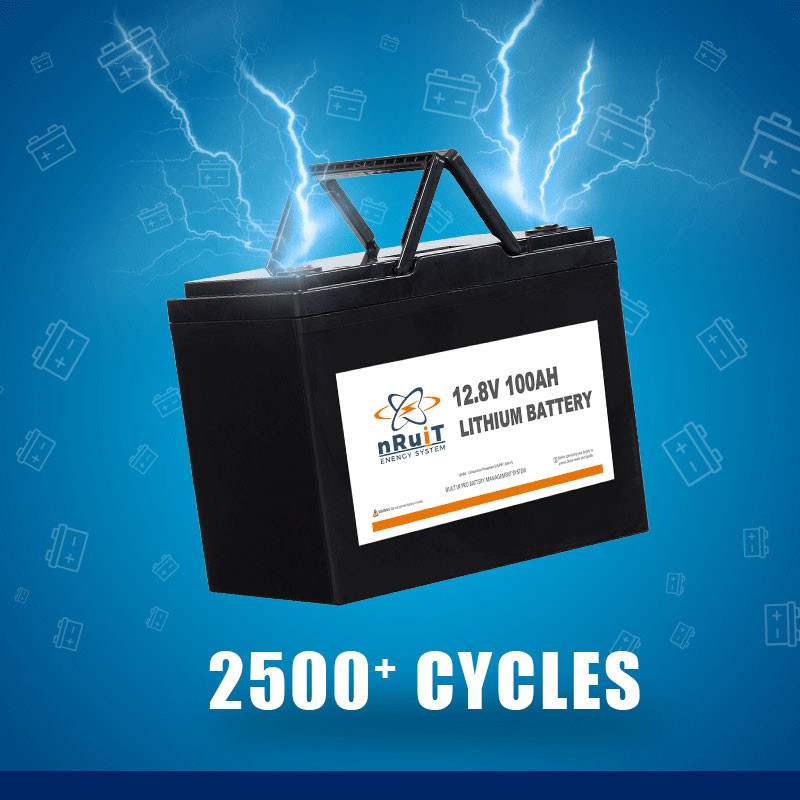

Cycle Life
|
2500cycles 0.5c 80% 100%DOD 25℃
|
|
IP Grade
|
IP65
|
|
Installation
|
Same as lead-acid battery
|
|

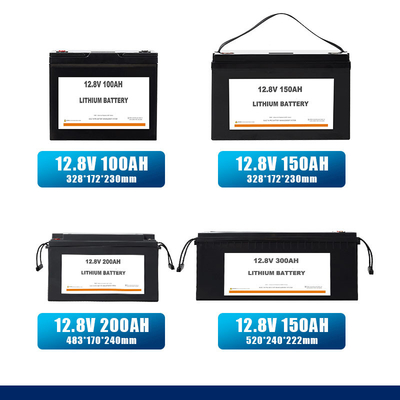

Dimension
|
328*172*230mm
|
|
Weight
|
11Kg
|
|
Warranty
|
One year
|
|
UN38.3 IEC62619 CE
|
|
|
* When the temperature ＜ 0℃ or ＞45℃,the product performance is limited
|
|
