Product Details:
|
| Battery Type: | Lithium Ion Battery | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Product Warranty: | 5 Years | Protection: | Smart BMS |
| Output Power: | 5000W | Application: | Solar Energy Storage, Home Appliances |
| Capacity: | 480ah | Discharge Current: | 270A |
| High Light: | 24kwh solar power deep cycle battery,480ah solar power deep cycle battery,51.2V household solar battery storage |
||

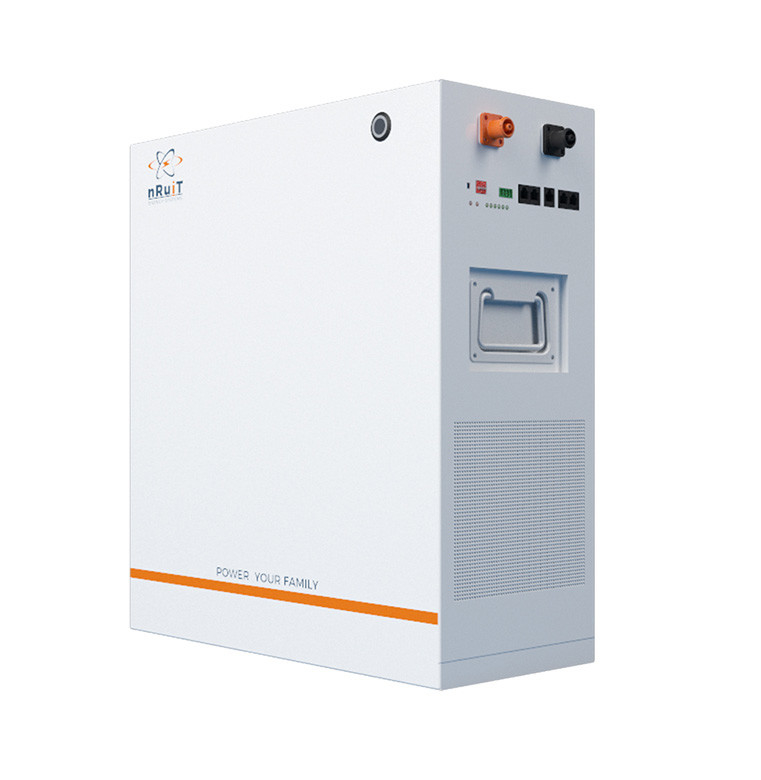

Premium Renewable Household Energy Storage Deep Cycle Solar Battery 24kwh 51.2V
1. The main advantages of power porter 24kwh
The CATL electrochemical energy storage system has the functions of capacity increasing and expansion, backup power supply.
2. Smart BMS management
| Powerporter | 24Kwh |
| Battery parameters | |
| Nominal Energy | 24.5Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 480ah |
| Discharge Voltage | 45~54V |
| Charge Voltage | 51.5V~51V |
| Con.charging current | 270A |
| Max.charging current | 450A |
| Con.discharge current | 270A |
| Max. discharge current | 450A |
| Con.discharge DC power | 13.5Kw |
| Max.discharge DC power(use in parallel) | 15Kw |
| Operating temperature | 0~45℃(Charge)/ -20~45°C(Discharge) |
| General temperature | |
| IP Grade | IP21 |
| Weight | 220Kg |
| Dimension(mm) | 1246x748x250 |
| Installation | floor mount |
| Scalability | NO |
| DOD | 90% |
| Communication | CAN2.0/RS485 |
| Cycle Life | 6000+ |
| Warranty | 5Years |
| UN38.3 IEC6269 CE | |
| *When the temperature <0℃ or >45℃, the product performance is limited | |
