Product Details:
|
| Product Name: | 5kwh Solar Electric System | Battery Type: | Lithium Ion Battery |
|---|---|---|---|
| Voltage: | 51.2V | Warranty: | 5 Years |
| Protection: | Smart BMS | Output Power: | 5000W |
| Application: | Solar Energy Storage, Home Appliances | Capacity: | 228AH |
| Discharge Current: | 180A | Weight: | 115kg |
| Power Capacity: | 12kwh | Life Span: | 10 Years |
| High Light: | 180A Deep Cycle Solar Battery,115kg Deep Cycle Solar Battery,12v Lifepo4 Battery 100ah |
||

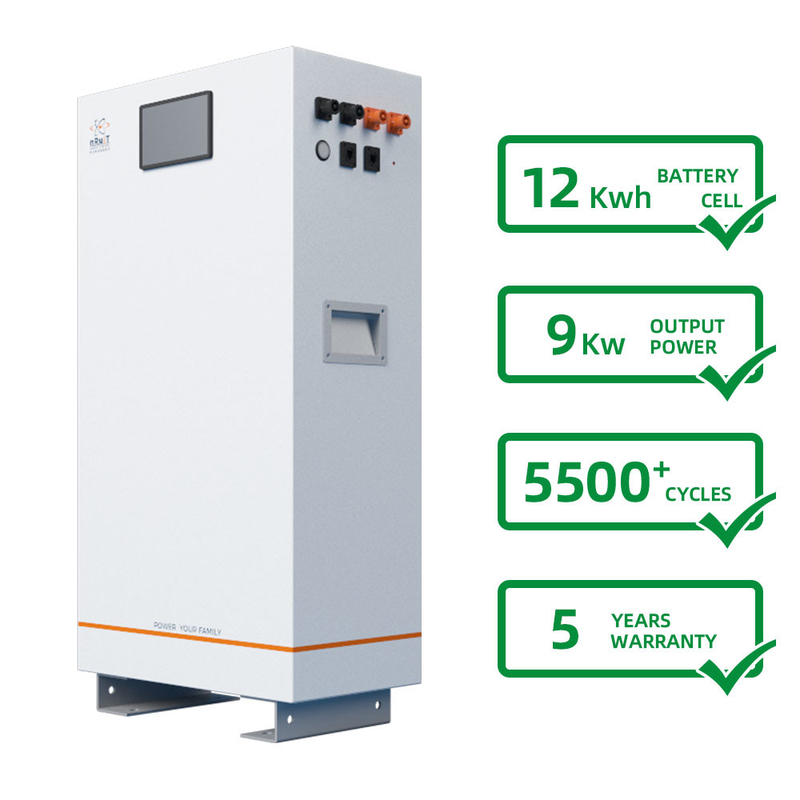

Eco-Friendly 12kwh Lithium Ion Solar Battery Flexible Electric For Apartment
1. The main advantages of power porter 10kwh
①Higher effciency
②Higher energy density
③Simple installation method
④Using catl lithium iron phosphate cell
CATL pursues every possibility to improve product safety. The CATL electrochemical energy storage system has the functions of capacity increasing and expansion, backup power supply, etc.
2. Smart BMS management of
Overcharge Protection Overdischarge Protection
Over voltage Protection Over current Protection
Short circuit Protection Reverse connection pertection
Temperature Control Double function protection
3.specification
| Product name | Solar Electric System |
| Powerporter | 12Kwh |
| Battery parameters | |
| Nominal Voltage | 51.2V |
| Nominal Energy | 12.2Kwh |
| Capacity | 228ah |
| Discharge Voltage | 45~54V |
| Charge Voltage | 51.5V~51V |
| Con.charging current | 100A |
| Max.charging current | 150A |
| Con.discharge current | 100A |
| Max. discharge current | 150A |
| Con.discharge DC power | 9Kw |
| Max.discharge DC power(use in parallel) | 10Kw |
| Operating temperature | 0~45℃(Charge)/ -20~45°C(Discharge) |
| General temperature | |
| IP Grade | IP31 |
| Weight | 115Kg |
| Dimension(mm) | 830x460x200 |
| Installation | wall or floof mount |
| Scalability | Up to 4 units |
| DOD | 90% |
| Communication | CAN2.0/RS485 |
| Cycle Life | 6000+ |
| Warranty | 5Years |
| UN38.3 IEC6269 CE | |
| *When the temperature <0℃ or >45℃, the product performance is limited | |
