Product Details:
|
| Product Name: | Off-grid Solar System 5 Kwh | Installation: | Wall Or Floor Mount |
|---|---|---|---|
| Application: | Residence | System Max. AC Output Power: | 5 KW |
| Output Frequency: | 50/60 HZ | Cycle Life: | 5500+ |
| Capacity: | 100 Ah | Working Time: | 24 H |
| Inverter: | Growatt 5000TL | Function: | Power-Supply |
| High Light: | 60HZ off grid photovoltaic system,CATL off grid photovoltaic system,UN38.3 PV Solar Power System |
||

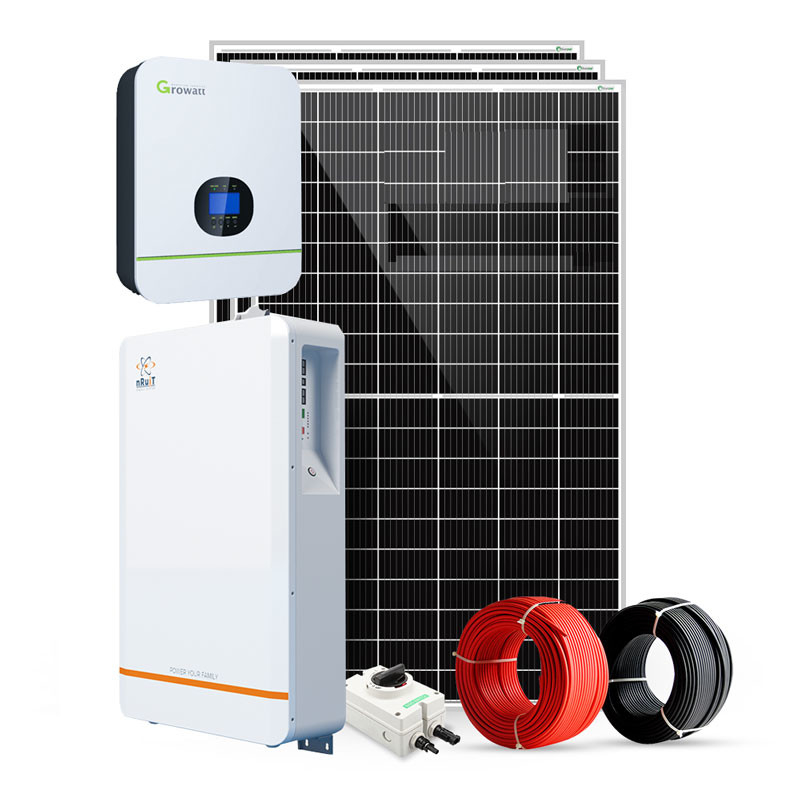

Photovoltaic Solar System Solar Off-Grid System 5 Kwh A Set For Home Use
Off-Grid system is the best power solution in non power areas. Langic provides a wide range of off grid systems according to local conditions. It not only provides various power supply accessories, such as inverter and controller, but also provides system design and installation consulting products and services.
| ESS-BT10-PV5-INV5 | ESS-BT10-PV10-INV10 | ESS-BT10-PV10-INV10 | ESS-BT10-PV15-INV15 | |
|
Battery: powerporter 9kwh
|
1 unit
10kwh / 48V/ / 200ah
|
2 unit
20kwh / 48V/ / 400ah
|
3 unit 30kwh / 48V/ / 600ah |
3 unit 30kwh / 48V/ / 600ah |
|
Solar panel: JT330w-24M
|
12pcs (5kw)
400w/pcs
|
12 pcs (10kw)
400w/pcs
|
25 pcs (10kw) 400w/pcs |
25 pcs (15kw) 400w/pcs |
|
Inverter: Growatt 3000~5000TL
|
1 unit
Growatt 5000TL-HVM
|
2 unit
Growatt 5000TL-HVM
|
2 unit Growatt 5000TL-HVM |
3 unit Growatt 5000TL-HVM |
| System max. AC output power | 5kw | 10kw | 10kw | 15kw |
| Combiner box | 1 set | 1 set | 1 set | 1 set |
| Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters | 300 meters |
| PV component | 1 set | 1 set | 1 set | 1 set |
| Contact customer service and support customization | ||||
| Solar panel : JT400w-24M | |
| Pmax | 400w |
| Vmp | 38.23V |
| Imp | 8.65A |
| Size | 1950x990x40mm |
| Weight | 22.86Kg |
| Cell Type | Mono 156mm x 156mm |
| Cell Arrangement | 72 cell in series |
| Battery : Powerporter 10kwh | |
| Nominal Energy | 10.2Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 200Ah |
| Size | 830x460x200 mm |
| Weight | 94.17Kg |
| Battery cell | Lithium ion battery cell (CATL ) |
| Cycle life | 6000+ (Promise) |
| Installation | Wall or floor mount |
| Inverter : Growatt 3000~5000TL HVM | |
| Battery voltage | 48 VDC |
| Rated power | 3000~5000W |
| Output voltage range | 230VAC±5%@50/60Hz |
| Mppt voltage range | 30VDC~80VDC
60VDC~115VDC
|
| Size | 130 x 350 x 455 mm |
| Weight | 8Kg/14.5kg |
| Combiner box | |
| PV Fuse | |
| PV Cirrcuit Breaker | |
| PV SPD | Surge Protective Device |
| Genset output | |
| AC SPD | |
| ATS | Automatic Transfer Switch |
| RCBO | Residual current circuit breaker with over current protection |
| Inverter Output | |
| PV component | |
| Kabel DC & MC4 Konektor | |
| PV Cirrcuit Breaker | |
| Palang Bagian | 4mm2-6mm2-Opsional |
| Nilai Tegangan | 600VDC(UL)/1000VDC(TUV) |
| PV Shelf Material | Al 6005-T5 |
