Product Details:
|
| Product Name: | Off-grid Solar System 5-kw | Energy Storage: | NRuiT Powerporter 5-kw |
|---|---|---|---|
| Warranty: | 10-Years | Load Power: | 5-KW |
| Max. AC Output Power: | Inverter 5kw | Application: | Home, Industrial, Commercial |
| Weight: | 500 KG | Working Time: | 24-Hours |
| Pre-sales Project Design: | Yes | Installation: | Floor Or Wall Mount |
| High Light: | MSDS Solar Electric System,200ah Solar Electric System,5Kw Photovoltaic Solar System |
||

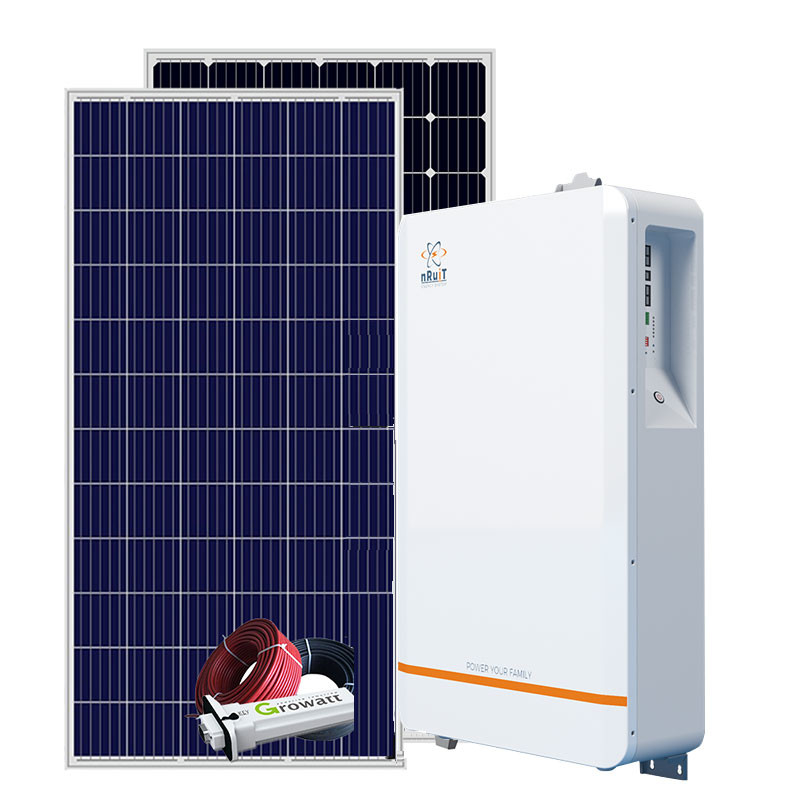

Photovoltaic Solar System Solar Off-Grid System 5-Kw A Set For Home Use
Solar off-grid system is a new type of power supply that generates power by photovoltaic modules, manages the charge and discharge of the battery, and provides power to DC load or AC load through inverter. It is widely used in plateau, island, remote mountainous area and field operation with harsh environment. It can also be used as power supply for communication base station, advertising light box, street lamp and so on.
Photovoltaic solar system can solve the demand contradiction problems in power shortage areas. Improve the global ecological environment and promote human sustainable development.
| ESS-BT10-PV5-INV5 | ESS-BT10-PV10-INV10 | ESS-BT10-PV10-INV10 | ESS-BT10-PV15-INV15 | |
|
Battery: powerporter 9kwh
|
1 unit
10kwh / 48V/ / 200ah
|
2 unit
20kwh / 48V/ / 400ah
|
3 unit 30kwh / 48V/ / 600ah |
3 unit 30kwh / 48V/ / 600ah |
|
Solar panel: JT330w-24M
|
12pcs (5kw)
400w/pcs
|
12 pcs (10kw)
400w/pcs
|
25 pcs (10kw) 400w/pcs |
25 pcs (15kw) 400w/pcs |
|
Inverter: Growatt 3000~5000TL
|
1 unit
Growatt 5000TL-HVM
|
2 unit
Growatt 5000TL-HVM
|
2 unit Growatt 5000TL-HVM |
3 unit Growatt 5000TL-HVM |
| System max. AC output power | 5kw | 10kw | 10kw | 15kw |
| Combiner box | 1 set | 1 set | 1 set | 1 set |
| Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters | 300 meters |
| PV component | 1 set | 1 set | 1 set | 1 set |
| Contact customer service and support customization | ||||
| Solar panel : JT400w-24M | |
| Pmax | 400w |
| Vmp | 38.23V |
| Imp | 8.65A |
| Size | 1950x990x40mm |
| Weight | 22.86Kg |
| Cell Type | Mono 156mm x 156mm |
| Cell Arrangement | 72 cell in series |
| Battery : Powerporter 10kwh | |
| Nominal Energy | 10.2Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 200Ah |
| Size | 830x460x200 mm |
| Weight | 94.17Kg |
| Battery cell | Lithium ion battery cell (CATL ) |
| Cycle life | 6000+ (Promise) |
| Installation | Wall or floor mount |
| Inverter : Growatt 3000~5000TL HVM | |
| Battery voltage | 48 VDC |
| Rated power | 3000~5000W |
| Output voltage range | 230VAC±5%@50/60Hz |
| Mppt voltage range | 30VDC~80VDC
60VDC~115VDC
|
| Size | 130 x 350 x 455 mm |
| Weight | 8Kg/14.5kg |
| Combiner box | |
| PV Fuse | |
| PV Cirrcuit Breaker | |
| PV SPD | Surge Protective Device |
| Genset output | |
| AC SPD | |
| ATS | Automatic Transfer Switch |
| RCBO | Residual current circuit breaker with over current protection |
| Inverter Output | |
| PV component | |
| Kabel DC & MC4 Konektor | |
| PV Cirrcuit Breaker | |
| Palang Bagian | 4mm2-6mm2-Opsional |
| Nilai Tegangan | 600VDC(UL)/1000VDC(TUV) |
| PV Shelf Material | Al 6005-T5 |
