Product Details:
|
| Product Name: | Off Grid Solar Power System 5 Kwh | Type: | Off-grid Solar System AC Output |
|---|---|---|---|
| Application: | Solar System, Home Use | Function: | Provide Elec Power |
| Load Power: | 5 KW | Output Frequency: | 50/60HZ |
| Certificate: | UN38.3,MSDS | Battery Capacity: | 48V 100ah |
| Battery Type: | Lithium Ion Battery | Battery Cycles: | 6000+ |
| High Light: | 100ah Solar Electric System,48V Solar Electric System,5Kwh household solar panel kits |
||

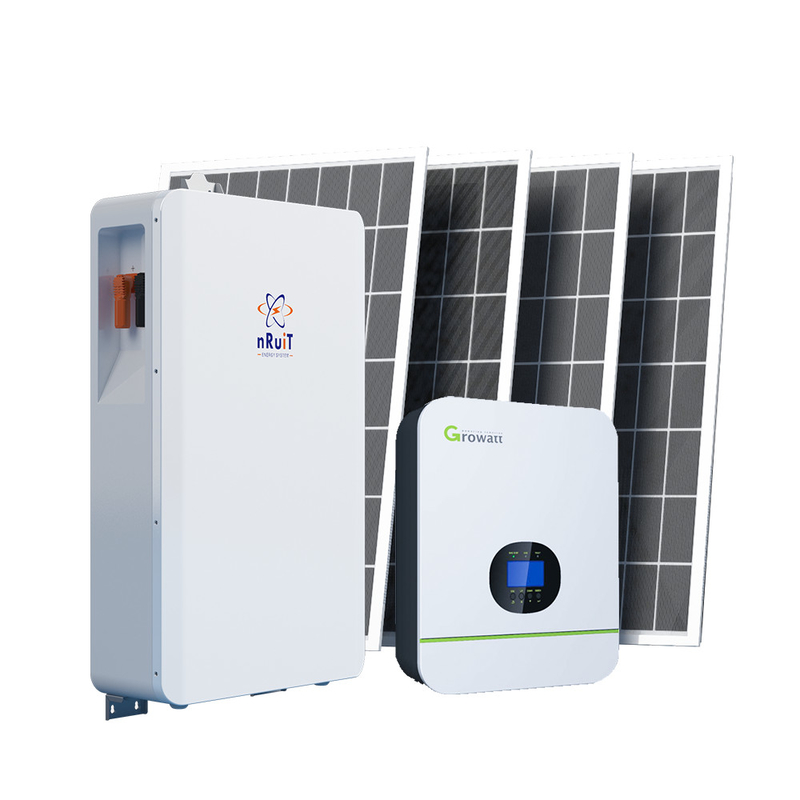

Solar Energy Systems Solar Off-Grid System 5 Kwh A Set For HouseHold
1. Residential Energy Storage System
The intelligent mocro energy storage system is combined with advanced LiFe-PO4 lithium batteries, hybrid inverters, energy management system,and photovoltaic module systems, which is suitable for household energy storage, farms, and other applications.
2. System composition
Growatt inverter+battery+PV panels+software management
3.The advantage of the solar off grid system
| ESS-BT10-PV5-INV5 | ESS-BT10-PV10-INV10 | ESS-BT10-PV10-INV10 | ESS-BT10-PV15-INV15 | |
|
Battery: powerporter 9kwh
|
1 unit
10kwh / 48V/ / 200ah
|
2 unit
20kwh / 48V/ / 400ah
|
3 unit 30kwh / 48V/ / 600ah |
3 unit 30kwh / 48V/ / 600ah |
|
Solar panel: JT330w-24M
|
12pcs (5kw)
400w/pcs
|
12 pcs (10kw)
400w/pcs
|
25 pcs (10kw) 400w/pcs |
25 pcs (15kw) 400w/pcs |
|
Inverter: Growatt 3000~5000TL
|
1 unit
Growatt 5000TL-HVM
|
2 unit
Growatt 5000TL-HVM
|
2 unit Growatt 5000TL-HVM |
3 unit Growatt 5000TL-HVM |
| System max. AC output power | 5kw | 10kw | 10kw | 15kw |
| Combiner box | 1 set | 1 set | 1 set | 1 set |
| Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters | 300 meters |
| PV component | 1 set | 1 set | 1 set | 1 set |
|
Contact customer service and support customization |
||||
| Solar panel : JT400w-24M | |
| Pmax | 400w |
| Vmp | 38.23V |
| Imp | 8.65A |
| Size | 1950x990x40mm |
| Weight | 22.86Kg |
| Cell Type | Mono 156mm x 156mm |
| Cell Arrangement | 72 cell in series |
| Battery : Powerporter 10kwh | |
| Nominal Energy | 10.2Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 200Ah |
| Size | 830x460x200 mm |
| Weight | 94.17Kg |
| Battery cell | Lithium ion battery cell (CATL ) |
| Cycle life | 6000+ (Promise) |
| Installation | Wall or floor mount |
| Inverter : Growatt 3000~5000TL HVM | |
| Battery voltage | 48 VDC |
| Rated power | 3000~5000W |
| Output voltage range | 230VAC±5%@50/60Hz |
| Mppt voltage range | 30VDC~80VDC
60VDC~115VDC
|
| Size | 130 x 350 x 455 mm |
| Weight | 8Kg/14.5kg |
| Combiner box | |
| PV Fuse | |
| PV Cirrcuit Breaker | |
| PV SPD | Surge Protective Device |
| Genset output | |
| AC SPD | |
| ATS | Automatic Transfer Switch |
| RCBO | Residual current circuit breaker with over current protection |
| Inverter Output | |
| PV component | |
| Kabel DC & MC4 Konektor | |
| PV Cirrcuit Breaker | |
| Palang Bagian | 4mm2-6mm2-Opsional |
| Nilai Tegangan | 600VDC(UL)/1000VDC(TUV) |
| PV Shelf Material | Al 6005-T5 |
