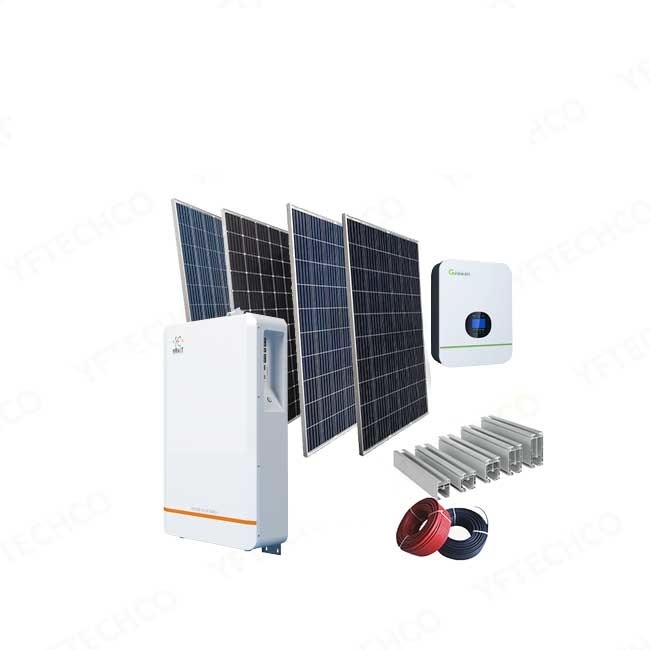

38.23V 8.65A Household Solar System 24 Kwh Lithium Ion Battery Cell

38.23V 8.65A Household Solar System 24 Kwh Lithium Ion Battery Cell
38.23V 8.65A Household Solar System 24 Kwh Lithium Ion Battery Cell

Large Image :  38.23V 8.65A Household Solar System 24 Kwh Lithium Ion Battery Cell

Product Details:
Place of Origin: Guangdong,China
Brand Name: nRuiT
Certification: MSDS/UN38.3
Model Number: ESS-24kwh
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $6,319.00 - $13,025.40/Set
Packaging Details: wooden case
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 2000 units per month

38.23V 8.65A Household Solar System 24 Kwh Lithium Ion Battery Cell

Description
Product Name: Off-grid Solar System 24 Kwh Battery Capacity: 480 Ah
Load Power: 15 KW Battery Cell: Lithium Ion Battery Cell
System Type: Off Grid Solar PV System Cycle Life: 5000+
Application: Solar System Warranty: 5years
Function: Electrical Power Supply Life Span: 10years
High Light:

38.23V Household Solar System

,

8.65A Household Solar System

,

Household 24 kw solar system

Solar Off Grid Systems Energy Storage System 24 kwh A Set For Home Use





Battery

  • Store the electric energy generated by the PV panels. When the light is insufficient or at night, or the load demand is bigger than the power generated by the PV panels, release the stored electric energy to meet the energy demand of the load. It is the energy storage component of the solar off grid system. At present, lithium iron phosphate battery is commonly used in energy storage system



Solar off grid systems is mainly applicable to the cases of insufficient power supply,time-of-use electricity, no electricity area and so on.

  • In the case of insufficient power supply, the energy storage system can store electricity through photovoltaic power generation, and then provide backup power for the household load.
  • In areas without electricity, it can serve as an independent off-grid system together for the household load to solve the problems of no electricity supply.
  • In time-of-use area, the system can store the surplus electricity generated by photovoltaic equipment and use it when the price of electricity is high, thus reducing electricity cost.



Solar panel : JT400w-24M

Pmax

400w

Vmp

38.23V

Imp

8.65A

Size

1950x990x40mm

Weight

22.86Kg

Cell Type

Mono 156mm x 156mm

Cell Arrangement

72 cell in series





Battery : Powerporter 24kwh

Nominal Energy

24.0Kwh

Nominal Voltage

51.2V

Capacity

480Ah

Size

1246x748x250 mm

Weight

230Kg

Battery cell

Lithium ion battery cell (CATL )

Cycle life

6000+ (Promise)

Installation

Wall or floor mount



Inverter : Growatt 5000TL HVM

Battery voltage

48 VDC

Rated power

5000W

Output voltage range

230VAC±5%@50/60Hz

Mppt voltage range

30VDC~80VDC

60VDC~115VDC

Size

130 x 350 x 455 mm

Weight

14.5kg





Combiner box

PV Fuse



PV Cirrcuit Breaker



PV SPD

Surge Protective Device

Genset output



AC SPD



ATS

Automatic Transfer Switch

RCBO

Residual current circuit breaker with over current protection

Inverter Output





PV component

Kabel DC & MC4 Konektor

PV Cirrcuit Breaker

Palang Bagian

4mm2-6mm2-Opsional

Nilai Tegangan

600VDC(UL)/1000VDC(TUV)

PV Shelf Material

Al 6005-T5







  ESS-BT24-PV5-INV5 ESS-BT24-PV10-INV10 ESS-BT24-PV15-INV15

Battery:

powerporter 12kwh

2 unit

12kwh / 48V / 480ah

2 unit

12kwh / 48V / 480ah

2 unit

12kwh / 48V / 480ah

Solar panel:

JT330w-24M

12pcs (5kw)

400w/pcs

24 pcs (10kw)

400w/pcs

36 pcs (15kw)
400w/pcs

Inverter:

Growatt 5000TL

1 unit

Growatt 5000TL-HVM

2 unit

Growatt 5000TL-HVM

3 unit
Growatt 5000TL-HVM
System max. AC output power 5kw 10kw 15kw
Combiner box 1 set 1 set 1 set
Kabel DC 4mm2 200 meters 200 meters 200 meters
PV component 1 set 1 set 1 set
Contact customer service and support customization
