Product Details:
|
Product Name: | Off-grid Solar System 24 Kw | Load Power: | 15 KWatt |
---|---|---|---|
Battery Capacity: | 480 Ah | Application: | Household,Solar System |
Cycle Life: | 5500 | Function: | Provide Electrical Power |
Waranty: | 5Y | Life Span: | 10Y |
Inverter: | Pure Sine Wave Inverter 5 Kw | Certificate: | UN38.3/MSDS |
High Light: | 51.2V Household Solar System,22.86Kg Household Solar System,480Ah solar rooftop system for home |

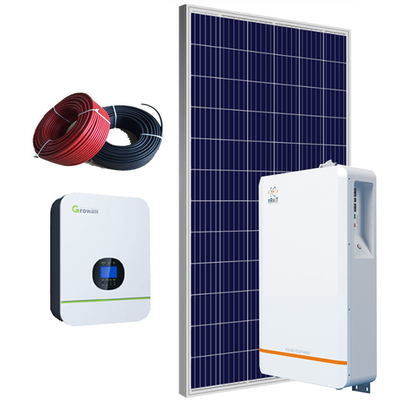

Solar Off Grid Systems Energy Storage System 24 kw A Set For Home Use
This solar power system is not connected to the external commercial power grid, but the system that can independently provide power supply capacity is called solar off grid system, also known as independent photovoltaic power generation system.And it is a energy storage system too.
Photovoltaic panels: it is composed of solar cell modules in series and parallel according to the solar off grid system requirements. It converts solar energy into electric energy output under the sunlight.
Home photovoltaic energy power system is mainly applicable to the cases of insufficient power supply,time-of-use electricity, no electricity area and so on.
Solar panel : JT400w-24M |
|
Pmax |
400w |
Vmp |
38.23V |
Imp |
8.65A |
Size |
1950x990x40mm |
Weight |
22.86Kg |
Cell Type |
Mono 156mm x 156mm |
Cell Arrangement |
72 cell in series |
Battery : Powerporter 24kwh |
|
Nominal Energy |
24.0Kwh |
Nominal Voltage |
51.2V |
Capacity |
480Ah |
Size |
1246x748x250 mm |
Weight |
230Kg |
Battery cell |
Lithium ion battery cell (CATL ) |
Cycle life |
6000+ (Promise) |
Installation |
Wall or floor mount |
Inverter : Growatt 5000TL HVM |
|
Battery voltage |
48 VDC |
Rated power |
5000W |
Output voltage range |
230VAC±5%@50/60Hz |
Mppt voltage range |
30VDC~80VDC 60VDC~115VDC |
Size |
130 x 350 x 455 mm |
Weight |
14.5kg |
Combiner box |
|
PV Fuse |
|
PV Cirrcuit Breaker |
|
PV SPD |
Surge Protective Device |
Genset output |
|
AC SPD |
|
ATS |
Automatic Transfer Switch |
RCBO |
Residual current circuit breaker with over current protection |
Inverter Output |
|
PV component |
|
Kabel DC & MC4 Konektor |
|
PV Cirrcuit Breaker |
|
Palang Bagian |
4mm2-6mm2-Opsional |
Nilai Tegangan |
600VDC(UL)/1000VDC(TUV) |
PV Shelf Material |
Al 6005-T5 |
ESS-BT24-PV5-INV5 | ESS-BT24-PV10-INV10 | ESS-BT24-PV15-INV15 | |
Battery: powerporter 12kwh |
2 unit 12kwh / 48V / 480ah |
2 unit 12kwh / 48V / 480ah |
2 unit 12kwh / 48V / 480ah |
Solar panel: JT330w-24M |
12pcs (5kw) 400w/pcs |
24 pcs (10kw) 400w/pcs |
36 pcs (15kw) 400w/pcs |
Inverter: Growatt 5000TL |
1 unit Growatt 5000TL-HVM |
2 unit Growatt 5000TL-HVM |
3 unit Growatt 5000TL-HVM |
System max. AC output power | 5kw | 10kw | 15kw |
Combiner box | 1 set | 1 set | 1 set |
Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters |
PV component | 1 set | 1 set | 1 set |
Contact customer service and support customization |
