Product Details:
|
| Product Name: | 9 Kwh Off Grid Electrical System | Application: | Home Use |
|---|---|---|---|
| Energy Storage: | NRuiT Powerporter 9 Kwh | Controller Type: | MPPT |
| Load Power: | 5kW/10kW | Mounting Type: | Ground Mounting, Roof Mounting, Carport Mounting |
| Inverter: | Growatt 5000-TL | Capacity: | 176 Ah |
| System Type: | Off-grid Solar PV System | Function: | Provide Elec Power |
| High Light: | 9Kwh Solar Off Grid System,176Ah Solar Off Grid System,51.2V off grid power systems |
||

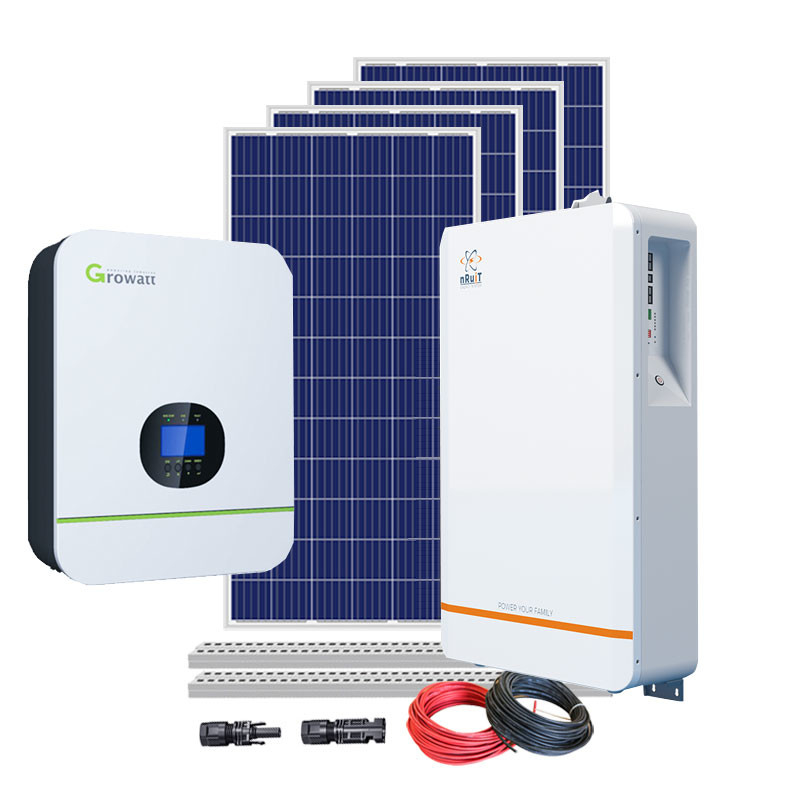

Solar Electric System Solar Off Grid Systems A set Of 9 kwh For Home
Solar off grid system is mainly composed of solar panels (modules), battery and inverter three parts. They are mainly composed of electronic components. Mechanical parts are not involved. So solar electric system equipment is extremely refined, reliable and stable, long service life, easy installation and maintenance
| Battery : Powerporter 9kwh | |
| Nominal Energy | 9Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 176Ah |
| Size | 830x460x200 mm |
| Weight | 86Kg |
| Battery cell | Lithium ion battery cell (CATL ) |
| Cycle life | 6000+ (Promise) |
| Installation | Wall or floor mount |
| Inverter : Growatt 5000TL HVM | |
| Battery voltage | 48 VDC |
| Rated power | 5000W |
| Output voltage range | 230VAC±5%@50/60Hz |
| Mppt voltage range |
60VDC~115VDC
|
| Size | 350 x 455 x 130 mm |
| Weight | 11.5kg |
| Solar panel : JT400w-24M | |
| Pmax | 400w |
| Vmp | 38.23V |
| Imp | 8.65A |
| Size | 1950x990x40mm |
| Weight | 22.86Kg |
| Cell Type | Mono 156mm x 156mm |
| Cell Arrangement | 72 cell in series |
| PV component | |
| Kabel DC & MC4 Konektor | |
| PV Cirrcuit Breaker | |
| Palang Bagian | 4mm2-6mm2-Opsional |
| Nilai Tegangan | 600VDC(UL)/1000VDC(TUV) |
| PV Shelf Material | Al 6005-T5 |
| Combiner box | |
| PV Fuse | |
| PV Cirrcuit Breaker | |
| PV SPD | Surge Protective Device |
| Genset output | |
| AC SPD | |
| ATS | Automatic Transfer Switch |
| RCBO | Residual current circuit breaker with over current protection |
| Inverter Output | |
| ESS-BT9-PV5-INV5 | ESS-BT9-PV10-INV10 | ESS-BT9-PV10-INV10 | ESS-BT9-PV15-INV15 | |
|
Battery: powerporter 9kwh
|
1 unit
9kwh / 48V / 176ah
|
2 unit
18kwh / 48V / 352ah
|
2 unit 18kwh / 48V / 352ah |
2 unit 18kwh / 48V / 352ah |
|
Solar panel: JT330w-24M
|
12pcs (5kw)
400w/pcs
|
12 pcs (10kw)
400w/pcs
|
25 pcs (10kw) 400w/pcs |
25 pcs (15kw) 400w/pcs |
|
Inverter: Growatt 5000TL
|
1 unit
Growatt 5000TL-HVM
|
2 unit
Growatt 5000TL-HVM
|
2 unit Growatt 5000TL-HVM |
3 unit Growatt 5000TL-HVM |
| System max. AC output power | 5kw | 10kw | 10kw | 15kw |
| Combiner box | 1 set | 1 set | 1 set | 1 set |
| Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters | 300 meters |
| PV component | 1 set | 1 set | 1 set | 1 set |
| Contact customer service and support customization | ||||
