Product Details:
|
| Product Name: | 9 Kw Off Grid Electrical System | Inverter: | Growatt 5000 TL HVM |
|---|---|---|---|
| Application: | Commercial,Home, Industrial | Energy Storage: | NRuiT Powerporter 9 Kw |
| Battery Length: | 830mm | Battery Width: | 460mm |
| Rated Power: | 5000w | Battery Height: | 200mm |
| ATS: | Automatic Transfer Switch | PV SPD: | Surge Protective Device |
| High Light: | 5000w Solar Off Grid System,176Ah Solar Off Grid System,9kw residential solar power systems |
||

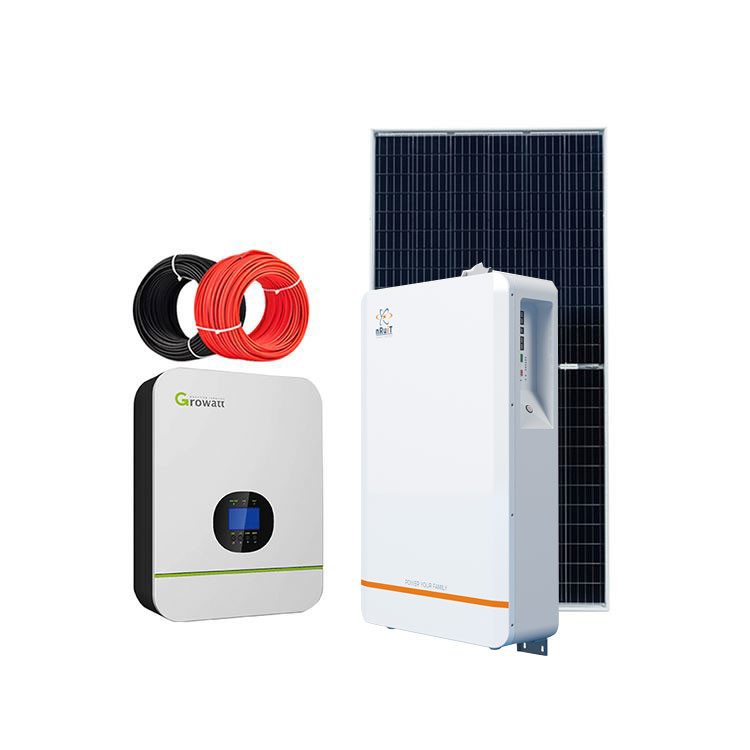

Solar Electric System Solar Off Grid Systems A set Of 9 kw For Home
Solar power is a clean energy with many advantages. A more attractive motivation is Solar cell modules can not only be used as energy equipment, it can also be used as roof and wall materials. Not only power supply and energy saving but also saves building materials. Therefore The combination of solar photovoltaic power generation technology and architecture It will have good economic benefits The future is boundless
| Battery : Powerporter 9kwh | |
| Nominal Energy | 9Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 176Ah |
| Size | 830x460x200 mm |
| Weight | 86Kg |
| Battery cell | Lithium ion battery cell (CATL ) |
| Cycle life | 6000+ (Promise) |
| Installation | Wall or floor mount |
| Inverter : Growatt 5000TL HVM | |
| Battery voltage | 48 VDC |
| Rated power | 5000W |
| Output voltage range | 230VAC±5%@50/60Hz |
| Mppt voltage range |
60VDC~115VDC
|
| Size | 350 x 455 x 130 mm |
| Weight | 11.5kg |
| Solar panel : JT400w-24M | |
| Pmax | 400w |
| Vmp | 38.23V |
| Imp | 8.65A |
| Size | 1950x990x40mm |
| Weight | 22.86Kg |
| Cell Type | Mono 156mm x 156mm |
| Cell Arrangement | 72 cell in series |
| PV component | |
| Kabel DC & MC4 Konektor | |
| PV Cirrcuit Breaker | |
| Palang Bagian | 4mm2-6mm2-Opsional |
| Nilai Tegangan | 600VDC(UL)/1000VDC(TUV) |
| PV Shelf Material | Al 6005-T5 |
| Combiner box | |
| PV Fuse | |
| PV Cirrcuit Breaker | |
| PV SPD | Surge Protective Device |
| Genset output | |
| AC SPD | |
| ATS | Automatic Transfer Switch |
| RCBO | Residual current circuit breaker with over current protection |
| Inverter Output | |
| ESS-BT9-PV5-INV5 | ESS-BT9-PV10-INV10 | ESS-BT9-PV10-INV10 | ESS-BT9-PV15-INV15 | |
|
Battery: powerporter 9kwh
|
1 unit
9kwh / 48V / 176ah
|
2 unit
18kwh / 48V / 352ah
|
2 unit 18kwh / 48V / 352ah |
2 unit 18kwh / 48V / 352ah |
|
Solar panel: JT330w-24M
|
12pcs (5kw)
400w/pcs
|
12 pcs (10kw)
400w/pcs
|
25 pcs (10kw) 400w/pcs |
25 pcs (15kw) 400w/pcs |
|
Inverter: Growatt 5000TL
|
1 unit
Growatt 5000TL-HVM
|
2 unit
Growatt 5000TL-HVM
|
2 unit Growatt 5000TL-HVM |
3 unit Growatt 5000TL-HVM |
| System max. AC output power | 5kw | 10kw | 10kw | 15kw |
| Combiner box | 1 set | 1 set | 1 set | 1 set |
| Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters | 300 meters |
| PV component | 1 set | 1 set | 1 set | 1 set |
| Contact customer service and support customization | ||||
