Product Details:
|
| Material: | Lithium Battery | Certification: | UN38.3/CE/IEC62619 |
|---|---|---|---|
| Application: | House / Car / Ship / Electric Power / Solar Panel | Charge Voltage: | 14.4V |
| Discharge Current: | 300AH | Nominal Voltage: | 12.8V |
| Protection: | Smart BMS | DOD: | 100% |
| Warranty: | 1 Years, 1year | Weight: | 29kg |
| High Light: | Lifepo4 solar deep cycle gel battery,3840Wh Solar Deep Cycle Gel Battery,24v 300ah Lithium Ion Battery |
||

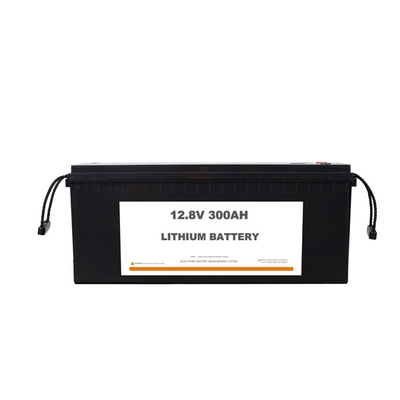

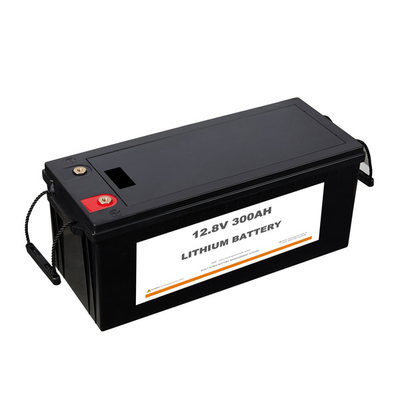

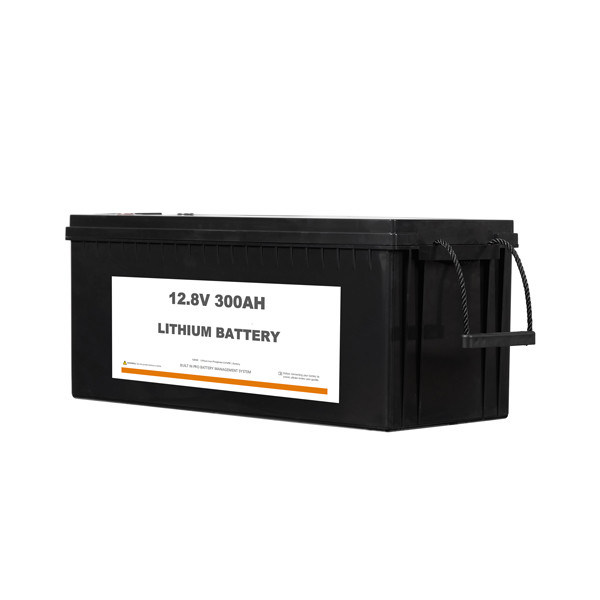

Solar Replacement 12V Lifepo4 Deep Cycle Solar Battery Pack 300ah
Safe operation with built-in system protection mechanisms
Prompt response to any problems with remote diagnostics
Local technical support from Langic engineers
|
parameter
|
Power porter
|
|
Battery parameters
|
|
|
Nominal Voltage
|
12.8V
|
|
Nominal Energy
|
3840Wh
|
|
Discharge voltage
|
10V
|
|
Charge Voltage
|
14.4V
|
|
Con. charging current
|
150A
|
|
Max. charging current
|
150A
|
|
Con. discharge current
|
200A
|
|
Max. discharge current
|
200
|
|
Con. discharge DC power
|
1920W
|
|
Max. discharge DC power
|
2560W
|
|
Operating temperature
|
Charge:0~45℃ Discharge:-20~55℃
|
|
General Data
|
|
|
Scalability
|
Communication, Bluetooth, heating, display
|
|
DOD
|
100%
|
|
Communication
|
NON
|
|
Cycle Life
|
2500cycles 0.5c 80% 100%DOD 25℃
|
|
IP Grade
|
IP65
|
|
Installation
|
Same as lead-acid battery
|
|
Dimension
|
520*240*222mm
|
|
Weight
|
29Kg
|
|
Warranty
|
One year
|
|
UN38.3 IEC62619 CE
|
|
|
* When the temperature ＜ 0℃ or ＞45℃,the product performance is limited
|
|
