Product Details:
|
| Battery Type: | Lithium Ion Battery | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Product Warranty: | 5 Years | Protection: | Smart BMS |
| Output Power: | 5000W | Application: | Solar Energy Storage, Home Appliances |
| Capacity: | 480ah | Discharge Current: | 270A |

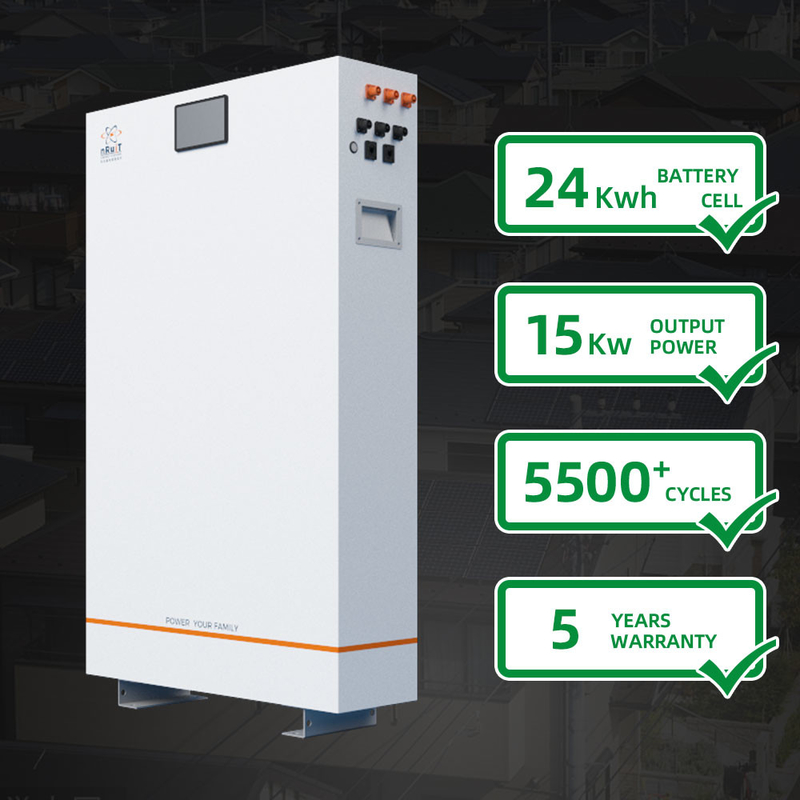

Popular Rechargeable Household Energy Storage Deep Cycle Solar Battery 24kwh
1. The main advantages of power porter 24kwh
①Higher effciency
②Higher energy density
③Simple installation method
④Using CATL lithium iron phosphate cell
2. Smart BMS management
| Powerporter | 24Kwh |
| Battery parameters | |
| Nominal Energy | 24.5Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 480ah |
| Discharge Voltage | 45~54V |
| Charge Voltage | 51.5V~51V |
| Con.charging current | 270A |
| Max.charging current | 450A |
| Con.discharge current | 270A |
| Max. discharge current | 450A |
| Con.discharge DC power | 13.5Kw |
| Max.discharge DC power(use in parallel) | 15Kw |
| Operating temperature | 0~45℃(Charge)/ -20~45°C(Discharge) |
| General temperature | |
| IP Grade | IP21 |
| Weight | 220Kg |
| Dimension(mm) | 1246x748x250 |
| Installation | floor mount |
| Scalability | NO |
| DOD | 90% |
| Communication | CAN2.0/RS485 |
| Cycle Life | 6000+ |
| Warranty | 5Years |
| UN38.3 IEC6269 CE | |
| *When the temperature <0℃ or >45℃, the product performance is limited | |
