Product Details:
|
| Battery Type: | Lithium Ion Battery | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Product Warranty: | 5 Years | Protection: | Smart BMS |
| Output Power: | 5000W | Application: | Solar Energy Storage, Home Appliances |
| Capacity: | 480ah | Discharge Current: | 270A |

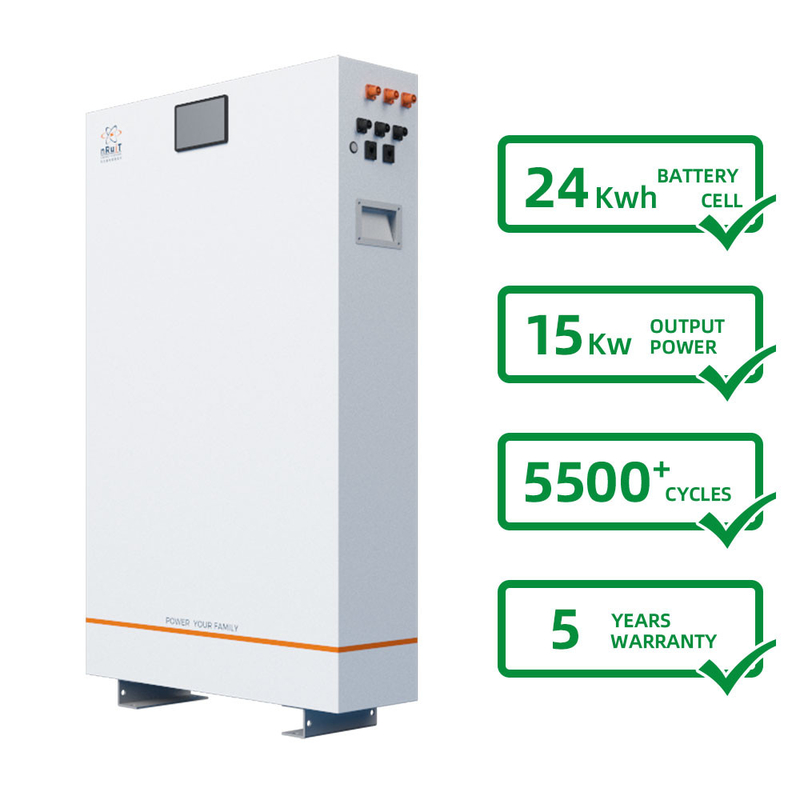

Eco-Friendly Backup Household Energy Storage Deep Cycle Solar Battery 24kwh
1. The main advantages of power porter 24kwh
Adopt more renewable energy in power transmission and distribution in order to ensure the safe, stable, efficient and low-cost operation of the micro grid.
2. Smart BMS management
| Powerporter | 24Kwh |
| Battery parameters | |
| Nominal Energy | 24.5Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 480ah |
| Discharge Voltage | 45~54V |
| Charge Voltage | 51.5V~51V |
| Con.charging current | 270A |
| Max.charging current | 450A |
| Con.discharge current | 270A |
| Max. discharge current | 450A |
| Con.discharge DC power | 13.5Kw |
| Max.discharge DC power(use in parallel) | 15Kw |
| Operating temperature | 0~45℃(Charge)/ -20~45°C(Discharge) |
| General temperature | |
| IP Grade | IP21 |
| Weight | 220Kg |
| Dimension(mm) | 1246x748x250 |
| Installation | floor mount |
| Scalability | NO |
| DOD | 90% |
| Communication | CAN2.0/RS485 |
| Cycle Life | 6000+ |
| Warranty | 5Years |
| UN38.3 IEC6269 CE | |
| *When the temperature <0℃ or >45℃, the product performance is limited | |
