Product Details:
|
| Product Name: | 5kwh Solar Electric System | Battery Type: | Lithium Ion Battery |
|---|---|---|---|
| Voltage: | 51.2V | Warranty: | 5 Years |
| Protection: | Smart BMS | Output Power: | 5000W |
| Application: | Solar Energy Storage, Home Appliances | Capacity: | 228AH |
| Discharge Current: | 180A | Weight: | 115kg |
| Power Capacity: | 12kwh | Life Span: | 10 Years |
| High Light: | 115kg Deep Cycle Solar Battery,12kwh Deep Cycle Solar Battery,200ah 48v lithium battery |
||

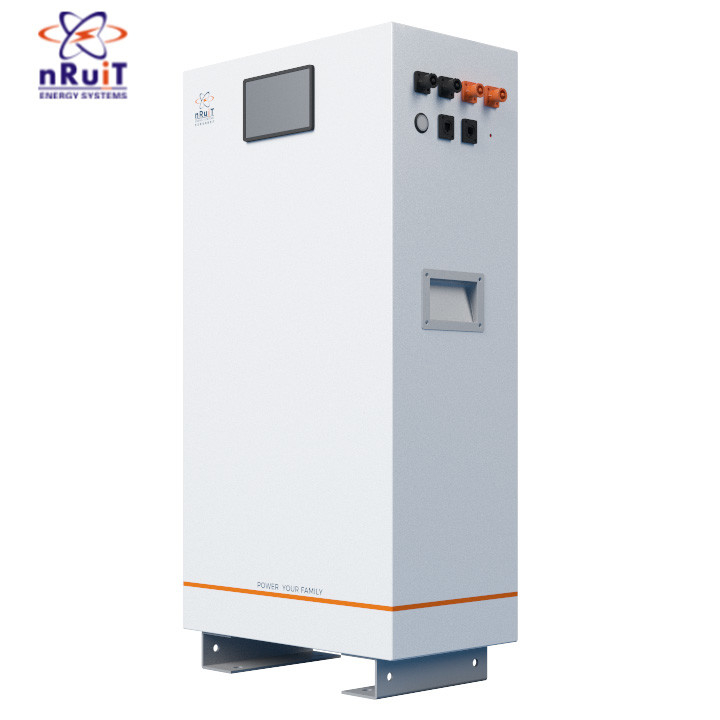

51.2V 12kwh 228ah Lithium Ion Solar Battery Backup Power For Home Use
1. The main advantages of power porter 10kwh
Higher effciency
Higher energy density
Simple installation method
Using catl grade A cell
Starting from great safety materials, system safety, and whole life cycle safety. "renewable energy + energy storage" has more advantages in cost per kWh in the whole life cycle.
2. Smart BMS management of
Overcharge Protection Overdischarge Protection
Over voltage Protection Over current Protection
Short circuit Protection Reverse connection pertection
Temperature Control Double function protection
3.specification
| Product name | Solar Electric System |
| Powerporter | 12Kwh |
| Battery parameters | |
| Nominal Voltage | 51.2V |
| Nominal Energy | 12.2Kwh |
| Capacity | 228ah |
| Discharge Voltage | 45~54V |
| Charge Voltage | 51.5V~51V |
| Con.charging current | 100A |
| Max.charging current | 150A |
| Con.discharge current | 100A |
| Max. discharge current | 150A |
| Con.discharge DC power | 9Kw |
| Max.discharge DC power(use in parallel) | 10Kw |
| Operating temperature | 0~45℃(Charge)/ -20~45°C(Discharge) |
| General temperature | |
| IP Grade | IP31 |
| Weight | 115Kg |
| Dimension(mm) | 830x460x200 |
| Installation | wall or floof mount |
| Scalability | Up to 4 units |
| DOD | 90% |
| Communication | CAN2.0/RS485 |
| Cycle Life | 6000+ |
| Warranty | 5Years |
| UN38.3 IEC6269 CE | |
| *When the temperature <0℃ or >45℃, the product performance is limited | |
