Product Details:
|
| Battery Type: | LifePO4 Battery | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Warranty: | 5 YEARS | Protection: | Smart BMS |
| Output Power: | 5000W | Application: | Solar Energy Storage, Home Appliances |
| Capacity: | 176AH | Discharge Current: | 90A |
| Weight: | 85kg | Life Span: | 10 Years |
| High Light: | 10Kw Deep Cycle Solar Battery,IP31 Deep Cycle Solar Battery,Battery Lifepo4 12v 100ah |
||

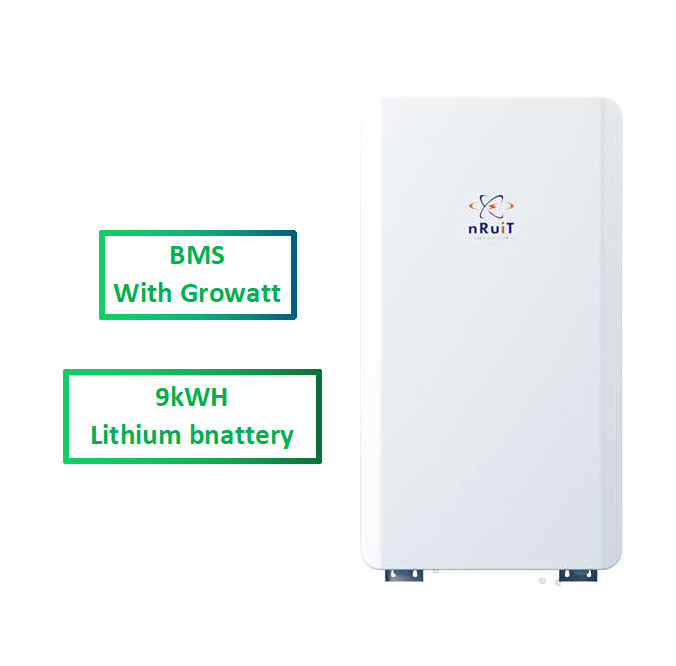

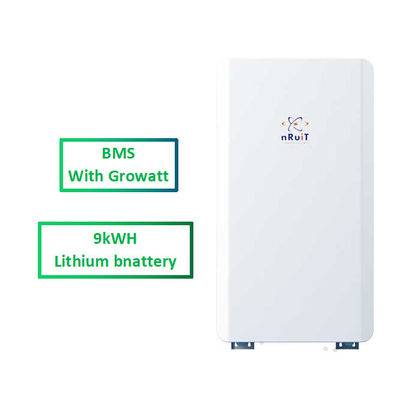

Popular Rechargeable 9 kwh 6000 Cycles Lithium Solar Batteries For Apartment
1. The main advantages of power porter 10kwh
① Higher effciency
② Higher energy density
③ Simple installation method
④ Using CATL lithium iron phosphate cell
The CATL electrochemical energy storage system has the functions of capacity increasing and expansion, backup power supply, etc.
CATL's energy storage systems provide energy storage and output management in power generation.
2. Smart BMS management
Overcharge Protection Overdischarge Protection
Over voltage Protection Over current Protection
Short circuit Protection Reverse connection pertection
Temperature Control Double function protection
| Powerporter | 9Kwh |
| Battery parameters | |
| Nominal Voltage | 51.2V |
| Nominal Energy | 9Kwh |
| Capacity | 176ah |
| Discharge Voltage | 45~54V |
| Charge Voltage | 51.5V~51V |
| Con.charging current | 90A |
| Max.charging current | 150A |
| Con.discharge current | 90A |
| Max. discharge current | 150A |
| Con.discharge DC power | 5Kw |
| Max.discharge DC power(use in parallel) | 10Kw |
| Operating temperature | 0~45℃(Charge)/ -20~45°C(Discharge) |
| General temperature | |
| IP Grade | IP31 |
| Weight | 85Kg |
| Dimension(mm) | 830x460x200 |
| Installation | wall or floof mount |
| Scalability | Up to 4 units |
| DOD | 90% |
| Communication | CAN2.0/RS485 |
| Cycle Life | 6000+ |
| Warranty | 5Years |
| UN38.3 IEC6269 CE | |
| *When the temperature <0℃ or >45℃, the product performance is limited | |
