Product Details:
|
| Battery Type: | LifePO4 Battery | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Warranty: | 5 YEARS | Protection: | Smart BMS |
| Output Power: | 5000W | Application: | C, Home Appliances |
| Capacity: | 176AH | Discharge Current: | 90A |
| Weight: | 85kg | Life Span: | 5 Years |
| High Light: | 5000W solar energy storage battery,48 volt lifepo4 battery,lifepo4 48v 200ah battery |
||

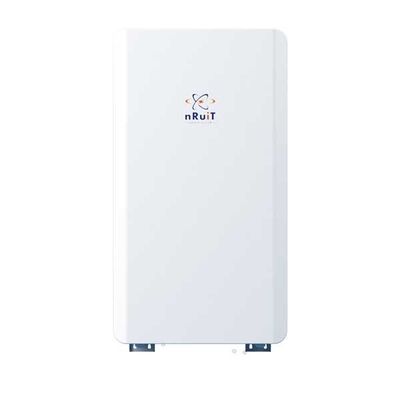

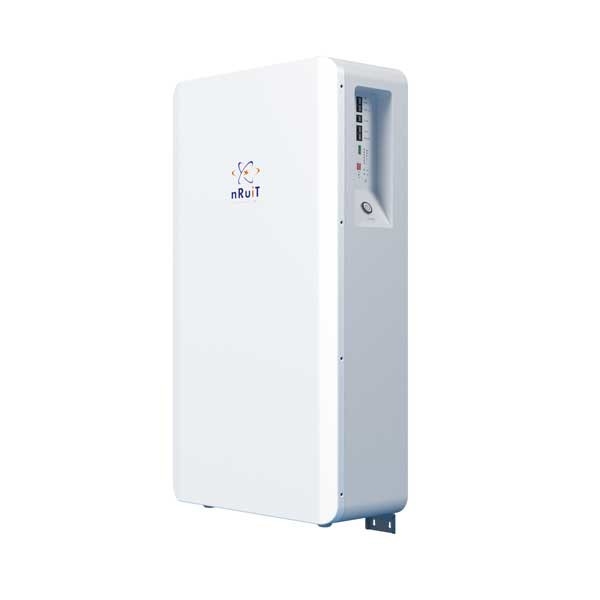

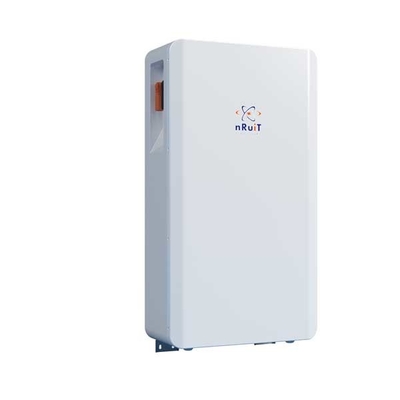

Powerporter Lithium Ion Solar Battery Electric System For Home 9kwh 6000 Cycles
1. The main advantages of power porter 10kwh
① Higher effciency
② Higher energy density
③ Simple installation method
④ Using CATL lithium iron phosphate cell
A battery system allows you to go even further by storing surplus solar generation for use at any time, increasing your savings and providing additional backup power in case of a blackout. Be part of the energy revolution by installing a battery storage system today.
Langic offers homeowners complete energy storage systems that meet the needs of a wide range of building types and demand profiles.
2. Smart BMS management
Overcharge Protection Overdischarge Protection
Over voltage Protection Over current Protection
Short circuit Protection Reverse connection pertection
Temperature Control Double function protection
| Powerporter | 9Kwh |
| Battery parameters | |
| Nominal Voltage | 51.2V |
| Nominal Energy | 9Kwh |
| Capacity | 176ah |
| Discharge Voltage | 45~54V |
| Charge Voltage | 51.5V~51V |
| Con.charging current | 90A |
| Max.charging current | 150A |
| Con.discharge current | 90A |
| Max. discharge current | 150A |
| Con.discharge DC power | 5Kw |
| Max.discharge DC power(use in parallel) | 10Kw |
| Operating temperature | 0~45℃(Charge)/ -20~45°C(Discharge) |
| General temperature | |
| IP Grade | IP31 |
| Weight | 85Kg |
| Dimension(mm) | 830x460x200 |
| Installation | wall or floof mount |
| Scalability | Up to 4 units |
| DOD | 90% |
| Communication | CAN2.0/RS485 |
| Cycle Life | 6000+ |
| Warranty | 5Years |
| UN38.3 IEC6269 CE | |
| *When the temperature <0℃ or >45℃, the product performance is limited | |
