Product Details:
|
| Battery Type: | LifePO4 Battery | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Warranty: | 5 YEARS | Protection: | Smart BMS |
| Output Power: | 5000W | Application: | Solar Energy Storage, Home Appliances |
| Capacity: | 176AH | Discharge Current: | 90A |
| Weight: | 85kg | Life Span: | 10 Years |
| High Light: | CATL Deep Cycle Solar Battery,54V Deep Cycle Solar Battery,100ah portable solar battery bank |
||

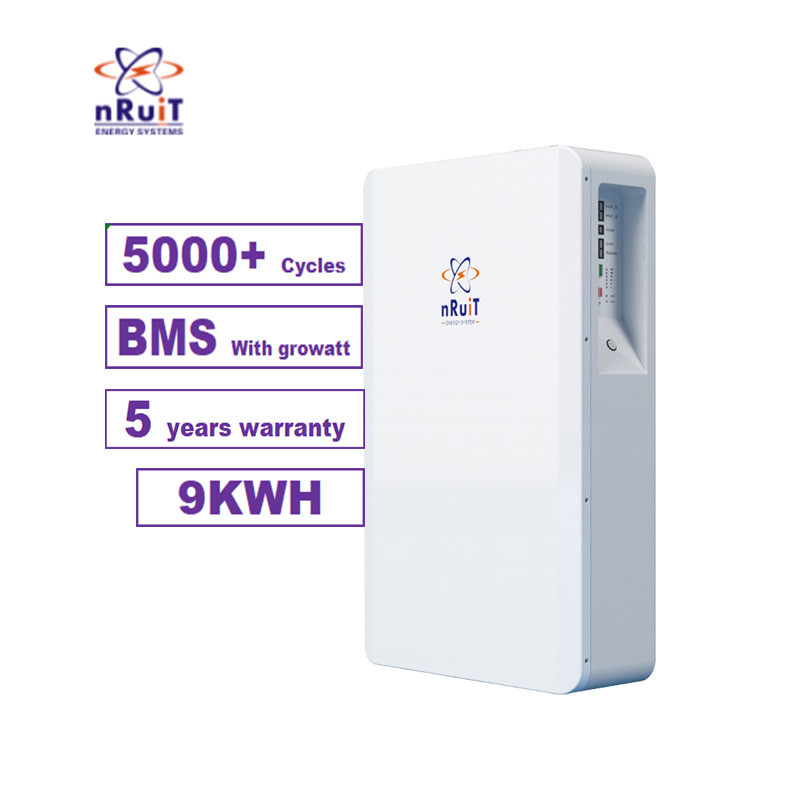

Powerporter Lithium Battery Solar Electric System for home 9kwh 6000 Cycles
1. The main advantages of power porter 10kwh
① Higher effciency
② Higher energy density
③ Simple installation method
④ Using CATL lithium iron phosphate cell
2. Smart BMS management
Overcharge Protection Overdischarge Protection
Over voltage Protection Over current Protection
Short circuit Protection Reverse connection pertection
Temperature Control Double function protection
| Powerporter | 9Kwh |
| Battery parameters | |
| Nominal Voltage | 51.2V |
| Nominal Energy | 9Kwh |
| Capacity | 176ah |
| Discharge Voltage | 45~54V |
| Charge Voltage | 51.5V~51V |
| Con.charging current | 90A |
| Max.charging current | 150A |
| Con.discharge current | 90A |
| Max. discharge current | 150A |
| Con.discharge DC power | 5Kw |
| Max.discharge DC power(use in parallel) | 10Kw |
| Operating temperature | 0~45℃(Charge)/ -20~45°C(Discharge) |
| General temperature | |
| IP Grade | IP31 |
| Weight | 85Kg |
| Dimension(mm) | 830x460x200 |
| Installation | wall or floof mount |
| Scalability | Up to 4 units |
| DOD | 90% |
| Communication | CAN2.0/RS485 |
| Cycle Life | 6000+ |
| Warranty | 5Years |
| UN38.3 IEC6269 CE | |
| *When the temperature <0℃ or >45℃, the product performance is limited | |
