Product Details:
|
| Battery Type: | Life PO4 | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Warranty: | 5 Years | Protection: | Smart BMS |
| Output Power: | 5000W | Application: | Solar Energy Storage, Home Appliances |
| Capacity: | 200AH | Discharge Current: | 90A |
| Weight: | 93KG | ||
| High Light: | 51.2V Deep Cycle Solar Battery,ESS Deep Cycle Solar Battery,solar battery 10kwh |
||

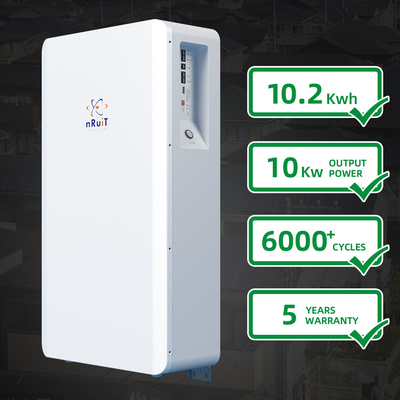

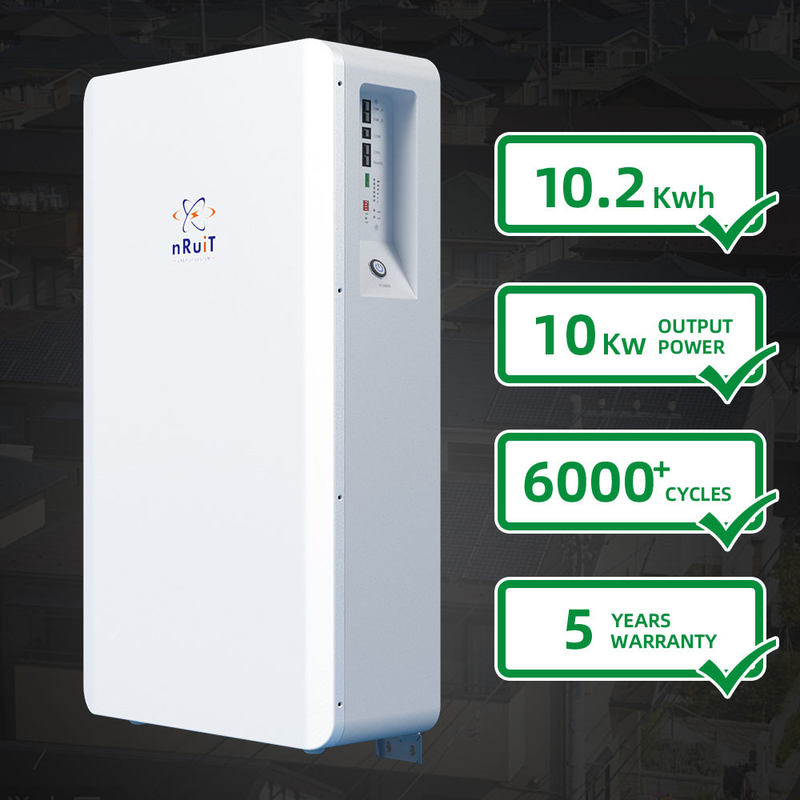

Home Renewable ESS Lithium Solar Batteries 10Kwh Deep Cycle Battery
1. The main advantages of power porter 10kwh
Higher effciency
Higher efficiency
Simple installation method
Using catl lithium iron phosphate cell
Ultra-wide working temperature
Super long life to meet the needs of users
We committed to provide safe and reliable battery product solutions for different users.
2. Smart BMS management
Overcharge Protection Overdischarge Protection
Over voltage Protection Over current Protection
Short circuit Protection Reverse connection pertection
Temperature Control Double function protection
3. Parameters on power porter 10kwh
|
Powerporter |
10Kwh |
|
Battery parameters |
|
|
Nominal Voltage |
51.2V |
|
Nominal Energy |
10.2Kwh |
|
Capacity |
202ah |
|
Discharge Voltage |
45~54V |
|
Charge Voltage |
51.5V~51V |
|
Con.charging current |
100A |
|
Max.charging current |
150A |
| Con.discharge current | 100A |
| Max. discharge current | 150A |
| Con.discharge DC power | 5Kw |
| Max.discharge DC power(use in parallel) | 10Kw |
| Operating temperature | 0~45℃(Charge)/ -20~45°C(Discharge) |
| General temperature | |
| IP Grade | IP31 |
| Weight | 93Kg |
| Dimension(mm) | 830x460x200 |
| Installation | wall or floof mount |
| Scalability | Up to 4 units |
| DOD | 90% |
| Communication | CAN2.0/RS485 |
| Cycle Life | 6000+ |
| Warranty | 5Years |
| UN38.3 IEC6269 CE | |
| *When the temperature <0℃ or >45℃, the product performance is limited | |
