Product Details:
|
| Battery Type: | Life PO4 | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Warranty: | 5 Years | Protection: | Smart BMS |
| Output Power: | 5000W | Application: | Solar Energy Storage, Home Appliances |
| Capacity: | 200AH | Discharge Current: | 90A |
| Weight: | 93KG | ||
| High Light: | 5000W Deep Cycle Solar Battery,ESS Deep Cycle Solar Battery,10kw lithium ion battery |
||

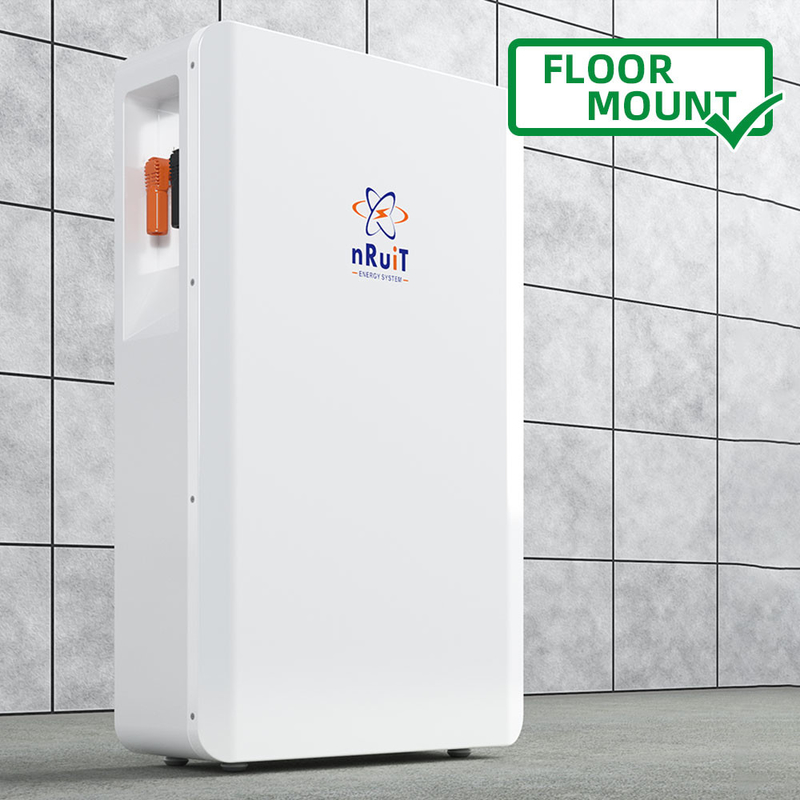

Lithium Solar Batteries 10Kwh Long Lifespan China Manufacturer For Home ESS
1. The main advantages of power porter 10kwh
①Higher effciency
②Higher efficiency
③Simple installation method
④Using catl lithium iron phosphate cell
We committed to create a full-scenario solution for the energy Internet to help "carbon peak and carbon neutral" and combinate the superior industry resources,forming a leading technology
2. Smart BMS management
Overcharge Protection Overdischarge Protection
Over voltage Protection Over current Protection
Short circuit Protection Reverse connection pertection
Temperature Control Double function protection
3. Parameters on power porter 10kwh
|
Powerporter |
10Kwh |
|
Battery parameters |
|
|
Nominal Voltage |
51.2V |
|
Nominal Energy |
10.2Kwh |
|
Capacity |
202ah |
|
Discharge Voltage |
45~54V |
|
Charge Voltage |
51.5V~51V |
|
Con.charging current |
100A |
|
Max.charging current |
150A |
| Con.discharge current | 100A |
| Max. discharge current | 150A |
| Con.discharge DC power | 5Kw |
| Max.discharge DC power(use in parallel) | 10Kw |
| Operating temperature | 0~45℃(Charge)/ -20~45°C(Discharge) |
| General temperature | |
| IP Grade | IP31 |
| Weight | 93Kg |
| Dimension(mm) | 830x460x200 |
| Installation | wall or floof mount |
| Scalability | Up to 4 units |
| DOD | 90% |
| Communication | CAN2.0/RS485 |
| Cycle Life | 6000+ |
| Warranty | 5Years |
| UN38.3 IEC6269 CE | |
| *When the temperature <0℃ or >45℃, the product performance is limited | |
