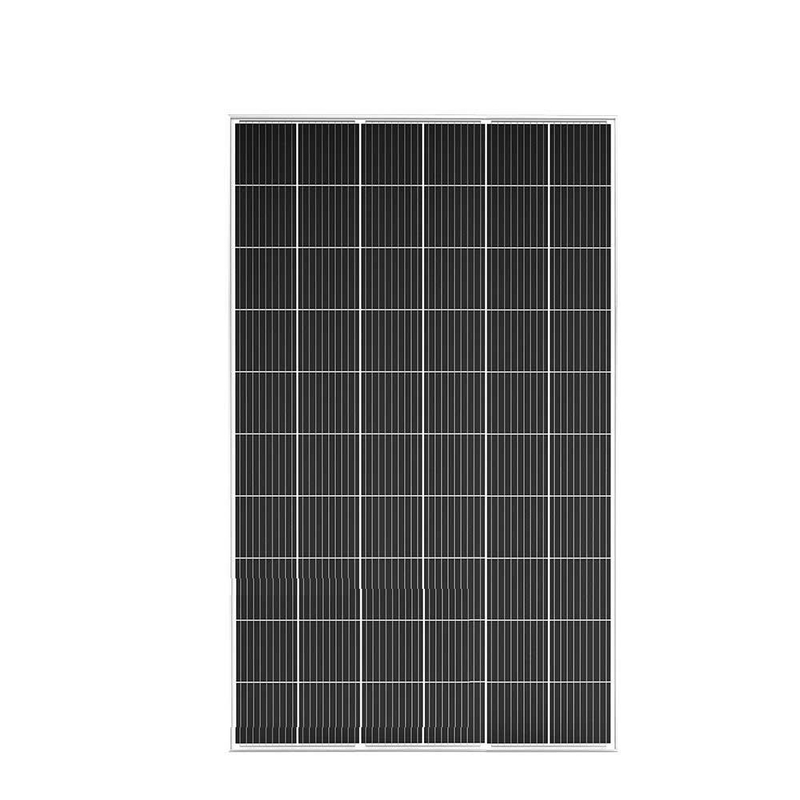

Tesla Roof Mono Cell Solar Panel PERC 120W House Solar System

Tesla Roof Mono Cell Solar Panel PERC 120W House Solar System
Tesla Roof Mono Cell Solar Panel PERC 120W House Solar System

Large Image :  Tesla Roof Mono Cell Solar Panel PERC 120W House Solar System

Product Details:
Place of Origin: Guangdong,China
Brand Name: FUSOLI
Certification: CE/ce/IEC/ISO/SAAR/PIB/CEC
Model Number: JT120-12M
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.25/W
Packaging Details: Carton packing
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 120000 pieces per month

Tesla Roof Mono Cell Solar Panel PERC 120W House Solar System

System Type: Off-grid Solar PV System System Efficiency: 22%
Application: Solar Power System Warranty: 12 YEARS
Type: Mono Technology Load: House Appliances
Solar Panel:: Mono Silicon 120w Optimum Operating Voltage: 18.11V
High Light:

Tesla Roof Mono Cell Solar Panel


120W Mono Cell Solar Panel


perc solar panel

1. Tesla roof Mono Cell Solar Panel PERC Solar 120W House Appliances Solar System


1. Company Introduction

There are more than 10000 square meters and large production equipment in the factory and has already achieved honors such as CQC certificates such as National Electrical Applicance, ISO 9001 international quality system certificate. We are excellent and honest enterprise of China's solar PV engineering enterprise in China.


2. Main Values of the company

We are a high-tech enterprise specializing in R&D, production and sales of supporting materials for solar energy systems. The company's core values are "customer-centered, contributor-oriented, benchmarking innovation, and pragmatic" . With the mission of "changing energy structure and assuming responsibility for the future", the company focuses on product quality and manufacturing quality while striving to provide the overall solution of clean energy


3. Chief Advantages Of Fusoli solar panels


① Multi busbar technology

Power output and reliability effectively improved by the help of better light utilization and current collection capabilities


② Adaptability to harsh environments

Have passed the tests on salt spray and high ammonia corrosion


③ Better resistance to hot spots

By optimizing the current design and working condition, the problems on temperature coefficient and resistance to hot spots have been solved


④ Load capacity

The whole component has been passed the certification of wind load on the case of 2400pa and snow load of 5400pa


⑤ Anti-PID guarantee

Minimize the attenuation probability caused by PID phenomenon by battery perduction technology optimozation and material contorol


⑥ Industry-leading linear warranty

12 years of material warranty and with 25 years of Line property


4.  Main Technology

1) Double-sided power generation technology is one of the technological innovations The double-sided module can absorb sunlight from the front and back of the module at the same time to generate electricity,and the power generation gain can reach to a high efficiency

2)Half-cell module technology
In a half cell, the current through each main grid is reduced to 1/2 of the original
Therefore, the internal power consumption of the half-chip module is reduced to 1/4 of the whole-chip module


3) Less shadow occlusion loss

 Under the same occlusion situation, the shadow occlusion loss of the half-cell component is less than that of the entire component


4) Low Working Temperature

After the R&D PV test system measures the working temperature of the half-cell module and the conventional module,
the temperature of the half-cell module is ~2 degrees Celsius lower than that of the conventional module


5)High Output


5. On Monocrystalline silicon wafer technology
The size of the silicon wafer has a high degree of matching with existing PERC battery equipment and strong compatibility, which is in line with reducing the cost of electricity; it adapts to the development trend of "large-size silicon wafers" and has high cost performance



6.On production qualifications


Model Type JT120-12M
Nominal Maximum Power(Pmax) 120W
Optimum Operating Vo;tage(Vmp) 18.11V
Optimum Operating Current(Imp) 6.62A
 Open Circuit Voltage(Voc) 22.5V
Short Circuit Current(Isc) 6.87V
Module Effciency 21.27%
Cell  Effciency 22%
Power Tolerance 0 to +3%
Maximum Sytem Voltage DC 1000V
Operating Temperature -40℃~+85℃
Maximum Series Fuse Rating 20A
Cell Type Mono 120x120mm
Cell Arrangement 36 cells in series
Dimensions 1200x540x30mm
Weight 8.23kg(approx)
Front Cover 3.2mm tempered glass
Frame Material Anodized aluminium alloy
J-Box IP67,3 diodes
Cable 4mm(IEC)/12AWG(UL),1000mm (650mm is optional)
Connectors MC4 or MC4 compatible
Temperature Coefficient(Pmax) -0.420%  /  ℃
Temperature Coefficient(Voc) -0.346% / ℃
Temperature Coefficient(Isc) 0.065% / ℃
Norminal Operating Cell Temperature 45.3±2℃

Tesla Roof Mono Cell Solar Panel PERC 120W House Solar System 0Tesla Roof Mono Cell Solar Panel PERC 120W House Solar System 1Tesla Roof Mono Cell Solar Panel PERC 120W House Solar System 2
