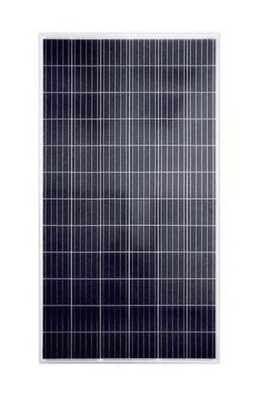

Crystalline Silicon Mono Cell Solar Panel PERC 120W 22% PIB

Certification
China Huagong Langic Digital Energy Technology (Guangdong) Co., Ltd certification
Customer Reviews
good quality

—— Mike

I'm Online Chat Now

Crystalline Silicon Mono Cell Solar Panel PERC 120W 22% PIB

Crystalline Silicon Mono Cell Solar Panel PERC 120W 22% PIB
Crystalline Silicon Mono Cell Solar Panel PERC 120W 22% PIB

Large Image :  Crystalline Silicon Mono Cell Solar Panel PERC 120W 22% PIB

Product Details:
Place of Origin: Guangdong,China
Brand Name: FUSOLI
Certification: CE/ce/IEC/ISO/SAAR/PIB/CEC
Model Number: JT120-12M
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.25/W
Packaging Details: Carton packing
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 120000 pieces per month

Crystalline Silicon Mono Cell Solar Panel PERC 120W 22% PIB

Description
System Type: Off-grid Solar PV System System Efficiency: 22%
Application: Solar Power System Warranty: 12 YEARS
Type: Mono Technology Load: House Appliances
Solar Panel:: Mono Silicon 120w Optimum Operating Voltage: 18.11V
High Light:

PIB Mono Cell Solar Panel

,

22% Mono Cell Solar Panel

,

120W crystalline silicon solar panels

1. Tesla roof Mono Cell Solar Panel PERC Solar 120W House Appliances Solar System



1. Company Introduction

There are more than 10000 square meters and large production equipment in the factory and has already achieved honors such as CQC certificates such as National Electrical Applicance, ISO 9001 international quality system certificate. We are excellent and honest enterprise of China's solar PV engineering enterprise in China.





2. Chief Advantages Of Fusoli solar panels



① Multi busbar technology

Power output and reliability effectively improved by the help of better light utilization and current collection capabilities



② Adaptability to harsh environments

Have passed the tests on salt spray and high ammonia corrosion



③ Better resistance to hot spots

By optimizing the current design and working condition, the problems on temperature coefficient and resistance to hot spots have been solved



④ Load capacity

The whole component has been passed the certification of wind load on the case of 2400pa and snow load of 5400pa



⑤ Anti-PID guarantee

Minimize the attenuation probability caused by PID phenomenon by battery perduction technology optimozation and material contorol



⑥ Industry-leading linear warranty

12 years of material warranty and with 25 years of Line property



3. project cases
We can provide household solutions to bring considerable economic benefits to customers and at the same time, we give the roof beautiful appearance, environmental protection by relying on industry-leading product quality, standardized technical team and standardized design system





4. Full life cycle customer service
We can provide power station consulting, site survey, program design, declaration, project investment, project general contracting, operation and maintenance, physical examination and other full life cycle services



5.On production qualifications



ELECTRICAL SPECIFICATIONS
Model Type JT120-12M
Nominal Maximum Power(Pmax) 120W
Optimum Operating Vo;tage(Vmp) 18.11V
Optimum Operating Current(Imp) 6.62A
 Open Circuit Voltage(Voc) 22.5V
Short Circuit Current(Isc) 6.87V
Module Effciency 21.27%
Cell  Effciency 22%
Power Tolerance 0 to +3%
Maximum Sytem Voltage DC 1000V
Operating Temperature -40℃~+85℃
Maximum Series Fuse Rating 20A
MECHANICAL DATA
Cell Type Mono 120x120mm
Cell Arrangement 36 cells in series
Dimensions 1200x540x30mm
Weight 8.23kg(approx)
Front Cover 3.2mm tempered glass
Frame Material Anodized aluminium alloy
J-Box IP67,3 diodes
Cable 4mm(IEC)/12AWG(UL),1000mm (650mm is optional)
Connectors MC4 or MC4 compatible
TEMPERATURE CHARACTERISTICS
Temperature Coefficient(Pmax) -0.420%  /  ℃
Temperature Coefficient(Voc) -0.346% / ℃
Temperature Coefficient(Isc) 0.065% / ℃
Norminal Operating Cell Temperature 45.3±2℃

Crystalline Silicon Mono Cell Solar Panel PERC 120W 22% PIB 0Crystalline Silicon Mono Cell Solar Panel PERC 120W 22% PIB 1Crystalline Silicon Mono Cell Solar Panel PERC 120W 22% PIB 2
