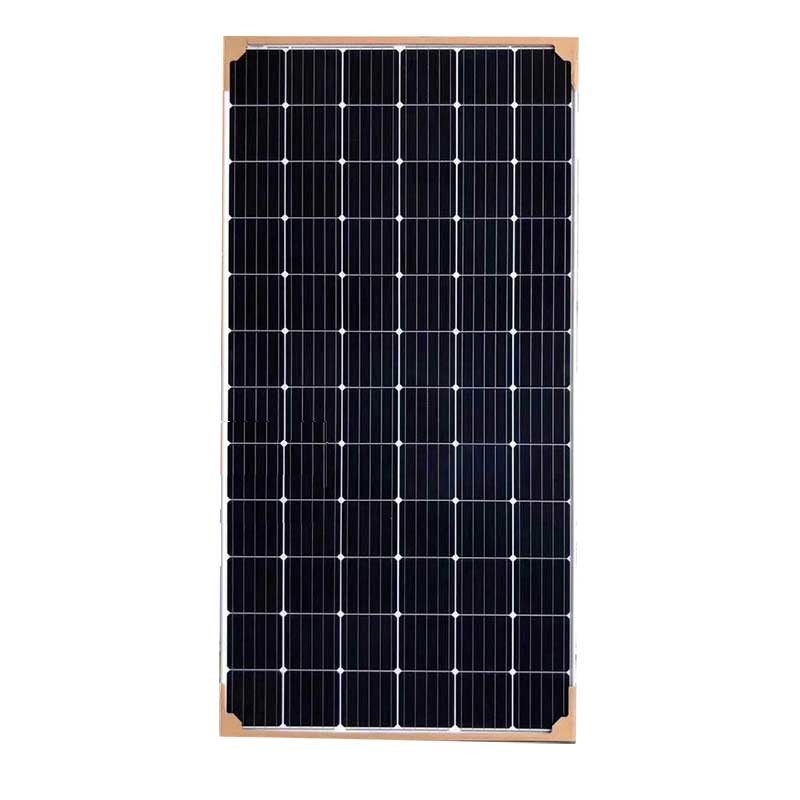

170w 150w Mono Cell Solar Panel Kit 180w Module

China Huagong Langic Digital Energy Technology (Guangdong) Co., Ltd certification
Customer Reviews
good quality

—— Mike

I'm Online Chat Now

170w 150w Mono Cell Solar Panel Kit 180w Module

170w 150w Mono Cell Solar Panel Kit 180w Module
170w 150w Mono Cell Solar Panel Kit 180w Module

Large Image :  170w 150w Mono Cell Solar Panel Kit 180w Module

Product Details:
Place of Origin: Guangdong,China
Brand Name: FUSOLI
Certification: CE/IEC/ISO/SAAR/PIB/CEC
Model Number: JT150-180-24M
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.25/W
Packaging Details: Carton packing
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100000 pieces per month

170w 150w Mono Cell Solar Panel Kit 180w Module

Cell Efficiency: 17.45~20% Application: Solar Power Supply
Process Material Warranty: 12 Years Type: PERC
Max. Voltage: 17.85V Norminal Max. Power: 150W-180W
Weight: 11.18Kg Certificate: CE/IEC/ISO/SAAR/PIB/CEC
High Light:

170w Mono Cell Solar Panel


150w Mono Cell Solar Panel


150w solar panel kit

Solar Panels Mono Cell Solar Panel 150w 160w 170w 180w High Power Solar Module
1. Introduction
we have powerful technical support, modern production workshops with more than 10000 square meters and large production equipment and
have successfully obtained many honors such as CQC certificate of National Electrical Applicance, ISO 9001 international quality system
certificate, excellent and honest enterprise of China's solar PV engineering and 3A credit enterprise of China.



2. Main values of the company


Adhering to customer value as the core, and we are committed to creating a beautiful and livable green home for all mankind.
We provide a one-stop solution for the green energy industry by providing high value-added products to make more solutions for clean energy

3. Main Advantages

① Multi busbar technology

Better light utilization and current collection capabilities which can effectively improve power output and reliability.


② Adaptability to harsh environments
passed related tests on salt spray and high ammonia corrosion by the third-party certification.

③ Better resistance to hot spots
By optimizing the current design and working condition current, a better temperature coefficient and resistance to hot spots can be oachieved.

④ Load capacity
The whole component has passed the certification of wind load of 2400pa and snow load of 5400pa

⑤ Anti-PID guarantee
minimize the attenuation probability caused by PID phenomenon through battery perduction technology
optimozation and material contorol

⑥ Industry-leading linear warranty
12 yeras Process material warranty
25 years Line property



4.  On Monocrystalline silicon wafer technology
The size of the silicon wafer has a high degree of matching with existing PERC battery equipment and strong compatibility, which is in line with reducing the cost of electricity; it adapts to the development trend of "large-size silicon wafers" and has high cost performance
5. Electrical Specifications

Model Item JT150-24M JT160-24M JT170-24M JT180-24M
Nominal Maximum Power 150W 160W 170W 180W
Optimum Operating Voltage 17.85V 180.8V 18.12V 18.15V
Optimum Operating Current 8.41A 8.85A 9.38A 9.92A
Open Circuit Voltage 21.96V 22.11V 22.46V 22.64V
Short Circuit Current 8.61A 9.05A 9.70A 10.19A
Module Effciency 15.00% 16.00% 17.00% 18.00%
Cell Effciency 17.45% 18.61% 18.80% 20.20%
Power Tolerance 0 to +3%
Maximum Sytem Voltage DC 1000V
Operating Temperature -40℃~+85℃
Maximum Series Fuse Rating 15A
Cell Type Mono 156mmx156mm
Cell Arrangement 36 cells in series
Dimensions 1480x680x35mm
Weight 11.18kg(approx)
Frame Cover 3.2mm tempered glass
Frame Material Anodized aluminium alloy
J-Box IP67,3 diodes
Cable 2.55m㎡(IEC) / 12AWG(UL),900mm(650mm is optional)
Connectors MC4 or MC4 compatible
Temperature Coefficient -0.420% / ℃
Temperature Coefficient -0.346% / ℃
Temperature Coefficient 0.065% / ℃
Norminal Operating Cell Temperature 45.3±2℃
