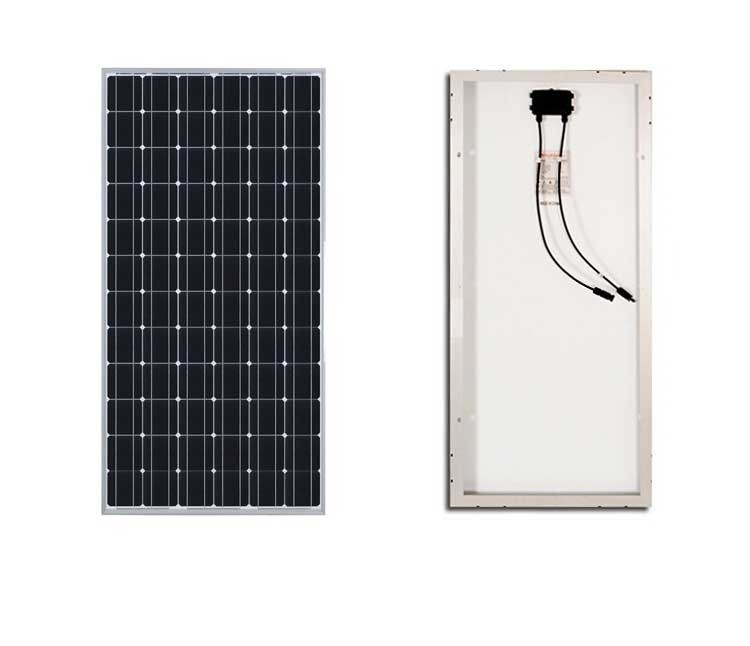

36 Cell 180w Mono Cell Solar Panel 17.85V 20% Cell Efficiency

China Huagong Langic Digital Energy Technology (Guangdong) Co., Ltd certification
Customer Reviews
good quality

—— Mike

I'm Online Chat Now

36 Cell 180w Mono Cell Solar Panel 17.85V 20% Cell Efficiency

36 Cell 180w Mono Cell Solar Panel 17.85V 20% Cell Efficiency
36 Cell 180w Mono Cell Solar Panel 17.85V 20% Cell Efficiency

Large Image :  36 Cell 180w Mono Cell Solar Panel 17.85V 20% Cell Efficiency

Product Details:
Place of Origin: Guangdong,China
Brand Name: FUSOLI
Certification: CE/IEC/ISO/SAAR/PIB/CEC
Model Number: JT150-180-24M
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.25/W
Packaging Details: Carton packing
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 100000 pieces per month

36 Cell 180w Mono Cell Solar Panel 17.85V 20% Cell Efficiency

Cell Efficiency: 17.45~20% Application: Solar Power Supply
Process Material Warranty: 12 Years Type: PERC
Max. Voltage: 17.85V Norminal Max. Power: 150W-180W
Weight: 11.18Kg Certificate: CE/IEC/ISO/SAAR/PIB/CEC
High Light:

180w Mono Cell Solar Panel


17.85V Mono Cell Solar Panel


36 cell solar panel

Solar Panels Mono Cell Solar Panel 150w 160w 170w 180w High Power Solar Module
1. Introduction
we have powerful technical support, modern production workshops with more than 10000 square meters and large production equipment and
have successfully obtained many honors such as CQC certificate of National Electrical Applicance, ISO 9001 international quality system
certificate, excellent and honest enterprise of China's solar PV engineering and 3A credit enterprise of China.



2. Company Main Values


Pursuing the quality concept of "sunshine quality, serving the world", and adhering to the business philosophy of "customer value, customer trust;
achieving employees, giving back to shareholders; producing green and green production, we build  independent research and independent Innovation system to achieve the aim of "globalization, informatization, and professionalization"

3. Main Advantages

① Multi busbar technology

Better light utilization and current collection capabilities which can effectively improve power output and reliability.


② Adaptability to harsh environments
passed related tests on salt spray and high ammonia corrosion by the third-party certification.

③ Better resistance to hot spots
By optimizing the current design and working condition current, a better temperature coefficient and resistance to hot spots can be oachieved.

④ Load capacity
The whole component has passed the certification of wind load of 2400pa and snow load of 5400pa

⑤ Anti-PID guarantee
minimize the attenuation probability caused by PID phenomenon through battery perduction technology
optimozation and material contorol

⑥ Industry-leading linear warranty
12 yeras Process material warranty
25 years Line property


4. Main Technology

1) High Output


2)Less shadow occlusion

Under the same occlusion situation, the shadow occlusion loss of the half-cell component is less than that of the entire component


3)Double-sided power generation technology

It is one of the technological innovations, the double-sided module can absorb sunlight from the front and back of the module at the same time to generate electricity,and the power generation gain can reach to a high efficiency


4) Half-cell module technology
In a half cell, the current through each main grid is reduced to 1/2 of the original
Therefore, the internal power consumption of the half-chip module is reduced to 1/4 of the whole-chip module


5)Low Working Temperature

After the R&D PV test system measures the working temperature of the half-cell module and the conventional module,
the temperature of the half-cell module is ~2 degrees Celsius lower than that of the conventional module

5. Electrical Specifications

Model Item JT150-24M JT160-24M JT170-24M JT180-24M
Nominal Maximum Power 150W 160W 170W 180W
Optimum Operating Voltage 17.85V 180.8V 18.12V 18.15V
Optimum Operating Current 8.41A 8.85A 9.38A 9.92A
Open Circuit Voltage 21.96V 22.11V 22.46V 22.64V
Short Circuit Current 8.61A 9.05A 9.70A 10.19A
Module Effciency 15.00% 16.00% 17.00% 18.00%
Cell Effciency 17.45% 18.61% 18.80% 20.20%
Power Tolerance 0 to +3%
Maximum Sytem Voltage DC 1000V
Operating Temperature -40℃~+85℃
Maximum Series Fuse Rating 15A
Cell Type Mono 156mmx156mm
Cell Arrangement 36 cells in series
Dimensions 1480x680x35mm
Weight 11.18kg(approx)
Frame Cover 3.2mm tempered glass
Frame Material Anodized aluminium alloy
J-Box IP67,3 diodes
Cable 2.55m㎡(IEC) / 12AWG(UL),900mm(650mm is optional)
Connectors MC4 or MC4 compatible
Temperature Coefficient -0.420% / ℃
Temperature Coefficient -0.346% / ℃
Temperature Coefficient 0.065% / ℃
Norminal Operating Cell Temperature 45.3±2℃
