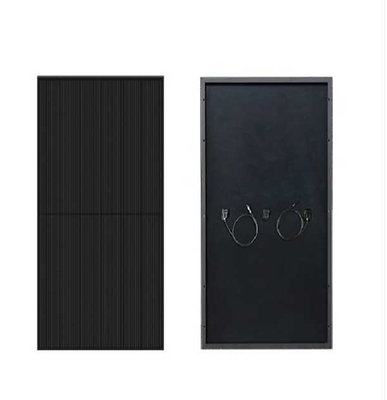

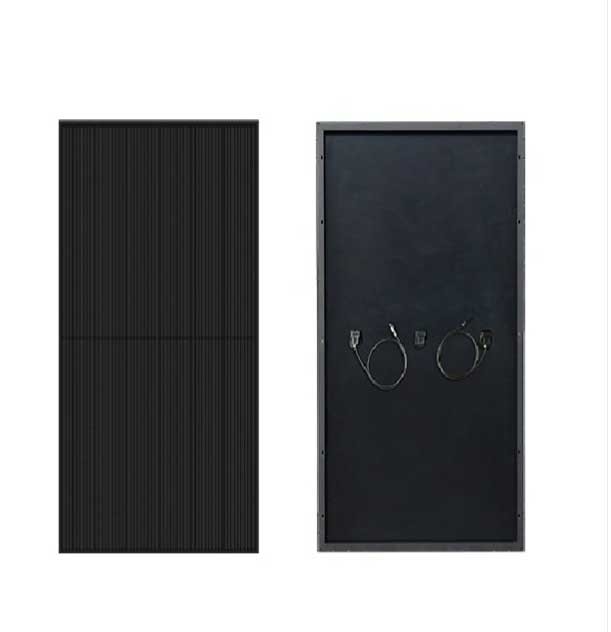

High Power 305w Mono Cell Solar Panel 310w 320w 330w 340w

China Huagong Langic Digital Energy Technology (Guangdong) Co., Ltd certification
Customer Reviews
good quality

—— Mike

I'm Online Chat Now

High Power 305w Mono Cell Solar Panel 310w 320w 330w 340w

High Power 305w Mono Cell Solar Panel 310w 320w 330w 340w
High Power 305w Mono Cell Solar Panel 310w 320w 330w 340w

Large Image :  High Power 305w Mono Cell Solar Panel 310w 320w 330w 340w

Product Details:
Place of Origin: Guangdong,China
Brand Name: FUSOLI
Certification: CE/IEC/ISO/SAAR/PIB/CEC
Model Number: JT305 24M-340 24M
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.25/W
Packaging Details: Carton packing
Delivery Time: 5-10 days
Payment Terms: T/T
Supply Ability: 13000 pieces per month

High Power 305w Mono Cell Solar Panel 310w 320w 330w 340w

Product Name: Monn Cell Solar Panel Brand Name: FUSOLI
Cell Efficiency: 20.5% Application: Solar Power Backup
Process Material Warranty: 12 Years Max. System Voltage: DC 1000W
Max. Voltage: 44.78 V Max.power: 305W-340W
Weight: 22.86Kg Module Effiency: 18.6%
High Light:

330w Mono Cell Solar Panel


320w Mono Cell Solar Panel


305w Solar Panel

solaredge monitoring Mono Cell Solar panel 305w 310w 320w 330w 340w high power


1. On production qualifications
With more than 10000 square meters and good sustainable equipments, we have achieved honors on CQC certifications of National Electrical Applicance, ISO 9001 international quality system certificate, which helps us to be an excellent enterprise in solar  engineering and 3A credit in China.



2. The Main values of company

Pursuing the quality concept of "sunshine quality, serving the world" and based on independent research and Innovation towards the direction of "globalization, informatization, and professionalization"


3. Dominant Advantages on equipment

①Multi busbar technology

With better light utilization and current collection capabilities, it can greatly maximum the power output and reliability


②Adaptability to harsh environments
Passed kinds of tests on salt spray and high ammonia corrosion by the
 third-party authorized organization in China


③Better resistance to hot spots
By optimizing the design on current condition
, a better temperature coefficient and resistance to hot spots can be realized


④Load capacity
The whole component has been passed the tests on wind
 load of 2400pa and snow load of 5400pa and has got the related certifications


⑤Anti-PID guarantee
Have achieved the minimization of  the attenuation probability caused by PID phenomenon by battery perduction optimozation technology and material contorol


⑥Industry-leading linear warranty
Can ensure 12 years process material warranty and 25 years Line property



4. Main Technology on the Solar Panels

  • Half-cell module technology
  • In a half cell, the current through each main grid is reduced to 1/2 of the original
    Therefore, the internal power consumption of the half-chip module is reduced to 1/4 of the whole-chip module


  • Less shadow occlusion loss
  • Under the same occlusion situation, the shadow occlusion loss of the half-cell component is less than that of the entire component


  • Low Working Temperature
  • After the R&D PV test system measures the working temperature of the half-cell module and the conventional module,
    the temperature of the half-cell module is ~2 degrees Celsius lower than that of the conventional module


  • High Output


   5. Data Sheet of the types


Model Type JT305-24M JT310-24M JT320-24M JT330-24M JT340-24M
Nominal Maximum Power(Pmax) 305W 310W 320W 330W 340W
Optimum Operating Vo;tage(Vmp) 37.72V 37.80V 38.10V 38.23V 38.59V
Optimum Operating Current(Imp) 8.09A 8.20A 8.40A 8.64A 8.82A
Open Circuit Voltage(Voc) 44.78V 44.63V 45.37V 45.50V 46.22V
Short Circuit Current(Isc) 8.66A 8.70A 8.95A 9.19A 9.33A
Module Effciency 15.72% 15.98% 16.58% 17.10% 17.62%
Cell Effciency 17.93% 18.22% 18.60% 18.80% 19.40%
Power Tolerance 0 to +3%
Maximum Sytem Voltage DC 1000V
Operating Temperature -40℃~+85℃
Maximum Series Fuse Rating 20A
Cell Type mono 156mmx156mm
Cell Arrangement 72 cells in series
Dimensions 1950x990x40mm
Weight 22.86kg(approx)
Frame Cover 3.2mm temper glass
Frame Material Anodized aluminium alloy
J-Box IP67,3 diodes
Cable 4mm(IEC) / 12AWG (UL),1000mm(650mm is optional)
Connectors MC4 or MC4 compatible
Temperature Coefficient(Pmax) -0.420% / ℃
Temperature Coefficient(Voc) -0.346%/ ℃
Temperature Coefficient(Isc) 0.065%/ ℃
Norminal Operating Cell Temperature 45.3±2℃
