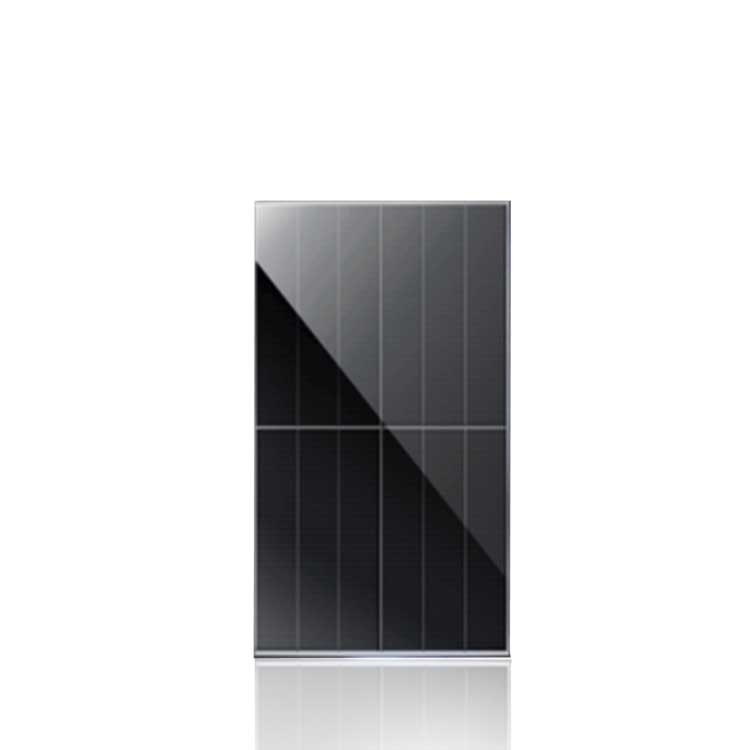

Flexible Mono City Solar Panel 350w 355w 360w For Solar Power System

Flexible Mono City Solar Panel 350w 355w 360w For Solar Power System
Flexible Mono City Solar Panel 350w 355w 360w For Solar Power System

Large Image :  Flexible Mono City Solar Panel 350w 355w 360w For Solar Power System

Product Details:
Place of Origin: Guangdong,China
Brand Name: FUSOLI
Certification: CE/IEC/ISO/SAAR/PIB/CEC
Model Number: JT350-360W 24M
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.25/W
Packaging Details: Carton packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 15000 pieces per month

Flexible Mono City Solar Panel 350w 355w 360w For Solar Power System

Product Name: Mono Cell Solar Panel Cell Efficiency: 20.52%
Application: Solar Power System Line Property: 25 Years
Type: PERC Max. System: 1000W
Max. Voltage: 39.17V Operating Temperature: -40°C-80°C
High Light:

360w city solar panel


355w city solar panel


350w flexible solar panel

solar city Mono Cell Solar Panel 345w 350w 355w 360w solar system for solar roof


1. On company introduction
we have got some related certificattions in this field and have got  honors on CQC certificate of National Electrical Applicance, ISO 9001 international quality system certification. With more than 10000 square meters and large production equipment, we can ensure stable production with high quality. We are an excellent and honest company on solar PV engineering  in China.

2. Primary Advantages on Production

① Technology on Multi Busbar

Effective and reliable power output are improved by good light utilization and capabilities on current collection


② Adaptability to harsh environment
Having passed salt spray and high ammonia corrosion tests authorized by authorized organization


③ Better resistance to hot spots
By optimizing the current design and working  current, a better temperature coefficient and resistance to hot spots come to a realization


④ Load capacity
The whole component has been passed tests on wind
 load of 2400pa and snow load of 5400pa


⑤ Anti-PID guarantee
By battery technology optimozation and material contorol to help to minimize the attenuation probability caused by PID phenomenon


⑥ Industry-leading linear warranty
With good perfomance of the whole system, it can ensure 12 years of process material warranty and 25 years of line property


3.one-stop multi-scenario solutions plan

By leading control system professional full-process management, our team can provide environmentally friendly multi-scenario solutions,by project consulting, procurement, debugging, design, installation, operation and maintenance


4. High efficiency & high power generation

We adopt PERC battery with a back passivation layer and laser slotting process on the basis of conventional battery technology, which can  significantly improves battery efficiency


5. Project cases
Relying on industry-leading product quality, standardized technical team and standardized design system, our household solutions bring considerable economic benefits while giving the roof beautiful appearance, environmental protection, and technology


6. Friendly photovoltaic solution
The friendly photovoltaic power station refers to power stations that are grid-friendly, environment-friendly, system-friendly, and profit-friendly. And we can provide support on such this plan


7. Data sheet parameters

Model Type JT345-24M JT350-24M JT355-24M JT360-24M
Nominal Maximum Power(Pmax) 345W 350W 355W 360W
Optimum Operating Voltage(Vmp) 39.02V 39.17V


Optimum Operating Current(Imp) 8.85A 8.94A 9.01A 9.06A
Open Circuit Voltage(Voc) 46.44V 46.51V 46.80V 47.16V
Short Circuit Current(Isc) 9.41A 9.58A 9.63A 9.67A
Module Effciency 17.87% 18.10% 18.35% 18.60%
Cell Effciency 19.80% 20.00% 20.20% 20.50%
Power Tolerance 0 to +3%
Maximum Sytem Voltage DC 1000V
Operating Temperature -40℃~+85℃
Maximum Series Fuse Rating 20A
Cell Type mono 156mmx156mm
Cell Arrangement 72 cells in series
Dimensions 1950x990x40mm
Weight 22.86kg(approx)
Frame Cover 3.2mm temper glass
Frame Material Anodized aluminium alloy
J-Box IP67,3 diodes
Cable 4mm(IEC) / 12AWG (UL),1000mm(650mm is optional)
Connectors MC4 or MC4 compatible
Temperature Coefficient(Pmax) -0.420% / ℃
Temperature Coefficient(Voc) -0.346%/ ℃
Temperature Coefficient(Isc) 0.065%/ ℃
Norminal Operating Cell Temperature 45.3±2℃
