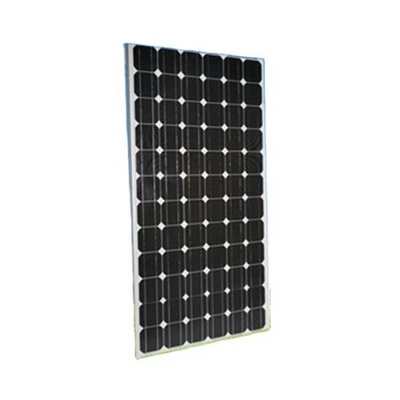

72 Cell 350w Mono Poly Solar Panel City Power System 39.17V 8.94A

72 Cell 350w Mono Poly Solar Panel City Power System 39.17V 8.94A
72 Cell 350w Mono Poly Solar Panel City Power System 39.17V 8.94A

Large Image :  72 Cell 350w Mono Poly Solar Panel City Power System 39.17V 8.94A

Product Details:
Place of Origin: Guangdong,China
Brand Name: FUSOLI
Certification: CE/IEC/ISO/SAAR/PIB/CEC
Model Number: JT350-360W 24M
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.25/Pack
Packaging Details: Carton packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 15000 pieces per month

72 Cell 350w Mono Poly Solar Panel City Power System 39.17V 8.94A

Product Name: Mono Cell Solar Panel Cell Efficiency: 20.52%
Application: Solar Power System Line Property: 25 Years
Type: PERC Max. System: 1000W
Max. Voltage: 39.17V Operating Temperature: -40°C-80°C
High Light:

39.17V Mono Poly Solar Panel


8.94A Mono Poly Solar Panel


72 cell 350 watt solar panels

solar city Mono Cell Solar Panel 345w 350w 355w 360w solar system for solar roof


1. On company introduction
we have got some related certificattions in this field and have got  honors on CQC certificate of National Electrical Applicance, ISO 9001 international quality system certification. With more than 10000 square meters and large production equipment, we can ensure stable production with high quality. We are an excellent and honest company on solar PV engineering  in China.

2. Primary Advantages on Production

① Technology on Multi Busbar

Effective and reliable power output are improved by good light utilization and capabilities on current collection


② Adaptability to harsh environment
Having passed salt spray and high ammonia corrosion tests authorized by authorized organization


③ Better resistance to hot spots
By optimizing the current design and working  current, a better temperature coefficient and resistance to hot spots come to a realization


④ Load capacity
The whole component has been passed tests on wind
 load of 2400pa and snow load of 5400pa


⑤ Anti-PID guarantee
By battery technology optimozation and material contorol to help to minimize the attenuation probability caused by PID phenomenon


⑥ Industry-leading linear warranty
With good perfomance of the whole system, it can ensure 12 years of process material warranty and 25 years of line property


3.High efficiency & high power generation

PERC battery adds a back passivation layer and laser slotting process on the basis of conventional battery technology, which significantly improves battery efficiency


4.one-stop multi-scenario solutions plan

we have the leading professional full-process management and control system, and our team can provide customers with environmentally friendly multi-scenario solutions, through project consulting, design, installation, procurement, debugging, operation and maintenance


5. High conversion rate components
The use of a variety of advanced technologies to increase the power of the module is suitable for high conversion efficiency modules for various scenarios. The double-sided modules have been globally verified, high double-sided gain and high quality to ensure the long-term reliability of the modules.

6. Data sheet parameters

Model Type JT345-24M JT350-24M JT355-24M JT360-24M
Nominal Maximum Power(Pmax) 345W 350W 355W 360W
Optimum Operating Voltage(Vmp) 39.02V 39.17V


Optimum Operating Current(Imp) 8.85A 8.94A 9.01A 9.06A
Open Circuit Voltage(Voc) 46.44V 46.51V 46.80V 47.16V
Short Circuit Current(Isc) 9.41A 9.58A 9.63A 9.67A
Module Effciency 17.87% 18.10% 18.35% 18.60%
Cell Effciency 19.80% 20.00% 20.20% 20.50%
Power Tolerance 0 to +3%
Maximum Sytem Voltage DC 1000V
Operating Temperature -40℃~+85℃
Maximum Series Fuse Rating 20A
Cell Type mono 156mmx156mm
Cell Arrangement 72 cells in series
Dimensions 1950x990x40mm
Weight 22.86kg(approx)
Frame Cover 3.2mm temper glass
Frame Material Anodized aluminium alloy
J-Box IP67,3 diodes
Cable 4mm(IEC) / 12AWG (UL),1000mm(650mm is optional)
Connectors MC4 or MC4 compatible
Temperature Coefficient(Pmax) -0.420% / ℃
Temperature Coefficient(Voc) -0.346%/ ℃
Temperature Coefficient(Isc) 0.065%/ ℃
Norminal Operating Cell Temperature 45.3±2℃
