300w 60 cell 200W Mono Solar Panel 190W 195W High Power PERC

China Huagong Langic Digital Energy Technology (Guangdong) Co., Ltd certification
Customer Reviews
good quality

—— Mike

I'm Online Chat Now

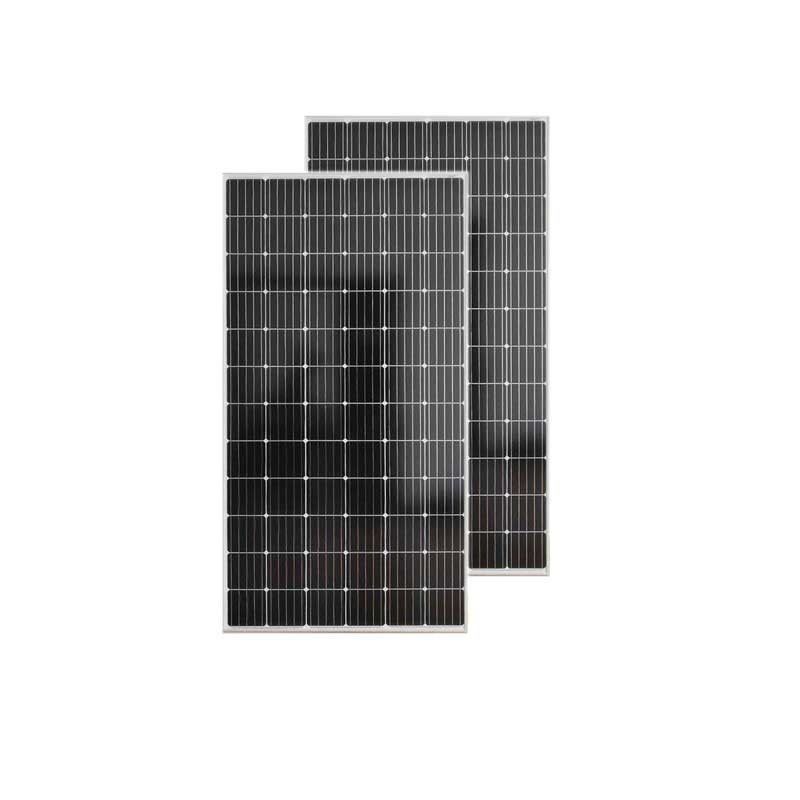

300w 60 cell 200W Mono Solar Panel 190W 195W High Power PERC

300w 60 cell 200W Mono Solar Panel 190W 195W High Power PERC
300w 60 cell 200W Mono Solar Panel 190W 195W High Power PERC

Large Image :  300w 60 cell 200W Mono Solar Panel 190W 195W High Power PERC

Product Details:
Place of Origin: Guangdong,China
Brand Name: FUSOLI
Certification: CE/IEC/ISO/SAAR/PIB/CEC
Model Number: JT190 24M-210 24M
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.25/Pack
Packaging Details: Carton packing
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 10000 pieces per month

300w 60 cell 200W Mono Solar Panel 190W 195W High Power PERC

Cell Efficiency: 17.45~20% Warranty: 12 Years
Max. System Voltage: DC1000W Max. Voltage: 36.10V-38.5V
Max.power: 190-210W Weightight: 15.9Kg
Line Property: 25 Years Factory Location: Guangdong
Type: PERC Supply Ability: 80000000 Watt/Watts Per Month
High Light:

200W Mono Solar Panel


Solar Panel 190W


300w 60 cell solar panel

solar panels for home Mono Cell Solar Panel 190W 195W 200W 205W 210W high power
1. On production qualifications
With more than 10000 square meters and large production equipment and have successfully obtained many honors such as CQC certificate of National Electrical Applicance, ISO 9001 international quality system certificate, excellent and honest enterprise of China's solar PV engineering and 3A credit enterprise of China.

2. Main Production Advantages

① Multi busbar technology

Can effectively improve power output and reliability by better light utilization and current collection capabilities


② Adaptability to harsh environments
Having passed salt spray and high ammonia corrosion tests by the third-party certification organizations


③ Better resistance to hot spots
A better temperature coefficient and resistance to hot spots can be obtained by optimizing the current design and working condition current


④ Load capacity
The whole component system has been passed the certification of  2400pa wind load and 5400pa snow load


⑤ Anti-PID guarantee
Minimize the attenuation probability caused by PID phenomenon through battery perduction technology optimozation and material contorol


⑥ Industry-leading linear warranty
12 years of process material warranty and
25 years of line property



3. On Projects Cases

  • Suitable for ground power stations and large-scale industrial and commercial projects
  • A variety of advanced technologies to improve component power and efficiency
  • High bifacial gain and high quality guarantee the long-term reliability of the bifacial module

4. Shining points

  • commercial and centralized ground power plants
  • a full range of component products match market demand
  • Specially designed for industrial

5. Packing

  • 5 or 7-ply corrugated boxes, reinforced wooden cases with pallets
  • Custom made wooden cases are optional
  • Protect your products in all aspects during transportation
  • Ensure safety of all solar modules

6. As for OEM


OEM/ODM can provide standard silver waterproof label with your logo, customized carton with logo yourself


7. Data Sheet Specification

Model Type JT190-24M JT195-24M JT200-24M JT205-24M JT210-24M
Nominal Maximum Power(Pmax) 190W 195W 200W 205W 210W
Optimum Operating Vo;tage(Vmp) 36.10V 36.60V 37.66V 38.30V 38.50V
Optimum Operating Current(Imp) 5.27A 5.32A 5.32A 5.35A 5.45A
Open Circuit Voltage(Voc) 43.37V 43.84V 44.93V 45.57V 45.73V
Short Circuit Current(Isc) 5.77A 5.83A 5.84A 5.88A 5.93A
Module Effciency 14.88% 15.27% 15.66% 16.05% 16.45%
Cell Effciency 17.25% 17.60% 18.00% 18.60% 19.00%
Power Tolerance 0 to +3%
Maximum Sytem Voltage DC 1000V
Operating Temperature -40℃~+85℃
Maximum Series Fuse Rating 15A
Cell Type mono 125mmx125mm
Cell Arrangement 72 cells in series
Dimensions 1480x990x44mm
Weight 15.6kg(approx)
Frame Cover 3.2mm temper glass
Frame Material Anodized aluminium alloy
J-Box IP67,3 diodes
Cable 4mm(IEC) / 12AWG (UL),1000mm(650mm is optional)
Connectors MC4 or MC4 compatible
Temperature Coefficient(Pmax) -0.420% / ℃
Temperature Coefficient(Voc) -0.336%/ ℃
Temperature Coefficient(Isc) 0.042%/ ℃
Norminal Operating Cell Temperature 45.3±2℃


300w 60 cell 200W Mono Solar Panel 190W 195W High Power PERC 0
