Product Details:
|
| Material: | Lithium Battery | Certification: | UN38.3/CE/IEC62619 |
|---|---|---|---|
| Application: | House / Car / Ship / Electric Power / Solar Panel | Charge Voltage: | 14.4V |
| Discharge Current: | 300AH | Nominal Voltage: | 12.8V |
| Protection: | Smart BMS | DOD: | 100% |
| Warranty: | 1 Years, 1year | Weight: | 29kg |
| High Light: | 12v 300ah lithium battery,48v 300ah lithium ion battery,300ah lithium battery 12v |
||

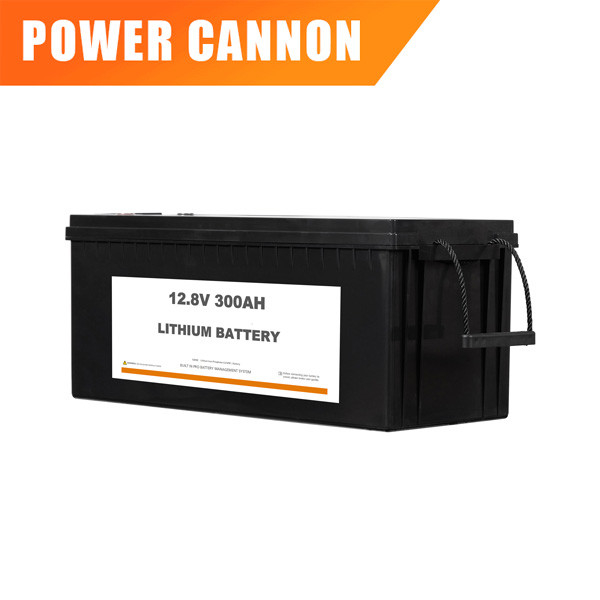

Solar Backup Energy 12V 300ah Lifepo4 Lithium Ion Solar Battery Pack
LifePO4 battery
Long Cycle life
Light Weight
Low Self Discharge
Environmental
Our experienced team is able to provide customized solutions
|
parameter
|
Power porter
|
|
Battery parameters
|
|
|
Nominal Voltage
|
12.8V
|
|
Nominal Energy
|
3840Wh
|
|
Discharge voltage
|
10V
|
|
Charge Voltage
|
14.4V
|
|
Con. charging current
|
150A
|
|
Max. charging current
|
150A
|
|
Con. discharge current
|
200A
|
|
Max. discharge current
|
200
|
|
Con. discharge DC power
|
1920W
|
|
Max. discharge DC power
|
2560W
|
|
Operating temperature
|
Charge:0~45℃ Discharge:-20~55℃
|
|
General Data
|
|
|
Scalability
|
Communication, Bluetooth, heating, display
|
|
DOD
|
100%
|
|
Communication
|
NON
|
|
Cycle Life
|
2500cycles 0.5c 80% 100%DOD 25℃
|
|
IP Grade
|
IP65
|
|
Installation
|
Same as lead-acid battery
|
|
Dimension
|
520*240*222mm
|
|
Weight
|
29Kg
|
|
Warranty
|
One year
|
|
UN38.3 IEC62619 CE
|
|
|
* When the temperature ＜ 0℃ or ＞45℃,the product performance is limited
|
|
