Product Details:
|
| Material: | Lithium Battery | Certification: | UN38.3/CE/IEC62619 |
|---|---|---|---|
| Application: | House / Car / Ship / Electric Power / Solar Panel | Charge Voltage: | 14.4V |
| Discharge Current: | 200AH | Nominal Voltage: | 12.8V |
| Protection: | Smart BMS | DOD: | 100% |
| Warranty: | 1 Years, 1year | Weight: | 21kg |
| High Light: | 200ah solar generator battery,BMS solar generator battery,LFP Solar battery |
||

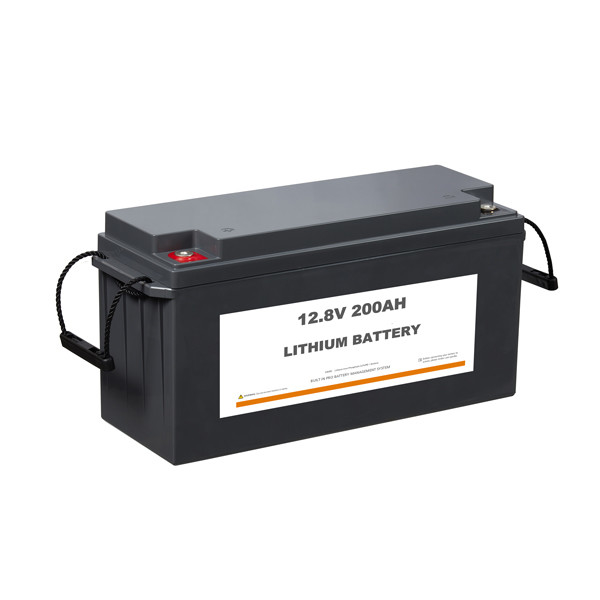

Agriculture Workshop Solar Generator 12V LFP Lithium Solar Batteries Pack 200ah
Communities with multiple distributed energy resources to share energy with a microgrid. This type of interconnected “virtual power plant” is ideal for areas with no grid access or communities that want to disconnect from the network.
|
parameter
|
Power porter
|
|
Battery parameters
|
|
|
Nominal Voltage
|
12.8V
|
|
Nominal Energy
|
2560Wh
|
|
Discharge voltage
|
10V
|
|
Charge Voltage
|
14.4V
|
|
Con. charging current
|
100A
|
|
Max. charging current
|
100A
|
|
Con. discharge current
|
200A
|
|
Max. discharge current
|
200A
|
|
Con. discharge DC power
|
1280W
|
|
Max. discharge DC power
|
2560W
|
|
Operating temperature
|
Charge:0~45℃ Discharge:-20~55℃
|
|
General Data
|
|
|
Scalability
|
Communication, Bluetooth, heating, display
|
|
DOD
|
100%
|
|
Communication
|
NON
|
|
Cycle Life
|
2500cycles 0.5c 80% 100%DOD 25℃
|
|
IP Grade
|
IP65
|
|
Installation
|
Same as lead-acid battery
|
|
Dimension
|
483*170*240mm
|
|
Weight
|
21Kg
|
|
Warranty
|
One year
|
|
UN38.3 IEC62619 CE
|
|
|
* When the temperature ＜ 0℃ or ＞45℃,the product performance is limited
|
|
