Product Details:
|
| Material: | Lithium Battery | Certification: | UN38.3/CE/IEC62619 |
|---|---|---|---|
| Application: | House / Car / Ship / Electric Power / Solar Panel | Charge Voltage: | 14.4V |
| Discharge Current: | 150AH | Nominal Voltage: | 12.8V |
| Protection: | Smart BMS | DOD: | 100% |
| Warranty: | 1 Years, 1year | Weight: | 14kg |
| High Light: | 150ah deep cycle battery,150ah lithium battery,100ah 12v lifepo4 deep cycle battery |
||

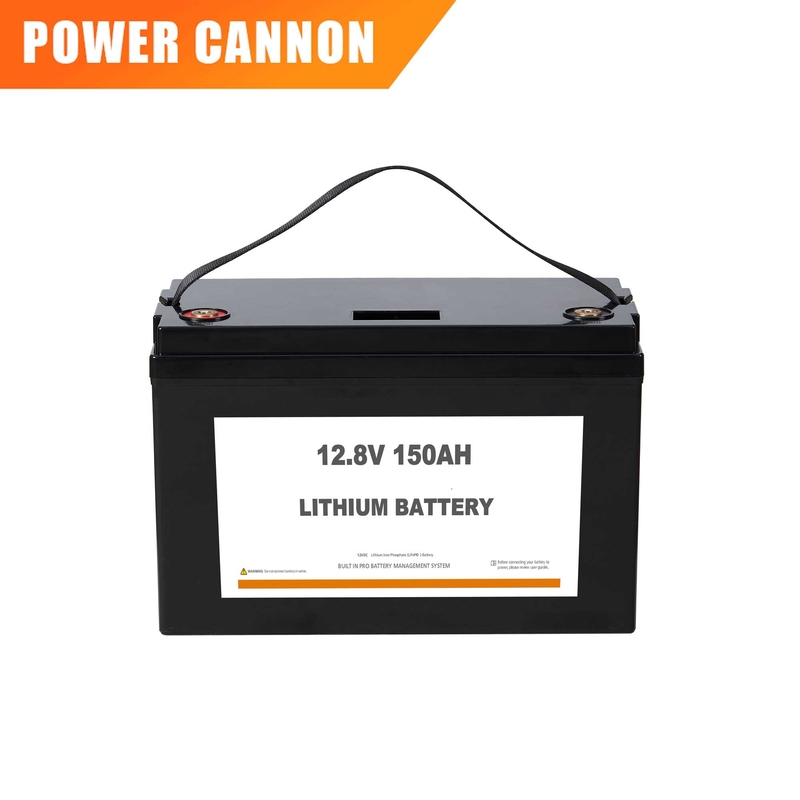

Solar Replacement 12V Lifepo4 Lithium Ion Solar Battery Pack 150ah
We have delivered hundreds of projects covering most of the commercial applications such as demand charge management, PV self-consumption and back-up power, fuel saving solutions, micro-grid and off-grid options.
|
parameter
|
Power porter
|
|
Battery parameters
|
|
|
Nominal Voltage
|
12.8V
|
|
Nominal Energy
|
1920Wh
|
|
Discharge voltage
|
10V
|
|
Charge Voltage
|
14.4V
|
|
Con. charging current
|
100A
|
|
Max. charging current
|
100A
|
|
Con. discharge current
|
150A
|
|
Max. discharge current
|
150A
|
|
Con. discharge DC power
|
1280W
|
|
Max. discharge DC power
|
1920W
|
|
Operating temperature
|
Charge:0~45℃ Discharge:-20~55℃
|
|
General Data
|
|
|
Scalability
|
Communication, Bluetooth, heating, display
|
|
DOD
|
100%
|
|
Communication
|
NON
|
|
Cycle Life
|
2500cycles 0.5c 80% 100%DOD 25℃
|
|
IP Grade
|
IP65
|
|
Installation
|
Same as lead-acid battery
|
|
Dimension
|
328*172*230mm
|
|
Weight
|
14Kg
|
|
Warranty
|
One year
|
|
UN38.3 IEC62619 CE
|
|
|
* When the temperature ＜ 0℃ or ＞45℃,the product performance is limited
|
|
