Product Details:
|

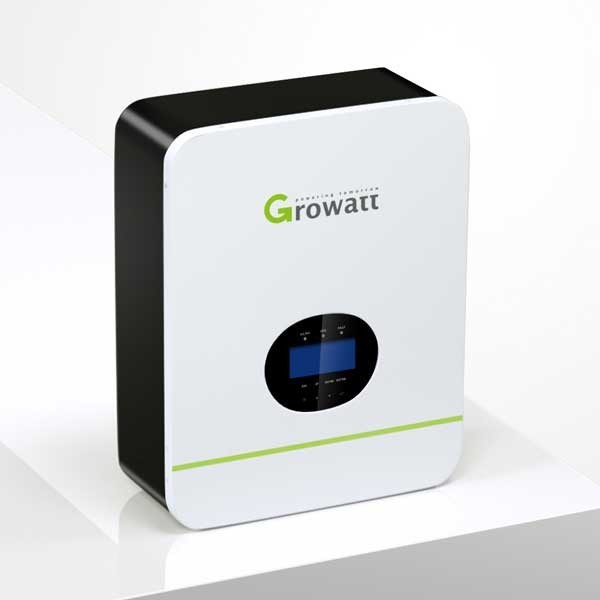

| Product Name: | Growatt SPF 3000TL HVM-24 | Certificate: | CE ISO SAA TUV |
|---|---|---|---|
| Output Frequency: | 50/60hz | Application: | Off-grid Solar System |
| Maximum Efficiency: | 93% | Output Voltage: | 380/400V |
| Input Voltage: | 30VDC ~ 80VDC | Surge Power: | 6000VA |
| Warranty: | 5 Years | Weight: | 14kg |
| High Light: | 3000TL-24 Growatt Off Grid Inverter,HVM Growatt Off Grid Inverter,SAA 5 kw solar panel system |
||
|
DATASHEET
|
SPF 3000TL HVM
|
|
|
Battery voltage
|
24VDC
|
|
|
INVERTER OUTPUT
|
||
|
RATED POWER
|
3000VA/ 3000W
|
|
|
Parallel Capability
|
No
|
|
|
AC Voltage Regulation
(Battery Mode) |
230VAC ± 5%
@ 50/60Hz |
|
|
Surge Power
|
6000VA
|
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10 ms (For Personal Computers); 20 ms (For Home Appliances)
|
|
|
SOLAR CHARGER
|
||
|
Maximum PV Array Power
|
1500W
|
|
|
MPPT Range @ Operating Voltage
|
30VDC ~ 80VDC
|
|
|
Maximum PV Array Open
Circuit Voltage |
102VDC
|
|
|
Maximum Solar Charge Current
|
50A
|
|
|
Maximum Efficiency
|
98%
|
|
|
Standby Power Consumption
|
2 W
|
|
|
AC CHARGER
|
||
|
Maximum AC Charge Current
|
30A
|
|
|
AC Input Voltage
|
230 VAC
|
|
|
Selectable Voltage Rang
|
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
|
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
|
PHYSICAL
|
||
|
Dimension (D/W/H) in mm
|
130/315/400
|
|
|
Net Weight (kgs)
|
8.5
|
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative
Humidity(Non-condensing) |
|
|
Operating Temperature
|
0°C - 55°C
|
|
|
Storage Temperature
|
-15°C - 60°C
|
|
