Product Details:
|
| Nominal Voltage: | 51.2V | Rated Capacity: | 100Ah (0.2C/25°C) (Min:98Ah) |
|---|---|---|---|
| Discharge Current(Max.): | 100A | Weight: | 48kg |
| Dimensions: | 442*400*225mm | Terminal Stud: | 2P |
| DOD: | 90% | Warranty: | 3years |
| High Light: | 100A Deep Cycle Solar Battery,UN38.3 Deep Cycle Lithium Ion Battery,51.2V 100ah deep cycle gel battery |
||

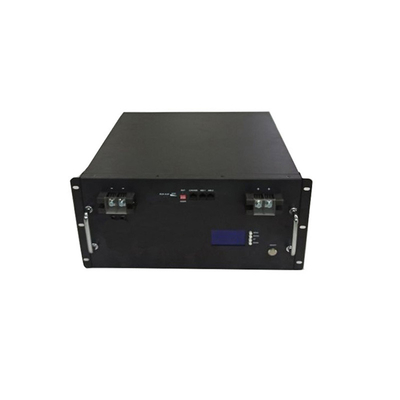

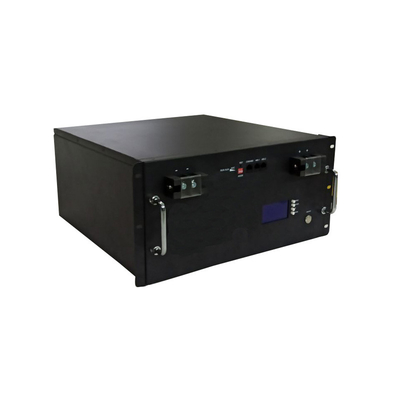

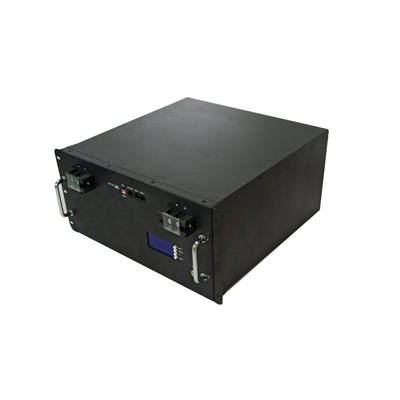

51.2V100Ah Deep Cycle Lithium Ion Battery For Energy Storage
1. Smart BMS management
Integrated R&D platform of basic materials, cells, BMS and overall system
2. The main advantages of power porter 10kwh
①Higher effciency
②Higher energy density
③Easy installation method
④Using catl item lithium iron phosphate cell
3. Basic parameters
|
Technical Parameters
|
|||
| NO | Item | Parameters | |
| 1.Performance | Type | LiFePO4 battery | |
| Nominal voltage | 51.2V | ||
| Rated capacity | 100Ah(0.2C/25℃)(Min:98Ah) | ||
| Operating voltage range | 40V~58.4V(Typical:59.2V) | ||
| Charging voltage | 58.4V±1.0V | ||
| Dis charge cut-off voltage | 40V±2.0V | ||
| Charging current(Max) | 30A | ||
| Discharge current(Max) | 100A | ||
| Dimensions | Length | 442mm | |
| Width | 400mm | ||
| Heigth | 225mm | ||
| Weight | About 48KG | ||
| Shell | Metal/Black/White | ||
| 2.Function | Parallel | Support(difference of Pack's | |
| Terminal stud | 2P | ||
| Alarm&potection | Over Voltage,Under Voltage | ||
|
3.Working Condition |
Cooling mode | Automatic cold and hot | |
| Altitude |
≤4000m
|
||
| Humidity | 15%~75% | ||
|
Operating temperature |
Charge | 0℃~50℃ | |
| Dischage | -10℃~60℃ | ||
| Recommended operating temperature | Charge | 15℃~40℃ | |
| Dischage | 15℃~40℃ | ||
| Storage | -20℃~45℃ | ||
| Application Field:Telecommunication,Solar energy storage,Household energy storage etc. | |||
