Product Details:
|
| Pmax[W: | 475w | Vmp[V: | 43.78V |
|---|---|---|---|
| Lmp[A: | 10.85A | Voc[V: | 51.25V |
| Pmax [WI: | 347.7W | Vmp [VI: | 39.87V |
| SIZE: | 2094*1038*35 Mm | Weight: | 23.3kg |
| High Light: | Half Cell Monocrystalline PV,440W Solar Panel 144 Cells |
||

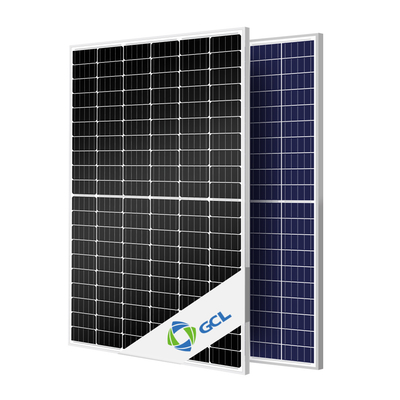

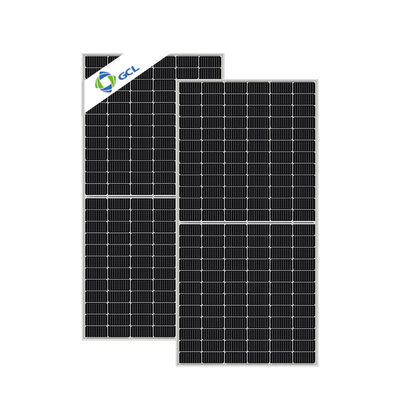

GCL Solar Panel 440W 445W 450W 455W 460W 465W 470W 475W 144cells Half Cell Monocrystalline PV High Output
| STC | ||||||||
| Pmax(W) | 440 | 445 | 450 | 455 | 460 | 465 | 470 | 475 |
| Vmp(V) | 41.4 | 41.75 | 42.1 | 42.41 | 42.75 | 43.1 | 43.44 | 43.78 |
| lmp(A) | 10.63 | 10.66 | 10.69 | 10.73 | 10.76 | 10.79 | 10.82 | 10.85 |
| Voc(V) | 49.25 | 49.55 | 49.84 | 40.1 | 50.39 | 50.68 | 50.96 | 51.25 |
| lsc(A) | 11.28 | 11.31 | 11.34 | 11.37 | 11.40 | 11.43 | 11.47 | 11.50 |
| efficiency of the component | 20.2 | 20.5 | 20.7 | 20.9 | 21.2 | 21.4 | 21.6 | 21.9 |
| The power of tolerance | 0-+5W | |||||||
| NMOT | ||||||||
| Pmax(W) | 321.0 | 324.8 | 328.6 | 332.4 | 336.2 | 340.0 | 343.9 | 347.7 |
| Vmp(V) | 37.84 | 38.13 | 38.42 | 38.71 | 39.00 | 39.29 | 39.58 | 39.87 |
| lmp(A) | 8.48 | 8.52 | 8.55 | 8.59 | 8.62 | 8.65 | 8.69 | 8.72 |
| Voc(V) | 45.56 | 45.82 | 46.08 | 46.34 | 46.60 | 46.86 | 47.12 | 47.38 |
| lsc(A) | 9.12 | 9.14 | 9.17 | 9.19 | 9.22 | 9.25 | 9.27 | 9.30 |
| Structure performance | ||||||||
| Battery sheet arrangement | 144 pieces (6 x24) | |||||||
| Component size | 2094*1038*35 mm | |||||||
| weight | 23.3kg | |||||||
| glass | 3.2mm high permeability, anti reflection coated toughened glass | |||||||
| The back | white | |||||||
| A border | Anodized film aluminum alloy | |||||||
| wiring | Protection level IP68 | |||||||
| Box of cable | 4 mm square, 280 mm positive wire, 280 mm negative wire | |||||||
| Number of diodes | 3 | |||||||
| Wind/snow pressure | 2400/5400 mpa | |||||||
| The connector | The MC is compatible with | |||||||
