Product Details:
|
| Product Name: | 9-Kwh Off Grid Electrical System | Solar Panel: | Mono Silicon 400w |
|---|---|---|---|
| Application: | Home, Industrial, Commercial | Energy Storage: | NRuiT Powerporter 9-kwh |
| Warranty: | 10Years | Mounting Type: | Roof Mounting,Ground Mounting, Carport Mounting |
| Pre-sales Project Design: | Y | Capacity: | 176-Ah |
| Inverter: | Growatt 5000 TL-HVM | Battery Weight: | 86Kg |
| High Light: | 9Kwh Solar Electric System,176Ah Solar Electric System,86Kg Solar Off Grid Systems |
||

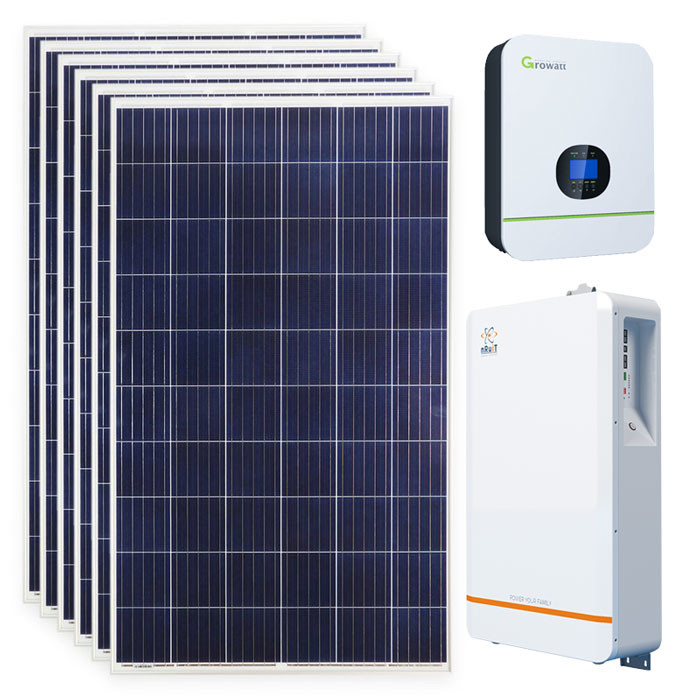

Solar Electric System Solar Off Grid Systems A set Of 9-kwh For Home
In theory Photovoltaic power generation technology can be used in any situation where power supply is required. Up to the spacecraft, down to the home power supply. Large to megawatt power stations, small as a toy. Photovoltaic power can be everywhere. At present solar off grid systems are mainly used in three aspects:
| Battery : Powerporter 9kwh | |
| Nominal Energy | 9Kwh |
| Nominal Voltage | 51.2V |
| Capacity | 176Ah |
| Size | 830x460x200 mm |
| Weight | 86Kg |
| Battery cell | Lithium ion battery cell (CATL ) |
| Cycle life | 6000+ (Promise) |
| Installation | Wall or floor mount |
| Inverter : Growatt 5000TL HVM | |
| Battery voltage | 48 VDC |
| Rated power | 5000W |
| Output voltage range | 230VAC±5%@50/60Hz |
| Mppt voltage range |
60VDC~115VDC
|
| Size | 350 x 455 x 130 mm |
| Weight | 11.5kg |
| Solar panel : JT400w-24M | |
| Pmax | 400w |
| Vmp | 38.23V |
| Imp | 8.65A |
| Size | 1950x990x40mm |
| Weight | 22.86Kg |
| Cell Type | Mono 156mm x 156mm |
| Cell Arrangement | 72 cell in series |
| PV component | |
| Kabel DC & MC4 Konektor | |
| PV Cirrcuit Breaker | |
| Palang Bagian | 4mm2-6mm2-Opsional |
| Nilai Tegangan | 600VDC(UL)/1000VDC(TUV) |
| PV Shelf Material | Al 6005-T5 |
| Combiner box | |
| PV Fuse | |
| PV Cirrcuit Breaker | |
| PV SPD | Surge Protective Device |
| Genset output | |
| AC SPD | |
| ATS | Automatic Transfer Switch |
| RCBO | Residual current circuit breaker with over current protection |
| Inverter Output | |
| ESS-BT9-PV5-INV5 | ESS-BT9-PV10-INV10 | ESS-BT9-PV10-INV10 | ESS-BT9-PV15-INV15 | |
|
Battery: powerporter 9kwh
|
1 unit
9kwh / 48V / 176ah
|
2 unit
18kwh / 48V / 352ah
|
2 unit 18kwh / 48V / 352ah |
2 unit 18kwh / 48V / 352ah |
|
Solar panel: JT330w-24M
|
12pcs (5kw)
400w/pcs
|
12 pcs (10kw)
400w/pcs
|
25 pcs (10kw) 400w/pcs |
25 pcs (15kw) 400w/pcs |
|
Inverter: Growatt 5000TL
|
1 unit
Growatt 5000TL-HVM
|
2 unit
Growatt 5000TL-HVM
|
2 unit Growatt 5000TL-HVM |
3 unit Growatt 5000TL-HVM |
| System max. AC output power | 5kw | 10kw | 10kw | 15kw |
| Combiner box | 1 set | 1 set | 1 set | 1 set |
| Kabel DC 4mm2 | 200 meters | 200 meters | 200 meters | 300 meters |
| PV component | 1 set | 1 set | 1 set | 1 set |
| Contact customer service and support customization | ||||
