Product Details:
|
| Specification: | 800 Mmx525mmx1385mm | Rated Voltage: | 460.8V |
|---|---|---|---|
| Rated Capacity: | 200AH | Weight: | 950 Kg |
| Shell Color: | White | Cycle Life: | 1500 Times |
| Highlight: | 460.8V Solar Electric System,200AH Solar Electric System,100KWH UPS Power Battery |
||

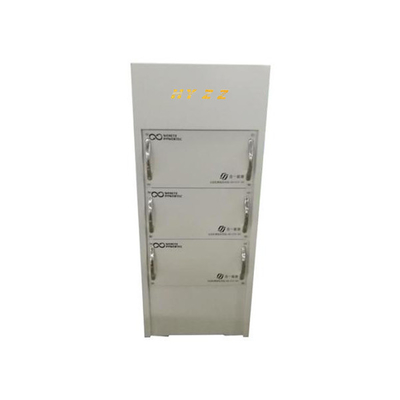

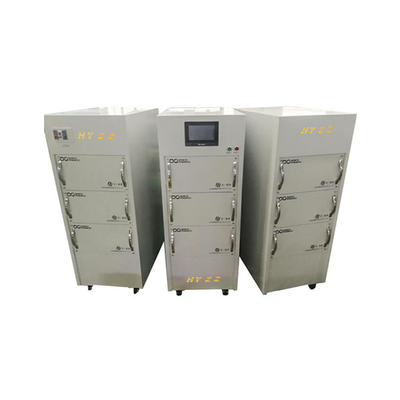

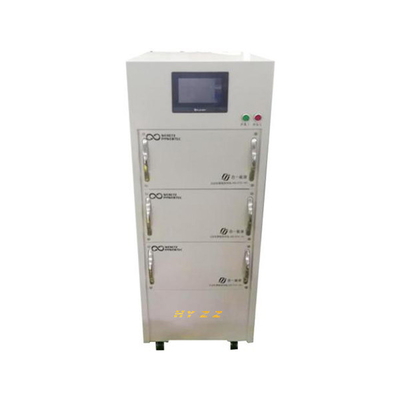

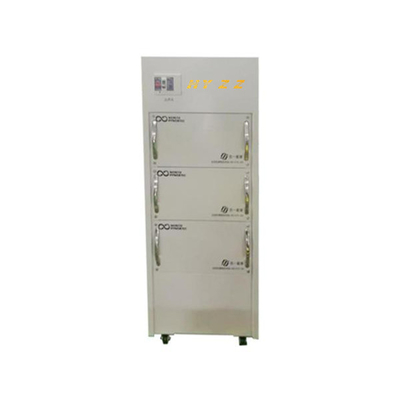

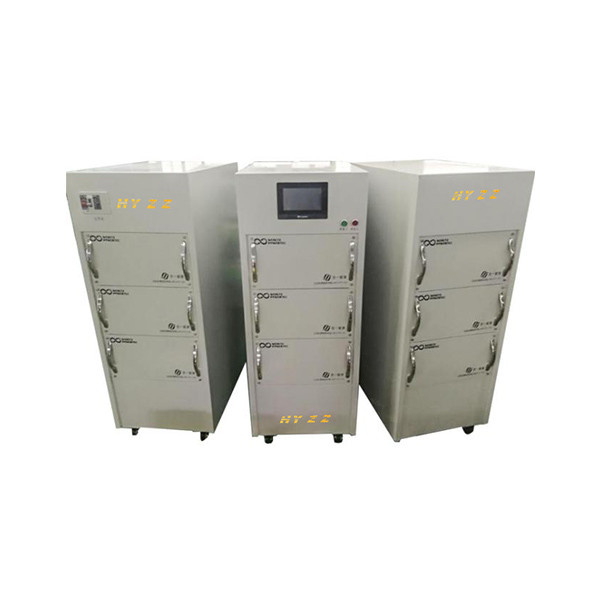

Hy00027 - customized UPS UPS - production UPS
model:460.8V/200AH(100KWH)
Specifications:800mmX525mmx1385mm(单机柜)
parameter:Operating temperature: - 20 ℃ ~ 60 ℃, lithium iron phosphate, battery cluster operating voltage (V) 360-525.6, 144 voltage detection points, 8 temperature sensors, can2 0b communication, s0c8%, continuous working current 100A, instantaneous maximum current 180A, charging current 50a, plastic sprayed ral9003 white, cold rolled sheet, flame retardant cable, total weight 950kg, cycle life 80% DOD ≥ 2000 times
)application:Intelligent robot, power grid, engineering equipment, power
Safe, reliable, and well developed electronics to meet international standards and requirements.
Designs tailored to meet space and energy density constraints.
Large off the shelf storage for peak shaving, reserve or loading leveling.
